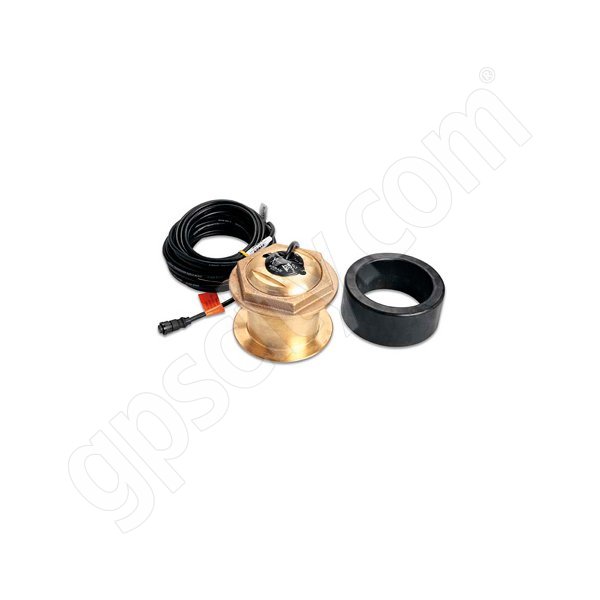

The 1kW, B164 flush-mount, tilted element transducer is perfect for fast, trailered, tournament, sportfishing vessels that cannot install a thru-hull with a High-Performance Fairing. The low-profile bronze housing protrudes less than 6.35 mm (0.25”) outside your hull and can sit on trailer rollers and bunks with no damage at all. The ceramic elements are tilted inside the housing, which compensates for your boats deadrise. This aims the beam straight toward the bottom, resulting in stronger echo returns and more accurate depth readings. The B164 provides excellent performance at speeds up to 30 knots (34 MPH).
Fishing Applications
- Inshore and blue-water trolling
- Deep-water bottom and structure fishing up to 500 m (1,640’)
- The versatile 1 kW transducer for all types of fishing
Features
- Fixed 20° tilted version for 16° to 24° hull deadrise
- 1 kW power, 50/200 kHz multiple-ceramics
- Engineered for center-console and trailered boats
- Low-profile protrusion below the hull
- No affect on your boats running performance
- Interfaces to any 600 W or 1 kW echosounder
- Bronze or stainless steel housings available
- Depth and new fast-response water-temperature sensor
- Boat Size: 8 m to 11 m (25’ to 35’)
Fits all Garmin 50/200 units with 6-pin connector:
Garmin GSD 21, GSD 22, GSD 20, 5000 Series, 4000 Series, 5 x 5 Series, 500 Series, 400 Series, Fishfinder 400C, Fishfinder 90, Fishfinder 140, Fishfinder 160C, Fishfinder 340C, Fishfinder 400C, GPSMAP 420S, 430S, 440S, 450S, 520S, 530S, 540S, 550S, 525S, 535S, 545S, 555S, Fishfinder 100 Blue, Fishfinder 160 Blue, Fishfinder 240 Blue, Fishfinder 250C, Fishfinder 320C, GPSMAP 178 Sounder, GPSMAP 178C Sounder, GPSMAP 188 Sounder, GPSMAP 188C Sounder, GPSMAP 198C Sounder, GPSMAP 235 Sounder, GPSMAP 238 Sounder, 172, 172C, 182, 182C, 192C, 232, 276C, 296C, 2006, 2006C, 2010, 2010C, 3006C, 3010C, 3205, 3206, 3210, 4010, 4012, 4208, 4212, 5008, 5012, 5015, 5208, 5215
|
