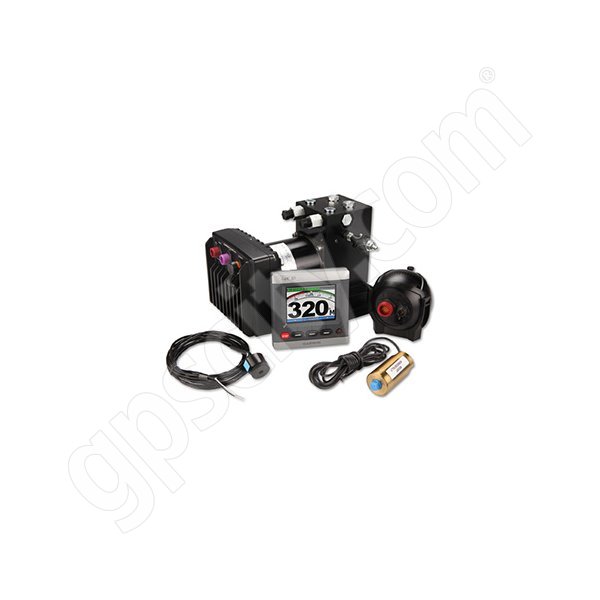

The GHP 20 Marine Autopilot with SmartPump Technology is a tremendous advancement in hydraulic steering systems. One pump size handles most boat sizes and applications.
Experience the One Pump Solution
The GHP 20 with SmartPump puts an end to guessing which pump size will work with your particular boat. One SmartPump works for most boats. You know you have the right pump for your boat for optimum control and confidence. Plus, you get complete control in a smaller size with better thermal performance, higher reliability and lower power consumption. It also includes color-coded connectors to make it very easy to install. Pretty smart.
Limit the Maximum Flow Rate
The GHP 20 with SmartPump automatically adjusts the maximum flow rate for a particular boat from 0 to 2.4 L per minute. Because the GHP 20 with SmartPump uses a brushless motor, there is no direct electrical connection between the drive circuit and the rotor. This provides for increased reliability, longer pump life, reduced power consumption, quiet operation, a smaller package, improved thermal performance and higher efficiency.
Eliminate Risk of Rudder “Hard Over”

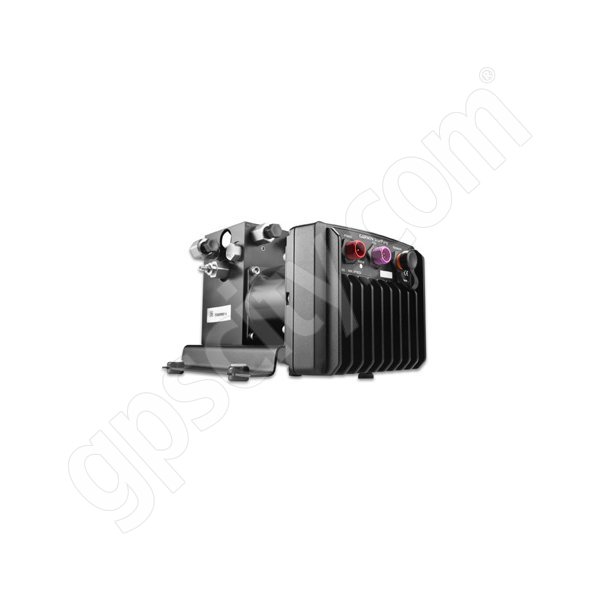

The GHP 20 with SmartPump is a complete autopilot package. SmartPump is one integrated unit comprised of a motor drive circuit with the pump in a single assembly. Equipped with Intelligent Rudder Rate Technology (IRRT), it actually slows the rudder rate when the vessel is at high speeds and speeds up rudder rate when the vessel is at lower speeds to provide optimal performance and safety in all conditions. The brushless motor drive eliminates the risk of rudder hard over due to hardware or software failures.
Enjoy a Longer Lasting System
Boating environments are harsh, especially on saltwater. So the Garmin SmartPump is protected from the elements. SmartPump is engineered from corrosion-resistant components including black dye on aluminum parts and nickel-plating on all steel parts.
Experience Advanced Autopilot Technology
With a GHP 20 with SmartPump aboard your boat, you no longer need to be tied to your helm. In addition to holding its course in virtually all weather and wind conditions, the system can smoothly perform a variety of pre-programmed trolling and search procedures. Plus, with a compatible Garmin networked chartplotter and BlueChart® g2 Vision® charts (sold separately), you gain optional features like Auto Guidance, which automatically steers GPS routes.
Stay in Control with Shadow Drive™ Technology
The GHP 20 with SmartPump features patented Shadow Drive technology. This gives you the security of knowing you maintain control even when the autopilot is engaged. The Shadow Drive system automatically disengages the autopilot if the helm is turned, giving you the freedom to maneuver the boat. The autopilot automatically re-engages when you hold a steady course.
Connect to Networked Devices
The GHP 20 Autopilot with SmartPump for hydraulically steered boats is operated using up to 3 GHC™ 10 control units. The GHC 10 communicates with the autopilot system via your NMEA 2000® network, so autopilot heading data can be shared easily with other devices. This enables MARPA and chart overlay when connected to a Garmin chartplotter.
Add Even More Peace of Mind
Add an optional GRF™ 10 rudder feedback sensor and you can further enhance the performance of your GHP 20 Autopilot with SmartPump.
|
