Garmin GPSMAP 4210

Tutorial Videos

Questions and Answers (Q&As)

What's Included In The Box?

• Garmin GPSMAP 4210
• Garmin OEM 17x NMEA 2000 (View this item)
• Bail mount and knobs
• Protective front cover
• Top and bottom snap covers
• Video cable assembly
• Power cable assembly
• NMEA 0183 cable
• NMEA 2000 drop cable
• NMEA 2000 10 m backbone cable
• NMEA 2000 power cable
• NMEA 2000 T-connector & terminator kit
• Flush mount hardware
• Flush mount gasket
• Marine grommet kit
• Owner’s manual on disk
• Quick reference guide
• Installation instructions

Product Information

User Manual

Gallery of Customer Images

Customer Reviews

Manufacturer Description

This mid-sized 4000 series chartplotter fills the gap between the smaller GPSMAP 4208 and the wider GPSMAP 4212. Like its counterparts, the 4210 combines the power of networking with brilliant color and slim-line design. This chartplotter has preloaded BlueChart g2 maps of the U.S. coast and displays them on a 10.4" SVGA display with crisp, video-quality resolution. By connecting to the Garmin Marine Network, you can add sonar, radar and weather. For even more enhanced features, you can add the optional BlueChart g2 Vision card.

View Detailed Graphics and Video
The 4210 features highly detailed BlueChart g2 marine cartography of the coastal United States, including Alaska, Hawaii and the Bahamas. This data provides detailed coastlines, shaded depth contours, navaids, port plans, wrecks, restricted areas and tide and current information. For other areas, the 4210 has a worldwide basemap with high-quality satellite images in place of more traditional maps. With the SD card slot, you can add additional maps.

Add Extras with BlueChart g2 Vision
With optional BlueChart g2 Vision SD cards, you can add a whole new dimension of exceptional features to your chartplotter.

• Choose to view 3D map information at "mariner's eye view" above the waterline or "fish eye view" below the water.
• High-resolution satellite images and aerial photographs help you orient yourself in unfamiliar areas.
• Auto Guidance technology searches through all relevant charts to create a route you can actually follow - one that avoids obstacles, shallow water, buoys and other obstructions.

Features and Tips

GPSMAP 4210 features

• Garmin radar compatible: yes

• Garmin sonar compatible: yes

• CANetâ„¢ compatible: no

• Garmin Marine Networkâ„¢ compatible: yes

• Supports AIS (tracks target ships' position): yes

• Supports DSC (displays position data from DSC capable VHF radio): yes

• Audible alarms: yes

• Tide tables: yes

• Hunt/fish calendar: no

• Sun and moon information: yes

• 3D map view: yes (with optional BlueChart g2 Vision card)

• Auto Guidance: yes (with optional BlueChart g2 Vision card)

• Automatic routing (turn by turn routing on roads): no

• XM WX Weather & Radio for U.S. compatible: yes

• Voice prompts (e.g. "Turn right in 500 ft."): no

• Remote control: yes (optional)

• Headphone jack/audio line-out: no

• Audio/video input/output: yes

• Portable: no

• Automotive/motorcycle-friendly: no

• Additional: Interface Inputs/Outputs: 3 built-in network ports, 4 NMEA input (supports NMEA 2000), 2 NMEA output, 2 video inputs for onboard cameras, 1 SVGA PC monitor

• Unit dimensions, WxHxD: 13.4" x 8.9" x 4.2" (34 x 22.6 x 10.7 cm)

• Display size, WxH: 9.7" x 7.3", 10.4" diagonal (24.6 x 18.5 cm, 26.4 cm diagonal)

• Display resolution, WxH: 800 x 600 pixels

• Display type: SVGA display

• Weight: 7.8 lb (3.5 kg)

• Battery: none

• Battery life: none

• Waterproof: yes (IPX7)

• Antenna: external

• NMEA input/output: NMEA 0183, NMEA 2000


• Basemap: yes

• Preloaded maps: Yes

• Ability to add maps: yes

• Built-in memory: none (cannot load maps to internal memory)

• Accepts data cards: SD card slot (BlueChart g2 Vision cards sold separately)

• Waypoints/favorites: 1,500

• Routes: 20

• Track log: 10,000 points; 20 saved tracks


GPSMAP 3005C PICTURE GALLERY:

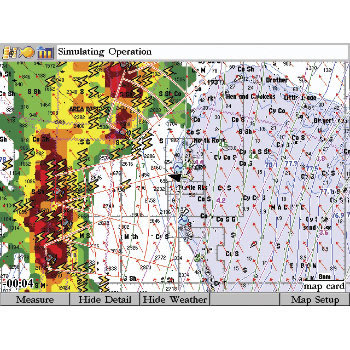

XM Satellite Weather Screen Use with GDL 30 for live XM satellite weather, including wind direction, wave height, surface temperature and more

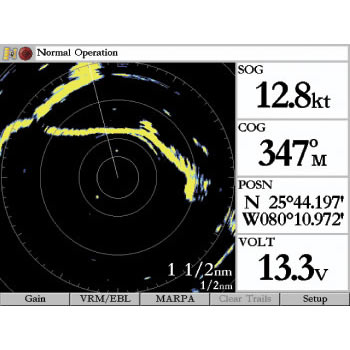

Radar Screen Use with GMR 20 or 40 radar scanners for precise target definition

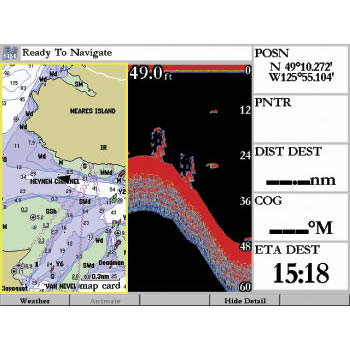

Map and Sounder Screen The configurable MFD allows you to simultaneously view map and sounder (with optional GSD 20 remote sounder) information.

Specifications
