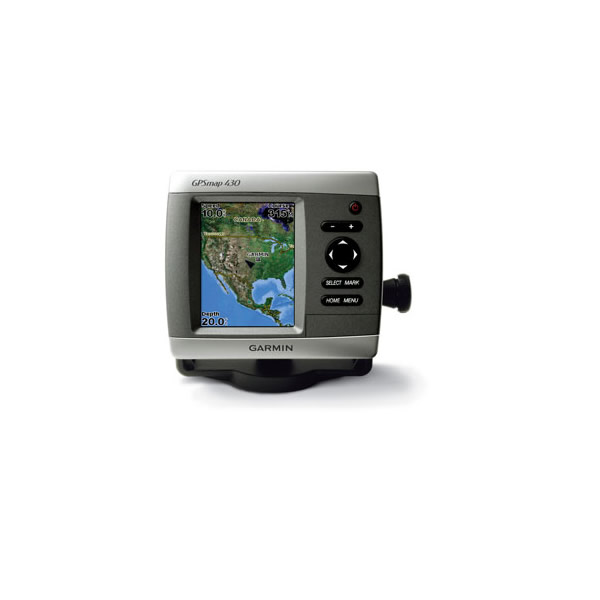

This sleek, space-saving chartplotter is your companion for freshwater fishing and boating. The GPSMAP 430 Series features preloaded detailed maps for U.S. inland lakes as well as an ultra-bright 4 inch QVGA display; built-in, satellite-enhanced worldwide basemap and simplified user operation.

Navigate Any Lake
The 430 comes preloaded with detailed maps for U.S. inland lakes, including 5300 lakes with shoreline, depth contours, navaids and more. Over 300 of these lakes are enhanced with extra Inland Lakes Vision features. For areas outside the U.S., the 430 has a worldwide basemap with satellite images in place of more traditional maps, and its SD card slot makes it easy to add additional maps without connecting to a computer. With fewer keys and a simple, intuitive interface, the 430 makes navigating your way through the water easy.

The 430 boasts advanced Inland Lakes Vision features for 300 of the most popular lakes.

• 3D mariner's eye view or fish eye view provides you with a 3-dimensional perspective of map information, both above the waterline and below it.
• Higher-resolution satellite images help you orient yourself in unfamiliar areas.
• Auto guidance technology searches through map data to suggest the best passage.

Add Extras with BlueChart g2 Vision
With the optional BlueChart g2 Vision SD card, you can add a whole new dimension of exceptional features to your chartplotter for offshore use, including advanced 3D perspective, Auto guidance, high-resolution satellite images, detailed fishing charts and more.

Features and Tips

GPSMAP 430s Sounder with Dual Beam Transducer features

• Built-in analog Sounder: YES
• Transducer Included: YES (010-10272-00)
• XM Antenna Included: NO
• Garmin radar compatible: no
• Garmin sonar compatible: yes
• CANetâ„¢ compatible: yes
• Garmin Marine Networkâ„¢ compatible: no
• Supports AIS (tracks target ships' position): yes
• Supports DSC (displays position data from DSC capable VHF radio): yes
• Audible alarms: yes
• Tide tables: yes
• Hunt/fish calendar: no
• Sun and moon information: yes
• 3D map view: yes (with optional BlueChart g2 Vision card)
• Auto Guidance: yes (with optional BlueChart g2 Vision card)
• Automatic routing (turn by turn routing on roads): no
• XM WX Weather & Radio for U.S. compatible: yes
• Voice prompts: no
• Remote control: no
• Headphone jack/audio line-out: no
• Audio/video input/output: no
• Portable: no
• Automotive/motorcycle-friendly: no

• Unit dimensions, WxHxD: 5.7" x 5.0" x 2.7" (14.5 x 12.7 x 6.9 cm)
• Display size, WxH: 2.4" x 3.2", 4.0" diagonal (6.1 x 8.1 cm, 10.2 cm diagonal)
• Display resolution, WxH: 240 x 320 pixels
• Display type: QVGA display
• Weight: 1.3 lb (590 g)
• Battery: none
• Battery life: none
• Waterproof: yes (IPX7)
• Antenna: internal
• NMEA output: NMEA 0183
• RoHS version available: no

• Basemap: yes
• Preloaded maps: yes
• Ability to add maps: yes
• Built-in memory: none (cannot load maps to internal memory)
• Accepts data cards: SD card slot
• Waypoints: 1,500
• Routes: 20
• Track log: 10,000 points; 20 saved tracks
