See more Garmin items. |
| |
| Our Price: |
$5499.95 |
Availability: |
Special Order Item.
Ships in 1 to 2 weeks. |
| | |
| Model: |
Garmin GPSMAP 5215 with GPS 17x |
| Part No: |
010-00692-11 |
| Condition: |
Brand New, Full Manufacturer Warranty |
|
| Price Match: |
Get a Quick Price Match for this item (during business hours). |
|
Tutorial Videos |
| We have 5 videos for this item. We handcraft videos daily to help you learn more about the functionality of the items we sell. View a list of the GPS City videos. Visit our Youtube channel. Suggest a video via our feedback form. |
|
Questions and Answers (Q&As) |
Got a question about the Garmin GPSMAP 5215 with GPS 17x? Click this link to enter your question. No login required. Our tech staff moderates this Q&A and will typically respond within 24 hours (72 hours if a weekend). Visitors are also welcome to chime in at your convenience.
|
There are currently no Q&A's posted for this item. Feel free to post a question you have about this item. |
|
What's Included In The Box? |
The Garmin GPSMAP 5215 with GPS 17x ships with the following items included:- Garmin GPSMAP 5215 with GPS 17x
- Protective front cover
- Top & bottom snap covers
- Video cable assembly
- Power cable assembly
- NMEA 0183 cable
- NMEA 2000 drop cable
- NMEA 2000 power cable
- NMEA 2000 T-connector & terminator kit
- Flush mount hardware
- Flush mount gasket
- Marine grommet kit
- Owner’s manual on disk
- Quick reference guide
- Installation instructions
|
Product Information |
| Manufacturer: |
Garmin |
Category: |
GPS Units |
Type: |
Marine GPS |
| Model: |
010-00692-11 |
SKU: |
5215 |
UPC: |
75375908034 |
| Announced: |
November 15, 2007 |
First Shipped: |
December 1, 2007 |
Weight: |
16.000 lbs. |
Gallery of Customer Images |
| Customer submitted images of the Garmin GPSMAP 5215 with GPS 17x in action. You can also view our entire gallery or add your own gallery item. Special limited time offer - get a free t-shirt with every approved submission with pictures. |
There are currently no gallery items for the Garmin GPSMAP 5215 with GPS 17x. |
|
Customer Reviews |
| View all reviews. Or click here to Add Your Own Review. It's quick and easy. No login required. |
|
There are currently no reviews for the Garmin GPSMAP 5215 with GPS 17x.
|
Manufacturer Description |

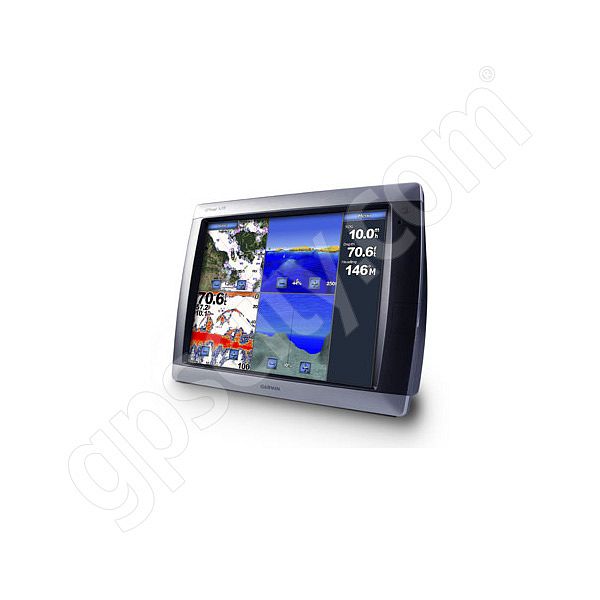

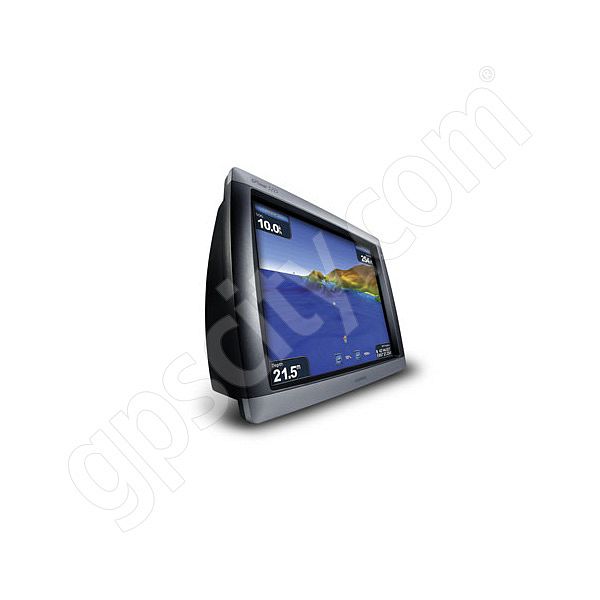

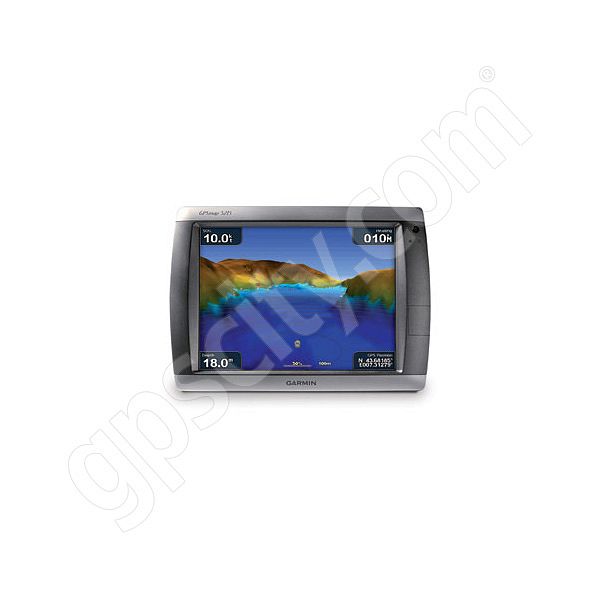

The largest network plotter display in the Garmin marine line, the GPSMAP 5215 offers true "big picture" navigation.
This chartplotter features the same menu-driven touchscreen found on its 5000-series counterparts. A satellite-enhanced worldwide basemap and a whopping 15" screen make navigation as easy as pointing your finger. By connecting to the Garmin Marine Network, you can add sonar, radar and weather. And for even more advanced features, you can add the optional BlueChart g2 Vision card.
View Detailed Graphics and Video
The GPSMAP 5215 features a worldwide basemap with high-quality satellite images in place of more traditional maps. For even more detail, you can add maps easily with the SD card slot without having to connect to a computer.
The 5215's huge XGA screen displays graphics with crisp, video-quality resolution. To keep tabs on your engine room or other area of your boat, you can also connect a live video feed with the 5215's video input option.
Add Extras with BlueChart g2 Vision
With optional BlueChart g2 Vision SD cards, you can add a whole new dimension of exceptional features to your chartplotter.
- Choose to view 3D map information at "mariner's eye view" above the waterline or "fish eye view" below the water.
- High-resolution satellite images and aerial photographs help you orient yourself in unfamiliar areas.
- Auto Guidance technology searches through all relevant charts to create a route you can actually follow - one that avoids obstacles, shallow water, buoys and other obstructions.
Connect to the Garmin Marine Network
The 5215 connects easily to the high-speed Garmin Marine Network, so you can interface with additional MFDs and add remote sensors. Once connected, you can share information between the 5215 and other chartplotters on your boat. You can also add high-powered radar, sonar, and XM satellite weather and radio to your system.
|
Features and Tips |
Here is a listing we have put together of some of the common GPSMAP 5215 with GPS 17x features,
along with a few user tips that you may find of help for this particular item. |
- Garmin radar compatible: yes
- Garmin sonar compatible: yes
- CANetâ„¢ compatible: no
- Garmin Marine Networkâ„¢ compatible: yes
- Supports AIS (tracks target ships' position): yes
- Supports DSC (displays position data from DSC capable VHF radio): yes
- Audible alarms: yes
- Tide tables: yes
- Hunt/fish calendar: no
- Sun and moon information: yes
- 3D map view: yes (with optional BlueChart g2 maps)
- Auto Guidance: yes (with optional BlueChart g2 Vision card)
- Automatic routing (turn by turn routing on roads): no
- XM WX Weather & Radio for U.S. compatible: yes
- Voice prompts (e.g. "Turn right in 500 ft."): no
- Remote control: yes (optional)
- Headphone jack/audio line-out: no
- Audio/video input/output: yes
- Portable: no
- Automotive/motorcycle-friendly: no
- Additional: Interface Inputs/Outputs: 3 built-in network ports, 4 NMEA 0183 inputs, 2 NMEA 0183 outputs, and NMEA 2000; 2 video inputs for onboard cameras, 1 XGA PC monitor video output
Physical & Performance:
- Unit dimensions, WxHxD: 15.5" x 11.7" x 5.7" (39.4 x 29.7 x 14.5 cm)
- Display size, WxH: 9" x 12", 15" diagonal (22.9 x 30.5 cm, 30.7 cm diagonal)
- Display resolution, WxH: 1024 x 768 pixels
- Display type: Touchscreen XGA display
- Weight: 11.9 lb (5.4 kg)
- Battery: none
- Battery life: none
- Waterproof: yes (IPX7)
- Antenna: external
- NMEA input/output: NMEA 0183, NMEA 2000
Maps & Memory:
- Basemap: yes
- Preloaded maps: yes
- Ability to add maps: yes
- Built-in memory: none (cannot load maps to internal memory)
- Accepts data cards: SD card slot (BlueChart g2 Vision cards sold separately)
- Waypoints/favorites: 1,500
- Routes: 20
- Track log: 10,000 points; 20 saved tracks
|
Specifications |
| General |
| 1. |
Unit dimensions, WxHxD: |
15.5 x 11.7 x 5.7 inches (39.4 x 29.7 x 14.5 cm) |
| 2. |
Display size, WxH: |
9 x 12, 15.0 inch diagonal (22.9 x 130.5, 30.7 cm diagonal) |
| 3. |
Display resolution, WxH: |
1024 x 768 pixels |
| 4. |
Display type: |
touchscreen XGA display |
| 5. |
Weight: |
11.9 lbs. |
| 6. |
Battery: |
External Power only |
| 7. |
Waterproof: |
Yes (IPX7) |
| 8. |
GPS-enabled: |
Yes |
| 9. |
Floats: |
No |
| 10. |
High-sensitivity receiver: |
No |
| 11. |
PC interface: |
Serial |
| 12. |
RoHS version available: |
Yes |
| 13. |
Preloaded maps: |
Yes |
| 14. |
Map coverage area: |
Bluechart g2 (limited) |
| 15. |
Ability to add maps: |
Yes |
| 16. |
Bluechart g2 Vision Map Compatible: |
Yes |
| 17. |
Accepts data cards: |
SD data card |
| 18. |
Waypoints/favorites/locations: |
1500 |
| 19. |
Additional: |
nterface Inputs/Outputs: 3 built-in network ports, 4 NMEA 0183 inputs, 2 NMEA 0183 outputs, and NMEA 2000; 2 video inputs for onboard cameras, 1 XGA PC monitor video output |
| Automotive |
| 20. |
Routes: |
20 |
| 21. |
Basemap: |
Yes |
| 22. |
Voice prompts (e.g. "Turn right in 500 ft."): |
No |
| 23. |
Speaks street names (e.g. "Turn right ON ELM STREET in 500 ft.") : |
No |
| 24. |
Speech recognition (navigate with voice commands): |
No |
| 25. |
3D map view: |
Yes |
| 26. |
Automatic routing (turn by turn routing on roads): |
No |
| 27. |
Auto sort multiple destinations (provides most direct route): |
No |
| 28. |
Auto re-route (fast off-route and detour recalculation): |
No |
| 29. |
Route avoidance (avoid highways, tolls etc.): |
No |
| 30. |
Hands-free calling with Bluetooth® wireless technology: |
No |
| 31. |
FM traffic compatible: |
No |
| 32. |
XM® Navtraffic (includes basic weather) & Radio for U.S. compatible: |
Yes |
| 33. |
MSN® Direct for U.S. compatible: |
No |
| 34. |
Where Am I? feature (find closest hospitals, police & gas stations, nearest address & intersection): |
No |
| 35. |
Car locator feature (marks position when removed from windshield mount): |
No |
| 36. |
MP3 player: |
No |
| 37. |
Audio book player: |
No |
| 38. |
Picture viewer: |
No |
| 39. |
Configurable vehicle icons (select car-shaped icons for map navigation): |
No |
| 40. |
World travel clock, currency & measurement converter, calculator: |
No |
| 41. |
Touchscreen: |
Yes |
| 42. |
Qwerty or ABC keyboard (choose keyboard layout): |
No |
| 43. |
Antenna Type: |
Detachable |
| 44. |
External Antenna Jack: |
None |
| 45. |
Remote control: |
Yes |
| 46. |
FM transmitter: |
No |
| 47. |
Headphone jack/audio line-out: |
No |
| 48. |
Audio/video input/output: |
Yes |
| 49. |
Dead reckoning: |
No |
| 50. |
Garmin Lock™ (anti-theft feature): |
No |
| 51. |
Automotive-friendly: |
No |
| 52. |
Motorcycle-friendly: |
No |
| 53. |
Lane Assist |
No |
| 54. |
Data Services with Bluetooth Technology |
No |
| 55. |
Speed Limit Indicator |
No |
| Outdoor |
| 56. |
Track log: |
10,000 points, 20 saved tracks |
| 57. |
Electronic compass: |
No |
| 58. |
Barometric altimeter: |
No |
| 59. |
Hunt/fish calendar: |
No |
| 60. |
Sun and moon information: |
Yes |
| 61. |
Tide tables: |
Yes |
| 62. |
Area calculation: |
No |
| 63. |
Geocaching mode: |
No |
| 64. |
Outdoor GPS games: |
No |
| 65. |
Unit-to-unit transfer (shares data wirelessly with similar units): |
No |
| Marine |
| 66. |
Portable |
No |
| 67. |
Marine Auto Guidance |
No |
| 68. |
Radar compatible |
Yes |
| 69. |
Sonar compatible |
Yes |
| 70. |
CANet® compatible |
No |
| 71. |
Marine Network™ compatible |
Yes |
| 72. |
Supports AIS (tracks target ships' position) |
Yes |
| 73. |
Supports DSC (displays position data from DSC capable VHF radio) |
Yes |
| 74. |
Audible alarms |
Yes |
| 75. |
XM WX Weather & Radio for U.S. compatible |
Yes |
| 76. |
NMEA input/output |
Yes (NMEA 0183) |
|
|
|
