This item has been discontinued by the manufacturer.
Accessories may still
be available for this item. Click to view accessories.
| GPS City recommended alternative: |
|
Vendor: Garmin
Name: OEM 15x L Wired
Part No: 010-00240-22
SKU: OEM15XL-W
View the Garmin OEM 15x L Wired.
|
|
| |
|
Tutorial Videos |
| We handcraft videos daily to help you learn more about the functionality of the items we sell. View a list of the GPS City videos. Visit our Youtube channel. Suggest a video via our feedback form. |
| We have not yet produced any videos for the OEM 15 L Wired. If you would like to suggest a video for this item, we'd love to hear your suggestion! Please submit your suggestion via our feedback form. We review all suggestions and will do our best to provide a response in a timely manner. |
|
Questions and Answers (Q&As) |
Got a question about the Garmin OEM 15 L Wired? Click this link to enter your question. No login required. Our tech staff moderates this Q&A and will typically respond within 24 hours (72 hours if a weekend). Visitors are also welcome to chime in at your convenience.
|
There are currently no Q&A's posted for this item. Feel free to post a question you have about this item. |
|
What's Included In The Box? |
| The Garmin OEM 15 L Wired ships with the following items included: |
Product Information |
| Manufacturer: |
Garmin |
Category: |
GPS Units |
Type: |
OEM GPS |
| Model: |
010-00240-07 |
SKU: |
OEM15L-W |
UPC: |
753759028268 |
| Announced: |
November 30, 1999 |
First Shipped: |
April 25, 2003 |
Weight: |
0.100 lbs. |
Gallery of Customer Images |
| Customer submitted images of the Garmin OEM 15 L Wired in action. You can also view our entire gallery or add your own gallery item. Special limited time offer - get a free t-shirt with every approved submission with pictures. |
There are currently no gallery items for the Garmin OEM 15 L Wired. |
|
Customer Reviews |
| View all reviews. Or click here to Add Your Own Review. It's quick and easy. No login required. |
|
There are currently no reviews for the Garmin OEM 15 L Wired.
|
Family Series |
Garmin OEM 15 Flex |
Garmin OEM 15 Wired |
Garmin OEM 15 L Flex |
Garmin OEM 15 L Wired |
Garmin OEM 15 H Flex |
Garmin OEM 15 H Wired |
|
Alternative Models |
Garmin OEM 25 LVC |
Garmin OEM 25 LVS |
Garmin OEM 25 HVS | | | |
|
Manufacturer Description |

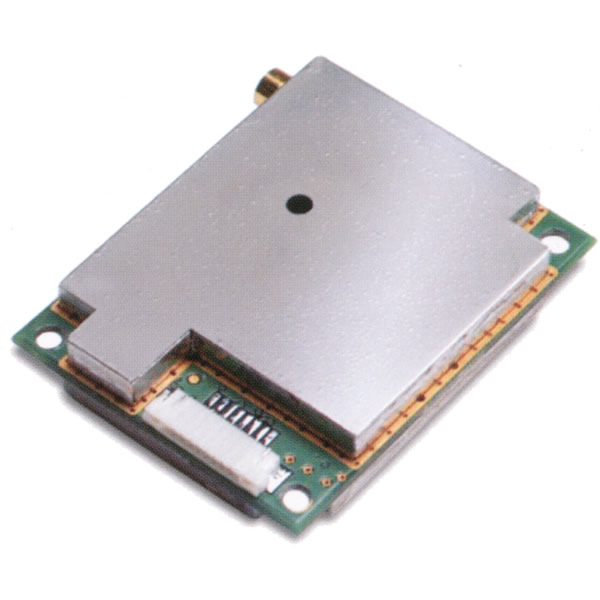

| Garmin OEM GPS 15 L WAAS Wired GPS Engine. Part Number: 010-00240-07
|
Features and Tips |
Here is a listing we have put together of some of the common OEM 15 L Wired features,
along with a few user tips that you may find of help for this particular item. | |
External Antenna Is Required:
The OEM Engine Boards require an external antenna with an MCX connection to aquire satellites. Click here to view the selection of compatible antennas.
|
Specifications |
| General |
| 1. |
Unit dimensions, WxHxD: |
1.4 x 1.805 x 0.327 inches (3.56 x 4.585 x 0.831 cm) |
| 2. |
Display size, WxH: |
no display |
| 3. |
Display resolution, WxH: |
no display |
| 4. |
Display type: |
no display |
| 5. |
Weight: |
0.5 oz. (14.1 g) |
| 6. |
Battery: |
None |
| 7. |
Battery life: |
None |
| 8. |
Waterproof: |
No |
| 9. |
GPS-enabled: |
Yes |
| 10. |
Floats: |
No |
| 11. |
High-sensitivity receiver: |
No |
| 12. |
PC interface: |
Serial |
| 13. |
RoHS version available: |
Yes |
| 14. |
Preloaded maps: |
No |
| 15. |
Accepts data cards: |
No |
| OEM |
| 16. |
Operating Current (mA) |
100mA peak, 66mA nominal |
| 17. |
Input Voltage |
3.3 to 5 Vdc |
| 18. |
Chipset |
Garmin |
| 19. |
Operating Temperature |
-30C to +90C |
| 20. |
Update Rate |
1 Hz |
| 21. |
Number of Data Ports |
2 |
| 22. |
Port 1 protocols |
NMEA 0183 V2.20 |
| 23. |
Port 2 protocols |
RTCM input |
| 24. |
Outputs |
NMEA port 1 |
| 25. |
PPS |
Yes |
| 26. |
Receiver Sensitivity |
-165 dBW |
| 27. |
Reacquisition Times |
<2 sec |
| 28. |
Acquisition Times (Warm) |
~15 sec |
| 29. |
Acquisition Times (Cold) |
~45 sec |
| 30. |
AutoLocate Time |
5 min |
| 31. |
SkySearch Time |
5 min |
| 32. |
Accuracy with WAAS |
< 3m 95% of the time |
| 33. |
Dynamics |
999 knots velocity (only limited @ altitude > 60,000 feet), 6g acceleration |
| 34. |
RF connector |
MCX |
| 35. |
Channels |
12 |
| 36. |
WAAS Enabled |
Yes |
|
|
|
