Customer Images
Share your images and get a
free gpscity.com t-shirt!
|
 (5 customer reviews). Email:
 Print:
100% of our reviewers recommend this item. See more Garmin items. |
| |
| List Price: |
$109.99 |
| Our Price: |
$89.95 (and this item ships for $3.49) |
| You Save: |
$20.04 (18%) |
Availability: |
In Stock.
Ships today, May 24. |
| | |
|
|
| Model: |
Garmin OEM 16 HVS High-Sensitivity |
| Part No: |
010-00258-63 |
| Condition: |
Brand New, Full Manufacturer Warranty |
|
| Price Match: |
Get a Quick Price Match for this item (during business hours). |
|
Tutorial Videos |
| We handcraft videos daily to help you learn more about the functionality of the items we sell. View a list of the GPS City videos. Visit our Youtube channel. Suggest a video via our feedback form. |
| We have not yet produced any videos for the OEM 16 HVS High-Sensitivity. If you would like to suggest a video for this item, we'd love to hear your suggestion! Please submit your suggestion via our feedback form. We review all suggestions and will do our best to provide a response in a timely manner. |
|
Questions and Answers (Q&As) |
|
|
Product Information |
| Manufacturer: |
Garmin |
Category: |
GPS Units |
Type: |
OEM GPS |
| Model: |
010-00258-63 |
SKU: |
OEM16XHVS |
UPC: |
753759077808 |
| Announced: |
March 26, 2008 |
First Shipped: |
November 6, 2001 |
Weight: |
0.706 lbs. |
Gallery of Customer Images |
| Customer submitted images of the Garmin OEM 16 HVS High-Sensitivity in action. You can also view our entire gallery or add your own gallery item. Special limited time offer - get a free t-shirt with every approved submission with pictures. |
There are currently no gallery items for the Garmin OEM 16 HVS High-Sensitivity. |
|
Customer Reviews |
| View all reviews. Or click here to Add Your Own Review. It's quick and easy. No login required. |
100% of our reviewers recommend this item.
|
| |
| | Most recent customer reviews. (View all 5 reviews for this item.) |
|
Written by Fernando Guadalajara, Mexico November 25, 2011
|
GOOD OPTION FOR TIME SERVERS I have used the old NO High Sensitivity model since 2007, which had been worked very well as time reference using NM … More
•Pros: affordable price. •Recommend? YES 15 viewers found this helpful. |
|
Written by SoCal Engineer LA October 3, 2010
|
EXCELLENT HEAVY DUTY GPS This is an excellent OEM GPS which I used 8 years ago in a design I did under contract. This is the same model with … More
•Pros: ruggedness, commandability, 1pps output. •Cons: none. •Recommend? YES 101 viewers found this helpful. |
|
Written by Tom Hummelstown, PA January 12, 2010
|
GREAT OEM GPS ANTENNA This item was easy to use with the enclosed info and the garmin website. It was used in an industrial application re … More
•Recommend? YES 154 viewers found this helpful. |
|
Written by Hansel Kansas September 16, 2009
|
BWEST OEM GPS I have used these for years on AG equipment and they are very tough (fallen into the tractor tire several times), dura … More
•Recommend? YES 194 viewers found this helpful. |
Family Series |
Garmin OEM 16 LVS |
Garmin OEM 16 HVS |
Garmin OEM 17N | | | |
|
Alternative Models |
Garmin OEM 35 LVC |
Garmin OEM 35 LVS |
Garmin OEM 35 HVS |
Garmin OEM 35 PC |
Garmin OEM 35 USB |
Garmin OEM 36 |
|
Manufacturer Description |

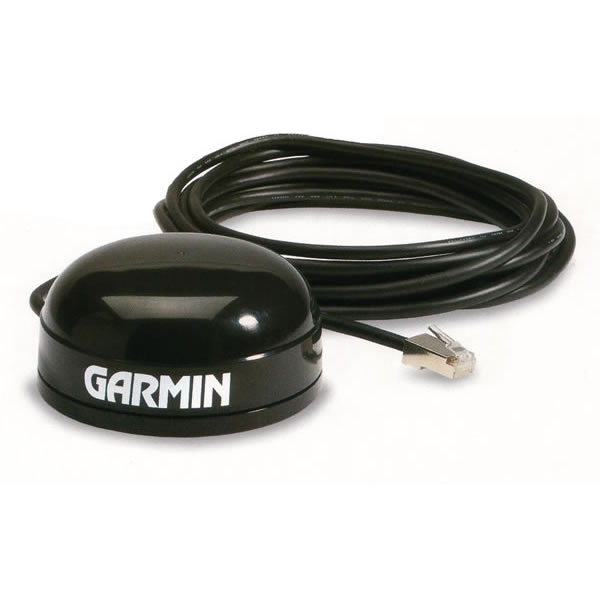

The GARMIN GPS 16x delivers exceptional accuracy while standing up to the harshest environment. This surface mounted GPS sensor has an integrated antenna housed in a rugged, waterproof design. The high-sensitivity receiver allows for continuous tracking of all visible satellites.
It's WAAS capable, which means it can provide position accuracy of less than 3 meters on average. This incredible accuracy is possible without the use of an external DGPS beacon receiver. The GPS 16 also offers excellent EMI/RFI performance for easy integration into systems that will be operated near mobile computing devices and wireless communications equipment.
The cable on the GPS16-HVS uses a flexible black PVC jacketing material. The cable is 5 meters in length and contains 8 color-coded 28 awg wires that are terminated in an RJ-45 plug.
OEM16 MODELS AND SPECS:
GPS16-LVS: Attached 16 foot power/data cable with a RJ-45 end connector. Accepts power from low voltage power supplies between 3.3 and 6 VDC regulated to less than 100mV ripple. Asynchronous serial data interfaces via 2 serial ports with true RS-232 voltage level outputs.*. Click here for more.
GPS16-HVS: Attached 16 foot power/data cable with a RJ-45 end connector. Accepts power from unregulated high voltage power supplies between 6 and 40 VDC. Asynchronous serial data interfaces via 2 serial ports with true RS-232 voltage level outputs.*
* SERIAL INTERFACE/FORMAT:
PORT 1: True RS-232 output, asynchronous serial input with RS-232 or TTL voltage levels, RS-232 polarity. /
Selectable between NMEA 0183 v2.00, NMEA 0183 v3.00 and Garmin binary formats: NMEA v2.0 (ASCII); Approved output sentences: GPALM, GPGGA, GPGLL, GPGSA, GPGSV, GPRMC, GPVTG; Proprietary sentences: PGRMB, PGRME, PGRMF, PGRMM, PGRMT, PGRMV.
PORT 2: Asynchronous serial input only, compatible with RS-232 or TTL voltage levels, RS-232 polarity. /
RTCM input only; RTCM SC-104 differential input message types 1, 2, 3, 7 and 9.
Garmin Configuration Utility:
Download and run this program to evaluate and configure you OEM GPS unit when connected to your PC*. Review the updates and downloads for the OEM 16x HVS.
* the cable at the end of this unit will need to be joined to the PC, generally using a RS232 port end.
|
Features and Tips |
Here is a listing we have put together of some of the common OEM 16 HVS High-Sensitivity features,
along with a few user tips that you may find of help for this particular item. |
• WAAS enabled
• high-sensitivity GPS receiver
• Differential-ready with RTCM-104
• Accuracy better than 3 meters with WAAS
• On-board real time clock, adj. width 1Hz pulse signal
• 1uSec accuracy pulse per second output
• Water resistant to IPX7 specifications
• One RS 232 serial output
• Two RS 232 serial inputs
• User - selectable baud rates
• High voltage supply 6.0 to 40.0v DC
PHYSICAL CHARACTERISTICS
3.15" (86mm) diameter and 1.65" (42mm) high.
GPS 16 LVS: 6.4oz. (181g) without cable
GPS 16 HVS: 11.7 oz. (332g) with 5 meter cable.
|
Specifications |
| General |
| 1. |
Unit dimensions, WxHxD: |
3.58 inch (91.0 mm) diameter, 1.65inch (42 mm) high |
| 2. |
Weight: |
6.1 oz (174 g) |
| 3. |
Waterproof: |
Yes (IPX7) |
| 4. |
GPS-enabled: |
Yes |
| 5. |
Floats: |
No |
| 6. |
High-sensitivity receiver: |
Yes |
| 7. |
PC interface: |
Serial |
| OEM |
| 8. |
Operating Current (mA) |
100 mA |
| 9. |
Input Voltage |
6.0 Vdc to 40 Vdc unregulated |
| 10. |
Operating Temperature |
-30°C to +80 |
| 11. |
Port 1 protocols |
NMEA 0183 Versions 2 |
| 12. |
Port 2 protocols |
RTCM SC-104 message |
| 13. |
PPS |
Yes |
| 14. |
Receiver Sensitivity |
-185 dBW |
| 15. |
Reacquisition Times |
<2 sec |
| 16. |
Acquisition Times (Warm) |
~ 1sec |
| 17. |
Acquisition Times (Cold) |
~38sec |
| 18. |
AutoLocate Time |
~45sec |
| 19. |
Accuracy with WAAS |
<3 meters 95% typic |
| 20. |
Accuracy with DGPS Source |
3–5 meters 95% |
| 21. |
Dynamics |
999 knots velocity (only limited at altitude greater than 60,000 feet) 3g |
| 22. |
WAAS Enabled |
Yes |
|
|
|
