This item has been discontinued by the manufacturer.
Accessories may still
be available for this item. Click to view accessories. |
| |
|
Product Information |
| Manufacturer: |
Garmin |
Category: |
GPS Units |
Type: |
OEM GPS |
| Model: |
010-00258-52 |
SKU: |
OEM16LVS |
UPC: |
753759030964 |
| Announced: |
November 30, 1999 |
First Shipped: |
November 21, 2001 |
Weight: |
0.700 lbs. |
Garmin OEM 16 LVS Family Series |
Garmin OEM 16 LVS |
Garmin OEM 16 HVS |
Garmin OEM 17N | | | |
|
Garmin OEM 16 LVS Alternative Models |
Garmin OEM 35 LVC |
Garmin OEM 35 LVS |
Garmin OEM 35 HVS |
Garmin OEM 35 PC |
Garmin OEM 35 USB |
Garmin OEM 36 |
|
Manufacturer Description |

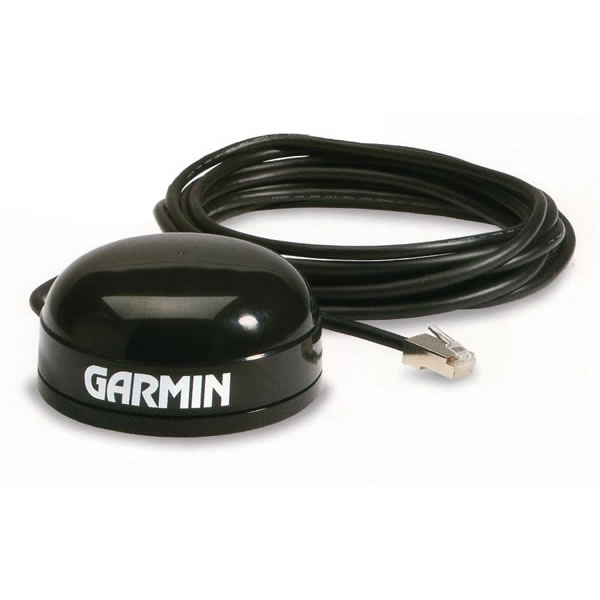

The GARMIN GPS 16 delivers exceptional accuracy while standing up to the harshest environment. This surface mounted GPS sensor has an integrated antenna housed in a rugged, waterproof design. The 12-channel receiver allows for continuous tracking of all visible satellites.
It's WAAS capable, which means it can provide position accuracy of less than 3 meters on average. This incredible accuracy is possible without the use of an external DGPS beacon receiver. The GPS 16 also offers excellent EMI/RFI performance for easy integration into systems that will be operated near mobile computing devices and wireless communications equipment.
The cable on the GPS16-HVS uses a flexible black PVC
jacketing material. The cable is 5 meters in length and contains 8
color-coded 28 awg wires that are terminated in an RJ-45 plug.
OEM16 MODELS AND SPECS:
GPS16-LVS: Attached 16 foot power/data cable with a RJ-45 end connector. Accepts power from low voltage power supplies between 3.3 and 6 VDC regulated to less than 100mV ripple. Asynchronous serial data interfaces via 2 serial ports with true RS-232 voltage level outputs.*
GPS16-HVS: Attached 16 foot power/data cable with a RJ-45 end connector. Accepts power from unregulated high voltage power supplies between 6 and 40 VDC. Asynchronous serial data interfaces via 2 serial ports with true RS-232 voltage level outputs.*. Click here for more.
* SERIAL INTERFACE/FORMAT:
PORT 1: True RS-232 output, asynchronous serial input with RS-232 or TTL voltage levels, RS-232 polarity. /
Selectable between NMEA 0183 v2.00, NMEA 0183 v3.00 and Garmin binary formats: NMEA v2.0 (ASCII); Approved output sentences: GPALM, GPGGA, GPGLL, GPGSA, GPGSV, GPRMC, GPVTG; Proprietary sentences: PGRMB, PGRME, PGRMF, PGRMM, PGRMT, PGRMV.
PORT 2: Asynchronous serial input only, compatible with RS-232 or TTL voltage levels, RS-232 polarity. /
RTCM input only; RTCM SC-104 differential input message types 1, 2, 3, 7 and 9.
Garmin Configuration Utility:
Download and run this program to evaluate and configure you OEM GPS unit when connected to your PC*. Review the updates and downloads for the OEM 16LVS.
* the cable at the end of this unit will need to be joined to the PC, generally using a RS232 port end.
|
Features & Tips |
Here is a listing we have put together of some of the common OEM 16 LVS features,
along with a few user tips that you may find of help for this particular item. | • WAAS enabled
• 12 parallel channel GPS receiver
• Differential-ready with RTCM-104
• Accuracy better than 3 meters with WAAS
• On-board real time clock, adj. width 1Hz pulse signal
• 1uSec accuracy pulse per second output
• Water resistant to IPX7 specifications
• One RS 232 serial output
• Two RS 232 serial inputs
• User - selectable baud rates
• Low voltage supply 3.3 to 6.0v DC
PHYSICAL CHARACTERISTICS
3.15'' (86mm) diameter and 1.65'' (42mm) high.
GPS 16 LVS: 6.4oz. (181g) without cable
GPS 16 HVS: 11.7 oz. (332g) with 5 meter cable. |
