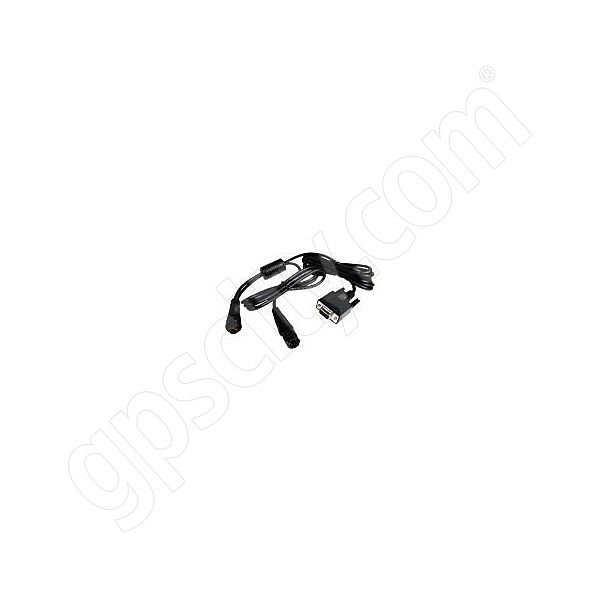

This cable allows you to make a powerful connection between your GPS and your PC. Now you can create routes and waypoints on your PC and transfer the data to your GPS. Cable features a standard 9-pin D connector and two circular 7 pin ends.
USB PORT: If you need to connect the serial end of this cable to a USB Port then you will need to purchase a USB Adapter.
FIXED MOUNT/CHARTPLOTTER (with 7 pin connector): This cable WILL connect directly to a 7 pin unit connection but will also require one of three Power Supply Cable for operation.
1. Cigarette Lighter Adapter (010-10077-00)
2. A/C Adapter (010-10153-00).
3. Power/Data Cable (010-10083-00). This cable is included with the unit.
SOUNDER/FISHFINDER (with 18 pin connector): This cable WILL NOT connect directly to an 18 pin unit connection. The 18 Pin Retrofit Adapter Cable (010-10210-00) and one of three 7 Pin Power Supply Cables is required for operation. Other alternatives are to purchase one of the two bundles of the Retrofit Cable with a Power Supply Cable, or purchase the AC/PC Combo Cable (010-10276-00). This does not require the PC Interface Cable.
POWER CABLES WITH RETRO FIT CABLE:
1. P/N 010-10207-00 consists of both the AC Adapt (010-10153-00) and Retrofit Cable (010-10210-00)
2. P/N 010-10208-00 consists of both the Cigarette Lighter Adapter (010-10077-00) and Retrofit Cable (010-10210-00)
3. P/N 010-10209-00 consists of both the Power/Data Cable (010-10083-00) and Retrofit Cable (010-10210-00)
