RAM Mount Aluminum GPSMAP 76Cx 76CSx 96C Series Zinc Coated U-Bolt Mount
ATTENTION! This item has a NEW & IMPROVED page format. Please click this link to view the new page.

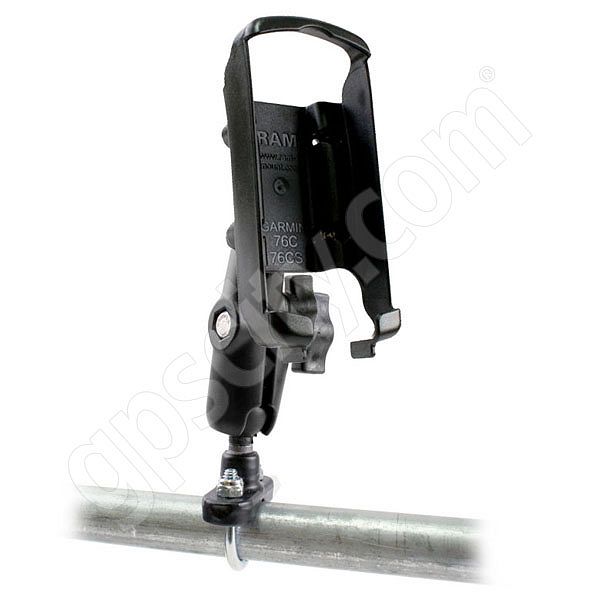

RAM Mount GPSMAP 76Cx 76CSx 96C Zinc U-Bolt Mount

Click image for larger view
Mfg P/N: RAM-B-149Z-GA14U
SKU: RAMB149ZGA14

Share this item:

$29.95
List Price: ~~$35.17~~
You Save: $5.22 (15%)
Price shown in USD currency

In Stock! Ships by 3PM PST on Monday, 2009-11-09.

Qty:

This item is Brand New (not refurbished), and has a Lifetime Warranty (excluding electronic or lense components)

Found a lower price? Let us know!

Canadian Customers!
See this item at gpscity.ca

More Images...

JUMP TO: (Use these links to quickly jump down to a section of the page)

Accessories
Product Features

Customer Reviews
What's In The Box?

Product Videos
Product Tips

Family Tree
Alternative Units

GPSMAP 76CX 76CSX 96C ZINC U-BOLT MOUNT PRODUCT DETAILS

The RAM-B-149Z-GA14 Garmin GPSMAP 76C Color and 96 Series Motorcycle RAM Mount is a Marine Grade Aluminum Mount with a Zinc Coated U-Bolt Rail Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Garmin GPSMAP 76C Color and 96 Series mount to your optimum viewing position.

Garmin GPS Mount Options:

To help ensure you have the Garmin GPSMAP 76C, GPSMAP 76Cx, GPSMAP 76CSx and GPSMAP 96 Series Mount you require, take a look at the list of available RAM Garmin GPS mounts on the RAM-HOL-GA14 Series of Garmin GPSMAP 76C, GPSMAP 76Cx, GPSMAP 76CSx and GPSMAP 96 Cradles and Mounts Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-GA14 Garmin GPSMAP 76C, GPSMAP 76Cx, GPSMAP 76CSx and GPSMAP 96 Series Cradle.

Garmin GPS Mount Cradle Design:

The RAM-HOL-GA14 Garmin GPSMAP 76C and GPSMAP 96 Series RAM Mount Cradle is a High Strength Plastic Composite Cradle designed specifically to hold the Garmin GPSMAP 76C and GPSMAP 96 Series, including the following GPS units,

Garmin GPSMAP 76Cx
Garmin GPSMAP 76CSx
Garmin GPSMAP 76C
Garmin GPSMAP 76CS
Garmin GPSMAP 96
Garmin GPSMAP 96C

All cables can stay connected to the unit while in the RAM cradle.

The Garmin GPS 72, GPS 76, GPSMAP 76 and GPSMAP 76S WILL NOT fit this cradle. These units require the RAM-HOL-GA6 cradle.

Garmin GPS Mount Cradle Plate:

The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).

Garmin GPS Mount Arm Design:

The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).

Garmin GPS Mount Base Design:

The RAM-B-231Z RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Zinc Coated metal U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.

To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.

Note: If you are looking to use this mount in the elements, we suggest the RAM-B-231 Stainless Steel U-Bolt Mount.

For Small Rail Mounting:

For a smaller rail, you can purchase the RAP-319 RAM Mount Plastic U-Bolt Adapter for circular rails with diameter down to 0.5 inches.

For Larger Rail Mounting:

For a larger rail, you can purchase the RAM Mount Stainless Steel Large Rail U-Bolt for circular rails with diameter up to 1.25 inches.

GPSMAP 76CX 76CSX 96C ZINC U-BOLT MOUNT PRODUCT FEATURES	Back to Top

Warranty: Manufacturer's Life Time Warranty. Cradle Design: Custom Cradle for Garmin GPSMAP 76C and 96C Series. Cradle Material: Black High Strength Composite Plastic. Mount Material: Black Powder Coated Marine Grade Aluminum. Mount Ball Size: RAM 1 inch Solid Rubber Ball. Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint. Arm Type: RAM Arm with Dual 1 inch Sockets. Arm Length: Standard length of 3 inches between socket centers. Base Type: Motorcycle Handlebar Base or Universal Round Pipe Base with Zinc Coated U-Bolt. (0.75 to 1 inch wide) Common Applications: Motorcycle and ATV Mounts: Attaching to handlebars. Hiking Mounts: Attaching to hiking staffs. General Mounts: Attaching to available pipes or poles.

GPSMAP 76CX 76CSX 96C ZINC U-BOLT MOUNT WHAT'S IN THE BOX?	Back to Top

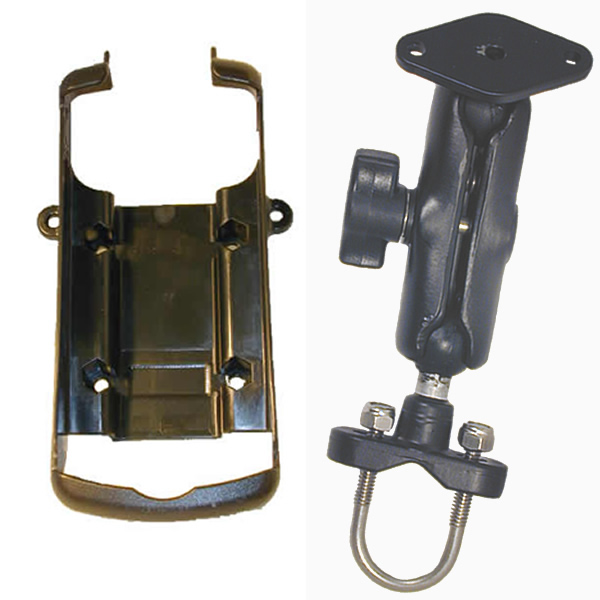

1. RAM Mount Garmin GPSMAP 76CSx 96C Cradle RAM-HOL-GA14U (RAM-HOL-GA14U) 2. RAM Mount Diamond Plate with 1 inch Ball RAM-B-238U (RAM-B-238U) 3. RAM Mount Medium Arm B-Socket RAM-B-201U (RAM-B-201U) 4. RAM Mount Zinc U-Bolt Motorcycle Mount Base RAM-B-231ZU (RAM-B-231ZU)

GPSMAP 76CX 76CSX 96C ZINC U-BOLT MOUNT CUSTOMER REVIEWS

Click here to Add Your Own Review. It's quick and easy! No login required.
wofmn wi. September 28, 2009	GREAT ATV GPS MT. Pros: stays where you put it Already own one, and bought a second one for my brother-in-law. I use it on my atv for trail riding and it holds gps very secure 3 out of 6 viewers found this review helpful. Was this review helpful to you? Yes No

Bob A. Reno Texas July 8, 2009	76CSX RAM MOUNT Fits 7/8" bars as well as 1". Doesn't work well with clip-ons but can be managed. No problems with vibration. 8 out of 16 viewers found this review helpful. Was this review helpful to you? Yes No

Gary Eagle River, Wi April 29, 2009	GREAT MOUNT Pros: parts are interchangeable between units Bolted on to my ATV handle bar and was adjustable for viewing of GPS, stayed locked in position with normal driving. 9 out of 18 viewers found this review helpful. Was this review helpful to you? Yes No

Rod San Diego, CA March 9, 2009	VERY GOOD Pros: everytghing Very well made, and super easy instalation !! Comes with everything that you need, and also different fittings.... Recommend it for sure !! 9 out of 18 viewers found this review helpful. Was this review helpful to you? Yes No

Bob Leona Valley CA March 4, 2009	GPS MOUNT I used this on my Dual Sport bike easy installation and worked great. It holds the Gps firm and did not move in 300 miles of use. This is the way to go. 10 out of 19 viewers found this review helpful. Was this review helpful to you? Yes No

Bob Stauth November 16, 2008	RAM MOUNT FOR GPSMAP 76CSX This is the second Ram Mount I have purchased. One is on my Suzuki King Quad, the other is dash mounted on my Yamaha Rhino. I was very happy with how the mount held my GPS in position on my quad, even through the very rough terrain, which lead me purchase the second one for the Rhino. The Ram mount is a good product in my opinion. 36 out of 71 viewers found this review helpful. Was this review helpful to you? Yes No

GPSMAP 76CX 76CSX 96C ZINC U-BOLT MOUNT ALTERNATIVE UNITS


RAM MOUNT GPSMAP 76Cx 76CSx 96C Zinc U-Bolt Mount	RAM MOUNT GPSMAP 76Cx 76CSx 96C Stainless Steel U-Bolt Mount	RAM MOUNT GPSMAP 76Cx 76CSx 96C Handlebar Rail Mount
