See more Lowrance items. |
| |
| Our Price: |
$1899.00
Minimum Advertised Price. What's this?
|
Availability: |
Special Order Item.
Ships in 1 to 2 weeks. |
| | |
| Model: |
Lowrance 4G Broadband Radar Kit |
| Part No: |
000-10419-001 (also LOW-10800-001) |
| Condition: |
Brand New, Full Manufacturer Warranty |
|
| Price Match: |
Get a Quick Price Match for this item (during business hours). |
|
Tutorial Videos |
| We handcraft videos daily to help you learn more about the functionality of the items we sell. View a list of the GPS City videos. Visit our Youtube channel. Suggest a video via our feedback form. |
| We have not yet produced any videos for the 4G Broadband Radar Kit. If you would like to suggest a video for this item, we'd love to hear your suggestion! Please submit your suggestion via our feedback form. We review all suggestions and will do our best to provide a response in a timely manner. |
|
Questions and Answers (Q&As) |
Got a question about the Lowrance 4G Broadband Radar Kit? Click this link to enter your question. No login required. Our tech staff moderates this Q&A and will typically respond within 24 hours (72 hours if a weekend). Visitors are also welcome to chime in at your convenience.
|
There are currently no Q&A's posted for this item. Feel free to post a question you have about this item. |
|
What's Included In The Box? |
The Lowrance 4G Broadband Radar Kit ships with the following items included:- 4G Radar Dome for HDS Systems
- 10m (33ft) Radar Cable
- Data Cable
- Interface Box NMEA 2000
- Ethernet adapter cable 2m (6.5 ft)
- Mounting Kit Hardware
- Installation Template
- Owners manual
|
Product Information |
| Manufacturer: |
Lowrance |
Category: |
Accessories |
Type: |
Marine Radar |
| Model: |
000-10419-001 |
SKU: |
LM-RADARBB4G |
UPC: |
9420024110997 |
| Announced: |
August 20, 2011 |
First Shipped: |
March 22, 2012 |
Weight: |
35.000 lbs. |
Gallery of Customer Images |
| Customer submitted images of the Lowrance 4G Broadband Radar Kit in action. You can also view our entire gallery or add your own gallery item. Special limited time offer - get a free t-shirt with every approved submission with pictures. |
There are currently no gallery items for the Lowrance 4G Broadband Radar Kit. |
|
Customer Reviews |
| View all reviews. Or click here to Add Your Own Review. It's quick and easy. No login required. |
|
There are currently no reviews for the Lowrance 4G Broadband Radar Kit.
|
Family Series |
Lowrance 3G Broadband Radar Kit |
Lowrance 4G Broadband Radar Kit | | | | |
|
Manufacturer Description |
BEAM SHARPENING
The only dome radar in the world to employ beam sharpening. Now you receive the benefits of unprecedented target separation from a radome, which allows you to see the sharpest images possible when you need them most.
MORE RANGE
With 50% more true range than Broadband 3G™ Radar, you can see crystal clear targets at up to 32nm and inside strong storm cells at up to 17nm.

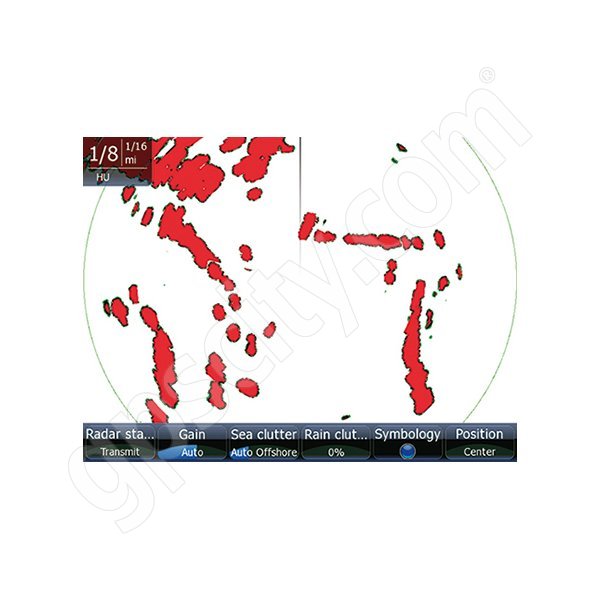

UNRIVALLED SHORT-RANGE TARGET DISCRIMINATION
With twice the azimuth resolution of any other 18" radome on the market, moored vessels, docks, channel markers and other critical targets are displayed with pronounced clarity and separation.
ZERO MAIN BANG – VISION WHERE YOU NEED IT MOST
Broadband Radar™ technology eliminates the "main bang" – obscured viewing "dead zone" immediately around the boat - associated with pulse radar. Now you can see targets close-in for the safest navigation of harbours, estuaries and marinas.
LOW RF TRANSMISSION FOR SAFE, FLEXIBLE INSTALLATION
Transmitting less than 1/5 the power of an average mobile phone and 1/10,000 the power of a typical pulse radar, Broadband 4G™ Radar can be safely mounted anywhere onboard your boat.
INSTANT NAVIGATION
No need to wait 2-3 minutes for a magnetron to warm up. Broadband Radar technology is 100% solid-state, providing navigation in seconds with InstantOn™ technology.
|
Features and Tips |
Here is a listing we have put together of some of the common 4G Broadband Radar Kit features,
along with a few user tips that you may find of help for this particular item. |
General
-
Compliance FCC/IC/R&TTE FCC ID: RAY3G4G IC ID: 4697A-3G4G Human Exposure General Public Safety Limit - touch dome anywhere
-
Environmental IEC60945 4th edition 2002-2008 Operating Temperature: -25° to +55°C Relative humidity: +35°C, 95% RH Waterproof: IPX6
-
Relative wind velocity 51 m/sec (Max:100 Knots)
-
Power consumption Operating: 20W (Typ.) @ 13.8VDC(21W in dual range mode) Standby: 3.3W (Typ.) @ 13.8VDC ~ 150ma
-
DC input (at end of radar cable) 9V to 31.2Vdc (12/24 Volt systems). Reverse polarity protection Minimum start-up voltage 10.8Vdc
-
Transmitter Source (pre-heating time) No magnetron - Instant On
-
Outside dimensions Height 280mm (11.02”) x Diameter 488mm (19.28”)
-
Weight (no cable) 7.4 kg (16.3 lbs.)
Radar and Antenna Parameters
-
Radar Ranges 50m (200ft) to 66km (36nm) with 18 range settings (nm/sm/km) - single and dual range mode (independant)
-
Rotation 24/36/48rpm +/- 10%; Mode and MFD model dependant
-
Transmitter frequency X-band - 9.3 to 9.4Ghz
-
Transmitter source(warm-up time) No Magnetr - all solid state. Instant On
-
Plane of polarization Horizontal Polarization
-
Transmitter peak power output (at antenna port) 165mW (nominal - at antenna port)
-
Main Bang Dead Zone & Tuning None (not a pulse radar)
-
Sea and Rain Clutter 3-5 times less than a pulse radar
-
Sweep Repetition Frequency 200 - 540Hz (mode dependant)
-
Sweep Time 1.3ms +/- 10%
-
Sweep Bandwidth 75MHz max
-
Horizontal Beam width (Tx and Rx antenna) 5.2° +/- 10% (-3dB width)
-
Vertical Beam width (Tx and Rx antenna) 25° +/- 20% (-3dB width)
-
Side lobe level (Tx and Rx antenna) Below -18dB (within ±10°); Below -24dB (outside ±10°)
-
Noise figure Less than 6dB
Coms/Cabling/Mounting
-
Com Protocol High Speed Ethernet (100 Base-T)
-
Heading NMEA2000/Simnet (with RI-10 interface box)
-
Inter Connecting cable length 10m (33’)
-
Maximum Inter Connecting cable length 30m (98.4’) - available as an option
-
Bolts (4) M8x30 - 304 stainless steel
-
Footprint W233.0mm (9.17”) (port to starboard) x L141.5mm (5.57”)
|
