RAM Mount RAM-B-166-125U Extension Plate Locking Suction Cup Mount Aluminum


RAM Mount 3.25 inch Locking Suction with Extension Plate Assembly
Customer Images
Share your images and get a
free gpscity.com t-shirt!
Not yet rated.    Email:  Email the RAM Mount 3.25 inch Locking Suction with Extension Plate Assembly page     Print:  Print the RAM Mount 3.25 inch Locking Suction with Extension Plate Assembly page
See more RAM Mount items.

List Price: $42.09
Our Price: $35.95 (and this item ships for $4.99)
You Save: $6.14 (15%)

Availability:

In Stock.
Ships tomorrow, May 29.


Qty:

Model: RAM Mount 3.25 inch Locking Suction with Extension Plate Assembly
Part No: RAM-B-166-125U
Condition: Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses)
Price Match: Get an Instant Price Match in about 5 minutes (during business hours).

Learn More with our Instructional Videos

 » See our list of GPS City videos. Visit our Youtube channel.
RAM Extension Plate Angled: Overview (RAM-B-125B) Video
RAM Extension Plate Angled: Overview (RAM-B-125B)
(954 views)
RAM Medium Arm: Overview (RAM-B-201U) Video
RAM Medium Arm: Overview (RAM-B-201U)
(21,942 views)
RAM Diamond Plate: Overview (RAM-B-238U) Video
RAM Diamond Plate: Overview (RAM-B-238U)
(21,627 views)
RAM AMPS Hole Pattern: Explained Video
RAM AMPS Hole Pattern: Explained
(8,035 views)
RAM Mount Plate: Overview (RAM-B-347) Video
RAM Mount Plate: Overview (RAM-B-347)
(4,910 views)

RAM Mount Sub-Component Breakdown

Here are the sub-component parts that make up this item:

Extension Cradle Plate with Ball RAM-B-125BU
+
Medium Arm B-Socket RAM-B-201U
+
Diamond Plate with 1 inch Ball RAM-B-238U
+
Locking Suction Mount Base RAP-224-1U

Most Popular 3.25 inch Locking Suction with Extension Plate Assembly Accessories

 » View the complete accessory list for the RAM Mount 3.25 inch Locking Suction with Extension Plate Assembly.
Go to the GPS City Super Grip Dashboard Friction Mount Base
GPS City Super Grip Dashboard Friction Mount Base
$14.95
Go to the RAM Mount Black Rose Adhesive Plate for Suction Cups
RAM Mount Black Rose Adhesive Plate for Suction Cups
$6.95
Go to the RAM Mount Black Large Adhesive Plate for Suction Cups
RAM Mount Black Large Adhesive Plate for Suction Cups
$6.95
Go to the RAM Mount Clear Large Adhesive Plate for Suction Cups
RAM Mount Clear Large Adhesive Plate for Suction Cups
$5.95
Go to the RAM Mount RAM-A-CAN II Vehicle Cup Flat Surface Base
RAM Mount RAM-A-CAN II Vehicle Cup Flat Surface Base
$27.95


What's Included In The Box?

The RAM Mount 3.25 inch Locking Suction with Extension Plate Assembly ships with the following items included:


Product Information

Manufacturer: National Products, Inc Category: All Purpose Mounts Type: Plate Mounts
Model: RAM-B-166-125U SKU: RAMB166-125 UPC:
Announced: November 30, 1999 First Shipped: February 18, 2003 Weight: 0.788 lbs.

Manufacturer Description

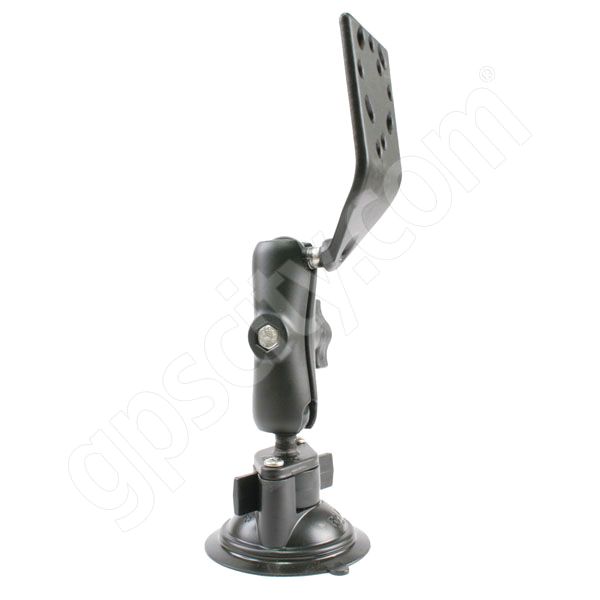

The RAM-B-166-125 Marine Grade Aluminum Mount with 3.25 inch Locking Suction Base consists of the 1 inch diameter ball and socket system with RAM Universal Extension Plate. This mount is designed to be a universal mounting solution for both RAM and non-RAM designed products. The hole pattern found on the Extension Plate will connect to a large variety of third party cradles and mounts.

Mount Extension Plate Design


The RAM-B-125B Marine Grade Aluminum Extension Plate with 1 inch Rubber Ball allows you to maneuver your GPS unit, or any connected device, in more positions than the standard mounting plate. Originally designed to position your GPS in front of the yoke on your plane, the extension plate can also be used in many other applications.

The end of the plate is 2.5 inches square with predrilled holes for many different screw hole patterns, including the universal AMPS hole pattern and all RAM made cradles. The plate extends approximately 2.25 inches forward, at a 45 degree angle, from the center of the 1 inch ball and approximately 1.5 inches above the 1 inch ball (to the bottom of the connection section of the plate).

Mount Arm Design:

The RAM-B-201 Powder Coated Marine Grade Aluminum Standard Length Double Socket Arm is 3.0 inches long when measured between socket centers.

Mount Base Design:


The RAM-B-224-1 RAM Mount Plastic Locking 3.25 inch diameter Rubber Suction Cup Base, with Marine Grade Aluminum Diamond Plate, is designed to have an extra strong hold on any smooth non-porous surface. With a twist on the locking knob, the suction cup base adheres to any glass¹ or non-porous plastic surface, as found on our Non Skid Base with Plastic Disk and Plastic Adhesive Disk.

Connected to the top of the Suction Cup is a RAM-B-238 RAM Mount Marine Grade Aluminum Diamond Plate with 1 inch diameter Rubber Ball. This plate allows the suction cup to join to an open socket found on the RAM 1 inch diameter socket arms.

¹ Important legal note to California and Minnesota Drivers

Suction Cup Base Mounting Options:

We currently offer three alternative solutions for mounting your suction cup mount in a location other than a windshield:
  • The Super Grip Non Skid Base with round plastic plate, is a weighted base that can be placed on your dash without an adhesive or drilling. Simply place the base on your dash, or any flat surface and then attach the suction cup to the round plastic plate. This is perfect when you want a temporary mounting solution but the windshield mount just isn't the answer.

  • The Suction Cup Adhesive Disk with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply stick the the plate to any flat surface and then attach the suction cup to the plate. This is perfect when you need to attach your suction cup mount to your car dash vertically or horizontally, rather than to your windshield.

  • The Suction Cup Drink Cup Holder with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply place the base into any cup holder in your vehicle and then attach the suction cup to the plate found on top. This is perfect when you need to attach your suction cup mount away from the windshield or when you just want the mount off the dash.
