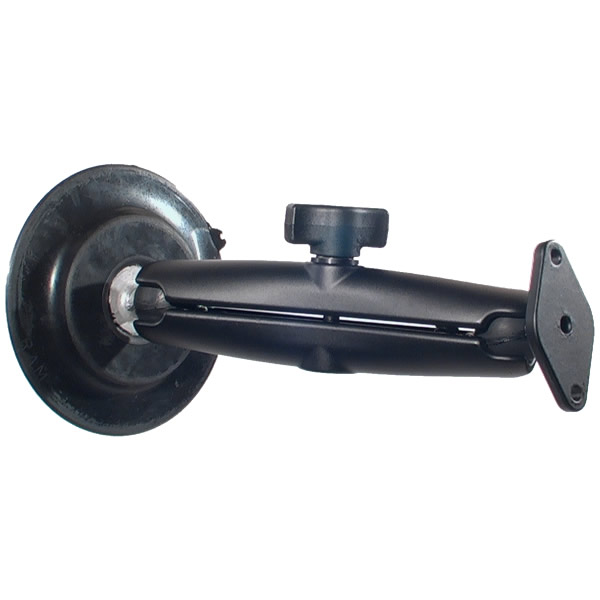

RAM Mount RAM-B-148-CU Rubber 4'' Suction Cup with Aluminum Long Arm and Diamond Plate Assembly


RAM Mount 4 inch dia Suction with Long Arm Diamond Assembly
Customer Images
Share your images and get a
free gpscity.com t-shirt!
Not yet rated.    Email:  Email the RAM Mount 4 inch dia Suction with Long Arm Diamond Assembly page     Print:  Print the RAM Mount 4 inch dia Suction with Long Arm Diamond Assembly page
See more RAM Mount items.

List Price: $50.23
Our Price: $42.95
You Save: $7.28 (14%)

Availability:

In Stock.
Ships tomorrow, May 29.


Qty:

Model: RAM Mount 4 inch dia Suction with Long Arm Diamond Assembly
Part No: RAM-B-148-CU
Condition: Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses)
Price Match: Get an Instant Price Match in about 5 minutes (during business hours).

Learn More with our Instructional Videos

 » See our list of GPS City videos. Visit our Youtube channel.
RAM Diamond Plate: Overview (RAM-B-238U) Video
RAM Diamond Plate: Overview (RAM-B-238U)
(21,627 views)
RAM AMPS Hole Pattern: Explained Video
RAM AMPS Hole Pattern: Explained
(8,035 views)
RAM Mount Plate: Overview (RAM-B-347) Video
RAM Mount Plate: Overview (RAM-B-347)
(4,910 views)
RAM Long Arm: Overview (RAM-B-201U-C) Video
RAM Long Arm: Overview (RAM-B-201U-C)
(2,097 views)

Check out our

channel.

RAM Mount Sub-Component Breakdown

Here are the sub-component parts that make up this item:

Diamond Plate with 1 inch Ball RAM-B-238U
+
Long Arm B-Socket RAM-B-201U-C
+
4 inch dia Suction Base with 1 inch Ball RAM-B-224U


What's Included In The Box?

The RAM Mount 4 inch dia Suction with Long Arm Diamond Assembly ships with the following items included:


Product Information

Manufacturer: National Products, Inc Category: All Purpose Mounts Type: Cradle Mounts
Model: RAM-B-148-CU SKU: RAMB148-C UPC:
Announced: November 30, 1999 First Shipped: August 1, 2001 Weight: 0.831 lbs.

RAM Mount 4 inch dia Suction with Long Arm Diamond Assembly Alternative Models

RAM Mount 4 inch dia Suction with Standard Arm Diamond Assembly
RAM Mount 4 inch dia Suction with Standard Arm Diamond Assembly
RAM Mount Plastic Cradle Plate Dual Lite Suction Mount
RAM Mount Plastic Cradle Plate Dual Lite Suction Mount
RAM Mount Cradle Plate Suction Mount RAM-B-166U
RAM Mount Cradle Plate Suction Mount RAM-B-166U
RAM Mount Diamond Plate Suction Mount RAP-B-166U
RAM Mount Diamond Plate Suction Mount RAP-B-166U


Manufacturer Description

The RAM Marine Grade Aluminum Mount with 4'' Large Rubber Suction Base consists of the 1'' dia. ball and socket system with RAM Universal Diamond Plate. This mount is designed to be a universal mounting solution for both RAM and non-RAM designed products. The hole pattern found on the Diamond Plate will connect to a large variety of third party cradles and mounts.

BASE DESIGN:

The large 4 inch Rubber Suction Cup base has a 1.0'' diameter Rubber Ball connected at right angles. The suction cup is designed to hold on any smooth non-porous surface, but for best result, mount the suction cup on a glass surface ¹ . For a layout of the suction cup dimensions and design, take a closer look with the RAM-B-224 Large Suctiobn Cup Base Design Drawings (pdf file).

¹ Important legal note to California and Minnesota Drivers

Note: Overtime the suction cup may become dirty, and not hold as well. If this happens, you will need to wash it in warm soapy water, and the mounting surface may need to be wiped with a cleaner (alcohol works best). Be sure to test a small area of the mounting surface before applying a cleaner as they can mark or discolor some materials (like plastic).

ARM DESIGN:
The Powder Coated Marine Grade Aluminum LONG Double Socket Arm is 5.25'' long when measured between socket centers.

END PLATE DESIGN:

The RAM-B-238 Powder Coated Marine Grade Aluminum Universal Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 1 1/4 x 2 1/2 inch Diamond Plate. The plate has two pre-drilled holes positioned at either tip of the diamond plate. The hole pattern found on the Diamond Plate will connect to a large variety of RAM Mount and third party cradles and mounts, including those with the industry standard AMPS hole pattern. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
