RAM Mount RAM-B-166-G1 AMPS Four Hole Plate Locking Suction Cup Mount Aluminum


RAM Mount AMPS 4 Hole Plate Locking Suction Cup Mount
Customer Images
Share your images and get a
free gpscity.com t-shirt!
Customer Rating: (based on 1 reviews).    Email:  Email the RAM Mount AMPS 4 Hole Plate Locking Suction Cup Mount page     Print:  Print the RAM Mount AMPS 4 Hole Plate Locking Suction Cup Mount page
100% of our reviewers recommend this item. See more RAM Mount items.

List Price: $38.86
Our Price: $31.95 (and this item ships for $3.49)
You Save: $6.91 (18%)

Availability:

In Stock.
Ships today, February 14.


Qty:

Model: RAM Mount AMPS 4 Hole Plate Locking Suction Cup Mount
Part No: RAM-B-166-G1
Condition: Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses)
Price Match: Get an Instant Price Match in about 5 minutes (during business hours).

Learn More with our Instructional Videos   (More GPS City videos. Visit our Youtube channel.)
Universal Plate Connector: In the Box (RAM-B-202-G1) Video
Universal Plate Connector: In the Box (RAM-B-202-G1)
(332 views)
Universal Plate Connector: Garmin Cradle (RAM-B-202-G1) Video
Universal Plate Connector: Garmin Cradle (RAM-B-202-G1)
(571 views)
RAM Medium Arm: Overview (RAM-B-201U) Video
RAM Medium Arm: Overview (RAM-B-201U)
(20,627 views)
RAM Diamond Plate: Overview (RAM-B-238U) Video
RAM Diamond Plate: Overview (RAM-B-238U)
(20,283 views)
RAM AMPS Hole Pattern: Explained Video
RAM AMPS Hole Pattern: Explained
(6,604 views)

RAM Mount Sub-Component Breakdown
Here are the sub-component parts that make up this item:

Universal Hardware and Round Plate Cradle RAM-B-202-G1U
+
Medium Arm B-Socket RAM-B-201U
+
Diamond Plate with 1 inch Ball RAM-B-238U
+
Locking Suction Mount Base RAP-224-1U

Most Popular RAM Mount AMPS 4 Hole Plate Locking Suction Cup Mount Accessories     (View all accessories.)
Go to the GPS City Super Grip Dashboard Friction Mount Base
GPS City Super Grip Dashboard Friction Mount Base
$14.95
Go to the RAM Mount Black Rose Adhesive Plate for Suction Cups
RAM Mount Black Rose Adhesive Plate for Suction Cups
$5.72
Go to the RAM Mount Black Large Adhesive Plate for Suction Cups
RAM Mount Black Large Adhesive Plate for Suction Cups
$4.41
Go to the RAM Mount Clear Large Adhesive Plate for Suction Cups
RAM Mount Clear Large Adhesive Plate for Suction Cups
$4.41
Go to the RAM Mount RAM-A-CAN II Vehicle Cup Flat Surface Base
RAM Mount RAM-A-CAN II Vehicle Cup Flat Surface Base
$27.95


What's Included In The Box?

The RAM Mount AMPS 4 Hole Plate Locking Suction Cup Mount ships with the following items included:


Product Information
Manufacturer: National Products, Inc Category: All Purpose Mounts Type: GPS Mounts
Model: RAM-B-166-G1 SKU: RAMB166G1 UPC: 793442901072
Announced: November 30, 1999 First Shipped: August 10, 2001 Weight: 0.706 lbs.

RAM Mount AMPS 4 Hole Plate Locking Suction Cup Mount Description

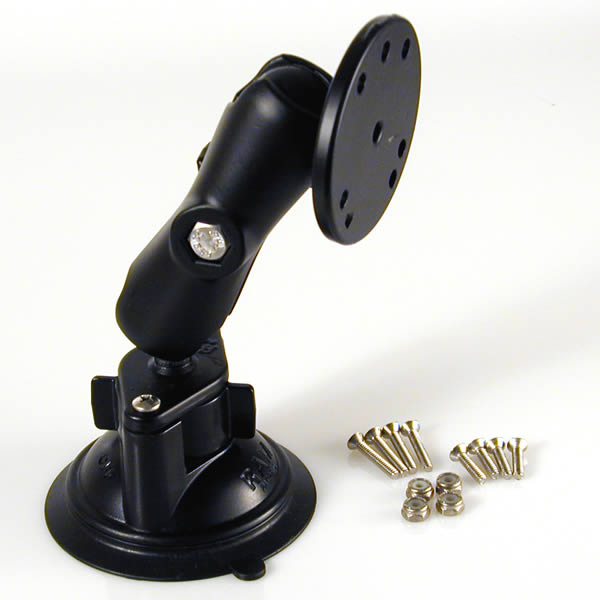

The RAM-B-166-G1 RAM Mount Marine Grade Aluminum Mount, with Plastic Locking Suction Cup Base, consists of the 1 inch diameter ball and socket system with RAM Universal 2.5 inch diameter plate and connection hardware. This mount is designed to be a universal mounting solution for both RAM and non-RAM designed products. The hole pattern found on the connection 2.5 inch diameter plate will connect to a large variety of third party cradles and mounts.

Mount Cradle Design:


The RAM-B-202-G1 RAM Mount Aluminum 2.5 inch diameter round plate, with connection plate hardware, has an AMPS hole pattern which will connect to many different cradles. The plate ships with a set of short and long nuts and bolts to connect the plate to your required cradle, and many other devices. This RAM Mount plate will connect to many different cradles made by Garmin with an AMPS four hole pattern, including the following:
Note: The Garmin cradles listed are included with the purchase of each GPS unit, or can purchased separately.

* The Garmin cradle for the GPSMAP 176, GPSMAP 176C, GPSMAP 276C, GPSMAP 196 (only the cradle on the yoke mount) and GPSMAP 296 (only the cradle on the yoke mount) will connect to this RAM mount, by unscrewing the cradle from the mount. For an even stronger holding cradle, you can purchase the cradle manufactured by RAM (RAM-HOL-GA7).

Mount Arm Design:


The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).

Mount Base Design:


The RAM-B-224-1 RAM Mount Plastic Locking 3.25 inch diameter Rubber Suction Cup Base, with Marine Grade Aluminum Diamond Plate, is designed to have an extra strong hold on any smooth non-porous surface. With a twist on the locking knob, the suction cup base adheres to any glass¹ or non-porous plastic surface, as found on our Non Skid Base with Plastic Disk and Plastic Adhesive Disk.

Connected to the top of the Suction Cup is a RAM-B-238 RAM Mount Marine Grade Aluminum Diamond Plate with 1 inch diameter Rubber Ball. This plate allows the suction cup to join to an open socket found on the RAM 1 inch diameter socket arms.

¹ Important legal note to California and Minnesota Drivers

Suction Cup Base Mounting Options:

We currently offer three alternative solutions for mounting your suction cup mount in a location other than a windshield:
  • The Super Grip Non Skid Base with round plastic plate, is a weighted base that can be placed on your dash without an adhesive or drilling. Simply place the base on your dash, or any flat surface and then attach the suction cup to the round plastic plate. This is perfect when you want a temporary mounting solution but the windshield mount just isn't the answer.

  • The Suction Cup Adhesive Disk with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply stick the the plate to any flat surface and then attach the suction cup to the plate. This is perfect when you need to attach your suction cup mount to your car dash vertically or horizontally, rather than to your windshield.

  • The Suction Cup Drink Cup Holder with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply place the base into any cup holder in your vehicle and then attach the suction cup to the plate found on top. This is perfect when you need to attach your suction cup mount away from the windshield or when you just want the mount off the dash.
