Not yet rated. Email:
 Print:
See more RAM Mount items. |
| |
| List Price: |
$32.00 |
| Our Price: |
$26.95 (and this item ships for $3.49) |
| You Save: |
$5.05 (16%) |
Availability: |
In Stock.
Ships tomorrow, May 29. |
|
| |
|
|
| Model: |
RAM Mount AMPS Plate Locking Suction Cup Mount |
| Part No: |
RAM-B-166-347U |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Mount Plate: Overview (RAM-B-347)
(4,910 views) |
RAM AMPS Hole Pattern: Explained
(8,035 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,942 views) |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,627 views) |
Suction Mount Base: In Use (RAP-224-1U)
(5,682 views) |
|
Most Popular AMPS Plate Locking Suction Cup Mount Accessories
» View the complete accessory list for the RAM Mount AMPS Plate Locking Suction Cup Mount. |
GPS City Super Grip Dashboard Friction Mount Base
$14.95
|
RAM Mount Black Rose Adhesive Plate for Suction Cups
$6.95
|
RAM Mount Black Large Adhesive Plate for Suction Cups
$6.95
|
RAM Mount Clear Large Adhesive Plate for Suction Cups
$5.95
|
RAM Mount RAM-A-CAN II Vehicle Cup Flat Surface Base
$27.95
|
|
What's Included In The Box? |
The RAM Mount AMPS Plate Locking Suction Cup Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Plate Mounts |
| Model: |
RAM-B-166-347U |
SKU: |
RAMB166-347 |
UPC: |
793442910289 |
| Announced: |
September 1, 2008 |
First Shipped: |
September 1, 2008 |
Weight: |
0.669 lbs. |
Manufacturer Description |

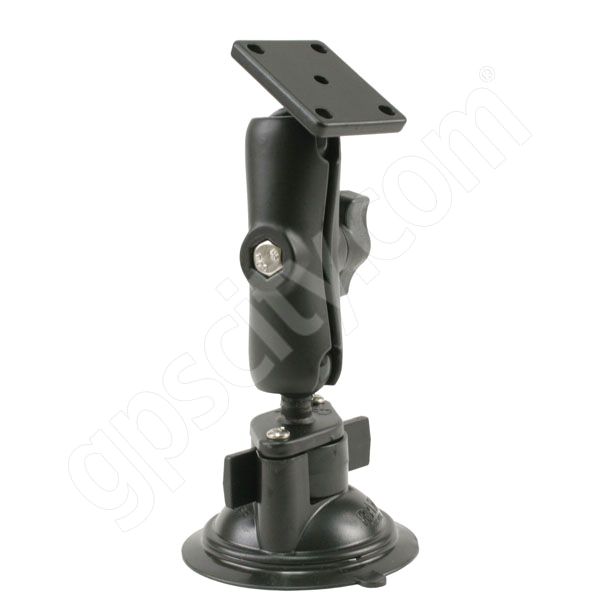

The RAM-B-166-347 consists if a RAM Mount 3.25 inch Plastic Locking Suction Base with Standard Arm and Rectangular AMPS Plate End. The mount is a Black Powder Coated Marine Grade Aluminum Assembly System which includes a 1 inch diameter ball and socket system. This mount is designed to be a universal mounting solution for both RAM and non-RAM designed products. The hole pattern found on the AMPS Plate will connect to a large variety of third party cradles and mounts, including those with the industry standard AMPS hole pattern.
Universal AMPS Mount Options:To help ensure you have the AMPS plate mount you require, take a look at the list of available Universal AMPS plate mounts on the RAM AMPS Plates and Mounts Page. Here you can select from AMPS suction cup mounts, flat surface screw down AMPS plate mounts, AMPS car mounts, motorcycle AMPS plate mounts and more bundled with the RAM Rectangular Universal AMPS Plate (RAM-B-347 or RAP-B-347).
Universal AMPS Mount Cradle Plate:The RAM-B-347 RAM Mount Marine Grade Aluminum Universal AMPS Plate has a 1.0 inch diameter rubber ball connected at right angles to a rectangular plate. The plate has pre-drilled holes in the in each corner which match the industry standard AMPS hole pattern of 1.188 x 1.5 inches. You can find the AMPS hole pattern on the back of many cradles or sometimes built into the back of many electronic devices.
Universal AMPS Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Universal AMPS Mount Base Design:
 The RAM-B-224-1 RAM Mount Plastic Locking 3.25 inch diameter Rubber Suction Cup Base, with Marine Grade Aluminum Diamond Plate, is designed to have an extra strong hold on any smooth non-porous surface. With a twist on the locking knob, the suction cup base adheres to any glass¹ or non-porous plastic surface, as found on our Non Skid Base with Plastic Disk and Plastic Adhesive Disk.
Connected to the top of the Suction Cup is a RAM-B-238 RAM Mount Marine Grade Aluminum Diamond Plate with 1 inch diameter Rubber Ball. This plate allows the suction cup to join to an open socket found on the RAM 1 inch diameter socket arms.
¹ Important legal note to California and Minnesota Drivers
Suction Cup Base Mounting Options:We currently offer three alternative solutions for mounting your suction cup mount in a location other than a windshield:
- The Super Grip Non Skid Base with round plastic plate, is a weighted base that can be placed on your dash without an adhesive or drilling. Simply place the base on your dash, or any flat surface and then attach the suction cup to the round plastic plate. This is perfect when you want a temporary mounting solution but the windshield mount just isn't the answer.
- The Suction Cup Adhesive Disk with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply stick the the plate to any flat surface and then attach the suction cup to the plate. This is perfect when you need to attach your suction cup mount to your car dash vertically or horizontally, rather than to your windshield.
- The Suction Cup Drink Cup Holder with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply place the base into any cup holder in your vehicle and then attach the suction cup to the plate found on top. This is perfect when you need to attach your suction cup mount away from the windshield or when you just want the mount off the dash.
|
Features & Tips |
Here is a listing we have put together of some of the common AMPS Plate Locking Suction Cup Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Universal AMPS rectangular connection plate.
- Cradle Material: Black Powder Coated Marine Grade Aluminum.
- Mount Material: Black Powder Coated Marine Grade Aluminum and Plastic and Rubber Locking Suction Cup.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: Round 3.25 inch diameter Locking Suction Cup for non-porous surfaces
- Common Applications:
|
