RAM Mount RAM-B-102-347 Aluminum Universal AMPS Plate Mini Screw Down Plate Mount


RAM Mount AMPS Plate Series Mini Screw Down Plate Mount
Customer Images
Share your images and get a
free gpscity.com t-shirt!
Not yet rated.    Email:  Email the RAM Mount AMPS Plate Series Mini Screw Down Plate Mount page     Print:  Print the RAM Mount AMPS Plate Series Mini Screw Down Plate Mount page
See more RAM Mount items.

List Price: $26.88
Our Price: $22.95 (and this item ships for $2.99)
You Save: $3.93 (15%)

Availability:

In Stock.
Ships tomorrow, May 29.


Qty:

Model: RAM Mount AMPS Plate Series Mini Screw Down Plate Mount
Part No: RAM-B-102-347
Condition: Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses)
Price Match: Get an Instant Price Match in about 5 minutes (during business hours).

Learn More with our Instructional Videos

 » See our list of GPS City videos. Visit our Youtube channel.
RAM Mount Plate: Overview (RAM-B-347) Video
RAM Mount Plate: Overview (RAM-B-347)
(4,910 views)
RAM AMPS Hole Pattern: Explained Video
RAM AMPS Hole Pattern: Explained
(8,035 views)
RAM Medium Arm: Overview (RAM-B-201U) Video
RAM Medium Arm: Overview (RAM-B-201U)
(21,942 views)
RAM Diamond Plate: Overview (RAM-B-238U) Video
RAM Diamond Plate: Overview (RAM-B-238U)
(21,627 views)

Check out our

channel.

RAM Mount Sub-Component Breakdown

Here are the sub-component parts that make up this item:

Rectangular AMPS Plate B-Ball RAM-B-347U
+
Medium Arm B-Socket RAM-B-201U
+
Diamond Plate with 1 inch Ball RAM-B-238U


What's Included In The Box?

The RAM Mount AMPS Plate Series Mini Screw Down Plate Mount ships with the following items included:


Product Information

Manufacturer: National Products, Inc Category: All Purpose Mounts Type: Cradle Mounts
Model: RAM-B-102-347 SKU: RAMB102-347 UPC:
Announced: September 1, 2008 First Shipped: September 1, 2008 Weight: 0.488 lbs.

Manufacturer Description

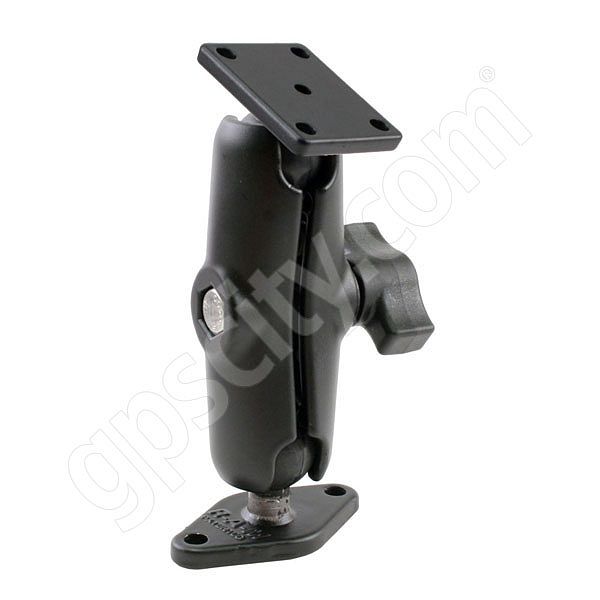

The RAM-B-102-347 Universal AMPS Plate RAM Mount is a Marine Grade Aluminum Mount with a Mini Flat Surface Screw Down Base and Rectangular AMPS Connection Plate. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the universal AMPS plate to your optimum viewing position.

Universal AMPS Mount Options:

To help ensure you have the AMPS plate mount you require, take a look at the list of available Universal AMPS plate mounts on the RAM AMPS Plates and Mounts Page. Here you can select from AMPS suction cup mounts, flat surface screw down AMPS plate mounts, AMPS car mounts, motorcycle AMPS plate mounts and more bundled with the RAM Rectangular Universal AMPS Plate (RAM-B-347 or RAP-B-347).

Universal AMPS Mount Cradle Plate:

The RAM-B-347 RAM Mount Marine Grade Aluminum Universal AMPS Plate has a 1.0 inch diameter rubber ball connected at right angles to a rectangular plate. The plate has pre-drilled holes in the in each corner which match the industry standard AMPS hole pattern of 1.188 x 1.5 inches. You can find the AMPS hole pattern on the back of many cradles or sometimes built into the back of many electronic devices.

Universal AMPS Mount Arm Design:


The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).

Universal AMPS Mount Base Design:


The RAM-B-238 Powder Coated Marine Grade Aluminum Universal Base Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 1 1/4 x 2 1/2 inch Diamond Plate. The plate has two pre-drilled holes positioned at either tip of the diamond plate. This is the perfect mounting solution when you need to mount your device with a small foot print. Great as a motorcycle mount when mounting on a small ledge or vehicle mount when you want to bolt inside your vehicle. This base needs to be bolted or screwed to the mounting surface. Mounting hardware is not included. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).


Features & Tips

Here is a listing we have put together of some of the common

AMPS Plate Series Mini Screw Down Plate Mount features

, along with a few user tips that you may find of help for this particular item.
  • Warranty: Manufacturer's Life Time Warranty.
  • Cradle Design: Universal AMPS rectangular connection plate.
  • Cradle Material: Black Powder Coated Marine Grade Aluminum.
  • Mount Material: Black Powder Coated Marine Grade Aluminum.
  • Mount Ball Size: RAM 1 inch Solid Rubber Ball.
  • Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
  • Arm Type: RAM Arm with Dual 1 inch Sockets.
  • Arm Length: Standard length of 3 inches between socket centers.
  • Base Type: Diamond shaped plate designed to be bolted to a flat surface with small foot print.
  • Common Applications:
    • Vehicle Mounts: Attaching to vehicle dash.
    • Motorcycle Mounts: Attaching to small ledge or flat surface on motorcycle console.
