Not yet rated. Email:
 Print:
See more RAM Mount items. |
| |
| List Price: |
$31.18 |
| Our Price: |
$28.95 (and this item ships for $3.49) |
| You Save: |
$2.23 (7%) |
Availability: |
In Stock.
Ships tomorrow, May 29. |
|
| |
| Model: |
RAM Mount AMPS Plate Zinc Coated U-Bolt Mount |
| Part No: |
RAM-B-149Z-347U (also RAM-B-149Z-347) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Mount Plate: Overview (RAM-B-347)
(4,910 views) |
RAM AMPS Hole Pattern: Explained
(8,035 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,942 views) |
RAM Motorcycle U-Bolt Base: On Suzuki (RAM-B-231ZU)
(25,286 views) |
RAM Motorcycle U-Bolt Base: In the Box (RAM-B-231ZU)
(2,086 views) |
|
What's Included In The Box? |
The RAM Mount AMPS Plate Zinc Coated U-Bolt Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Plate Mounts |
| Model: |
RAM-B-149Z-347U |
SKU: |
RAMB149Z-347 |
UPC: |
|
| Announced: |
September 1, 2008 |
First Shipped: |
September 1, 2008 |
Weight: |
0.682 lbs. |
Manufacturer Description |

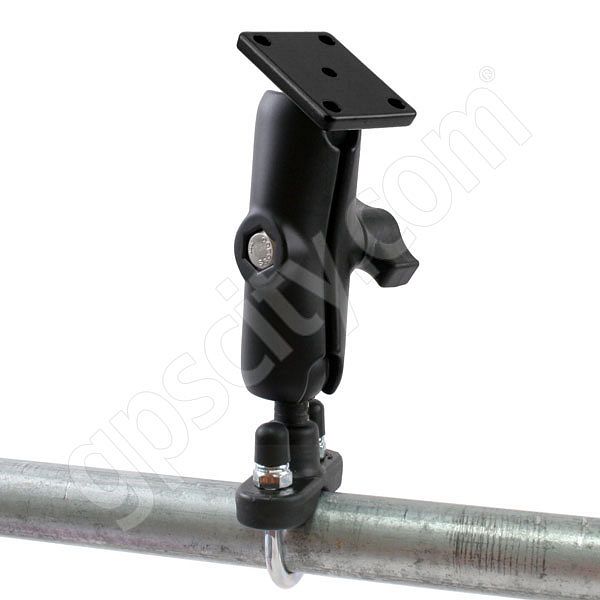

The RAM-B-149Z-347 Universal AMPS Plate Motorcycle RAM Mount is a Marine Grade Aluminum Mount with a Zinc Coated U-Bolt Rail Base and RAM Rectangular AMPS Connection Plate. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the universal AMPS plate to your optimum viewing position.
Universal AMPS Mount Options:To help ensure you have the AMPS plate mount you require, take a look at the list of available Universal AMPS plate mounts on the RAM AMPS Plates and Mounts Page. Here you can select from AMPS suction cup mounts, flat surface screw down AMPS plate mounts, AMPS car mounts, motorcycle AMPS plate mounts and more bundled with the RAM Rectangular Universal AMPS Plate (RAM-B-347 or RAP-B-347).
Universal AMPS Mount Cradle Plate:The RAM-B-347 RAM Mount Marine Grade Aluminum Universal AMPS Plate has a 1.0 inch diameter rubber ball connected at right angles to a rectangular plate. The plate has pre-drilled holes in the in each corner which match the industry standard AMPS hole pattern of 1.188 x 1.5 inches. You can find the AMPS hole pattern on the back of many cradles or sometimes built into the back of many electronic devices.
Universal AMPS Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Universal AMPS Mount Base Design:
 The RAM-B-231Z RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Zinc Coated metal U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
Note: If you are looking to use this mount in the elements, we suggest the RAM-B-231 Stainless Steel U-Bolt Mount.
|
Features & Tips |
Here is a listing we have put together of some of the common AMPS Plate Zinc Coated U-Bolt Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Universal AMPS rectangular connection plate.
- Cradle Material: Black Powder Coated Marine Grade Aluminum.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: Motorcycle Handlebar Base or Universal Round Pipe Base with Zinc Coated U-Bolt. (0.75 to 1 inch wide)
- Common Applications:
- Motorcycle and ATV Mounts: Attaching to handlebars.
- Hiking Mounts: Attaching to hiking staffs.
- General Mounts: Attaching to available pipes or poles.
|
