Customer Images
Share your images and get a
free gpscity.com t-shirt!
|
Not yet rated. Email:
 Print:
See more RAM Mount items. |
| |
| List Price: |
$36.35 |
| Our Price: |
$30.95 (and this item ships for $3.49) |
| You Save: |
$5.40 (15%) |
Availability: |
In Stock.
Ships today, February 14. |
|
| |
| Model: |
RAM Mount Apple iPod Nano G3 Series Pivot Suction Cup Mount |
| Part No: |
RAP-B-104-224-AP5 |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
| Learn More with our Instructional Videos (More GPS City videos.
Visit our Youtube channel.) |
RAM Apple iPod Nano G3 Cradle: In Use (RAM-HOL-AP5)
(432 views) |
RAM Suction Mount: Overview (RAP-B-104-224)
(1,738 views) |
See More Videos:
GPS City Video Page
 | | |
|
| Most Popular RAM Mount Apple iPod Nano G3 Series Pivot Suction Cup Mount Accessories
(View all accessories.) |
GPS City Super Grip Dashboard Friction Mount Base
$14.95
|
RAM Mount Black Rose Adhesive Plate for Suction Cups
$5.72
|
RAM Mount Black Large Adhesive Plate for Suction Cups
$4.41
|
RAM Mount Clear Large Adhesive Plate for Suction Cups
$4.41
|
RAM Mount RAM-A-CAN II Vehicle Cup Flat Surface Base
$27.95
|
|
| What's Included In The Box? |
The RAM Mount Apple iPod Nano G3 Series Pivot Suction Cup Mount ships with the following items included: |
| Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
iPod Mounts |
| Model: |
RAP-B-104-224-AP5 |
SKU: |
RAPB104-224AP5 |
UPC: |
|
| Announced: |
February 12, 2008 |
First Shipped: |
March 12, 2008 |
Weight: |
0.569 lbs. |
| RAM Mount Apple iPod Nano G3 Series Pivot Suction Cup Mount Description |

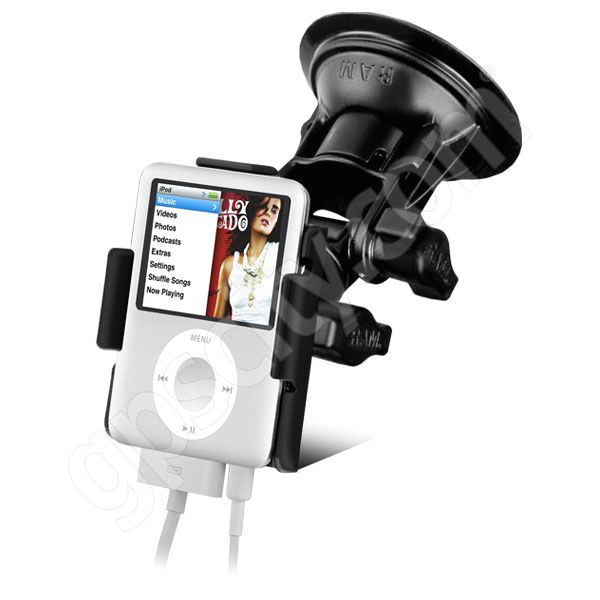

The RAP-B-104-224-AP5 Apple iPod Nano G3 Video Series Windshield Suction RAM Mount is a High Strength Plastic Composite Mount with a Locking Suction Cup Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system and a rotating pivot joint. With a twist of a knob, you can move the Apple iPod Nano G3 Video Series mount to your optimum viewing position.
Note: This mount does not require any drilling for installation.
Garmin GPS Mount Cradle Design:
The RAM-HOL-AP5 Apple iPod nano (3rd Generation) RAM Mount Cradle is a High Strength Plastic Composite Cradle designed specifically to hold the following iPods:
- Apple iPod Nano 4GB Video (3rd Generation),
- Apple iPod Nano 8GB Video (3rd Generation).
The cradle is open at the top and bottom to allow you to connect head phones and required cables plus use all of the required buttons.
If you are looking to mount the Apple iPod nano 1st and 2nd Generation you require the RAM-HOL-AP2 Series of Apple iPod nano Mounts.
 If you are unsure of what model iPod classic, iPod nano, iPod mini, iPod touch or iPhone you have, now you can review your Apple device features on our Apple iPod and iPhone Identify Page. Once you identify your Apple iPod or iPhone, you can the select the right mount for your model.
Garmin GPS Mount Cradle Plate:The RAP-B-238 RAM Mount High Strength Plastic Composite Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file) (Note: the Plastic RAP-B-238 Plate is thicker than the RAM-B-238 Design Drawings shown).
Garmin GPS Mount Arm Design:
 The RAP-B-200-1 RAM Mount Socket and Octagon Button Arm includes a 1 inch B size Ball Socket and is made of High Strength Plastic. The arm is 1.75 inches long when measured from socket center to button socket end. The side of the arm includes a tightening knob which allows you to open and close the socket ends.
Garmin GPS Mount Base Design: The RAP-224-2 RAM Mount High Strength Plastic Locking 3.25 inch diameter Rubber Suction Cup Base is designed to have an extra strong hold on any smooth non-porous surface. With a twist on the locking knob, the suction cup base adheres to any glass¹ or non-porous plastic surface, as found on our Super Grip Plastic Non Skid Base and Plastic Adhesive Disk.
Connected to the top of the RAM suction cup is a male RAM plastic octagon button with pivot connection. The pivot design allows the mount to tip from 0 to 90 degrees to the suction cup, while the octagon button connections allows the arm to rotate 360 degrees. The button end connects directly to a RAP-B-200-1 Plastic Arm with Socket and Female Button ends.
¹ Important legal note to California and Minnesota Drivers
Suction Cup Base Mounting Options:We currently offer three alternative solutions for mounting your suction cup mount in a location other than a windshield:
- The Super Grip Non Skid Base with round plastic plate, is a weighted base that can be placed on your dash without an adhesive or drilling. Simply place the base on your dash, or any flat surface and then attach the suction cup to the round plastic plate. This is perfect when you want a temporary mounting solution but the windshield mount just isn't the answer.
- The Suction Cup Adhesive Disk with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply stick the the plate to any flat surface and then attach the suction cup to the plate. This is perfect when you need to attach your suction cup mount to your car dash vertically or horizontally, rather than to your windshield.
- The Suction Cup Drink Cup Holder with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply place the base into any cup holder in your vehicle and then attach the suction cup to the plate found on top. This is perfect when you need to attach your suction cup mount away from the windshield or when you just want the mount off the dash.
Garmin GPS Mount Options:
To help ensure you have the Apple iPod Nano Video Mount (3rd Generation) you require, take a look at the list of available RAM Apple iPod Nano mounts on the Apple iPod Nano Video G3 Mount Page. Here you can select from iPod suction cup mounts, flat surface screw down iPod mounts, iPod car mounts, non skid weighted iPod mounts and more bundled with the RAM-HOL-AP5 Apple iPod Nano Video Cradle (3rd Generation).
|
| RAM Mount Apple iPod Nano G3 Series Pivot Suction Cup Mount Features & Tips |
Here is a listing we have put together of some of the common Apple iPod Nano G3 Series Pivot Suction Cup Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Custom Cradle for Apple iPod Nano G3 Video Series.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black High Strength Plastic Composite and Rubber Suction Cup.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint and Rotating Pivot Octagon Button.
- Arm Type: RAM Arm with 1 inch diameter Ball Socket and Octagon Button Socket.
- Arm Length: Standard length of 1.75 inches between 1 inch socket center and button socket edge.
- Base Type: Round 3.25 inch diameter Locking Suction Cup for non-porous surfaces.
- Common Applications:
|
