Customer Images
Share your images and get a
free gpscity.com t-shirt!
|
Not yet rated. Email:
 Print:
See more RAM Mount items. |
| |
| List Price: |
$44.09 |
| Our Price: |
$37.95 |
| You Save: |
$6.14 (14%) |
Availability: |
In Stock.
Ships tomorrow, May 29. |
|
| |
| Model: |
RAM Mount Camera Thread Long Motorcycle Mount RAM-B-149Z-C-C1U |
| Part No: |
RAM-B-149Z-C-C1U |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Camera Plate: Overview (RAM-B-202AU)
(2,684 views) |
RAM Long Arm: Overview (RAM-B-201U-C)
(2,097 views) |
RAM Motorcycle U-Bolt Base: On Suzuki (RAM-B-231ZU)
(25,286 views) |
RAM Motorcycle U-Bolt Base: In the Box (RAM-B-231ZU)
(2,086 views) |
RAM Motorcycle U-Bolt Base: Overview (RAM-B-231ZU)
(3,072 views) |
|
What's Included In The Box? |
The RAM Mount Camera Thread Long Motorcycle Mount RAM-B-149Z-C-C1U ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Camera Mounts |
| Model: |
RAM-B-149Z-C-C1U |
SKU: |
RAMB149ZCC1 |
UPC: |
|
| Announced: |
November 30, 1999 |
First Shipped: |
August 22, 2001 |
Weight: |
0.944 lbs. |
Manufacturer Description |

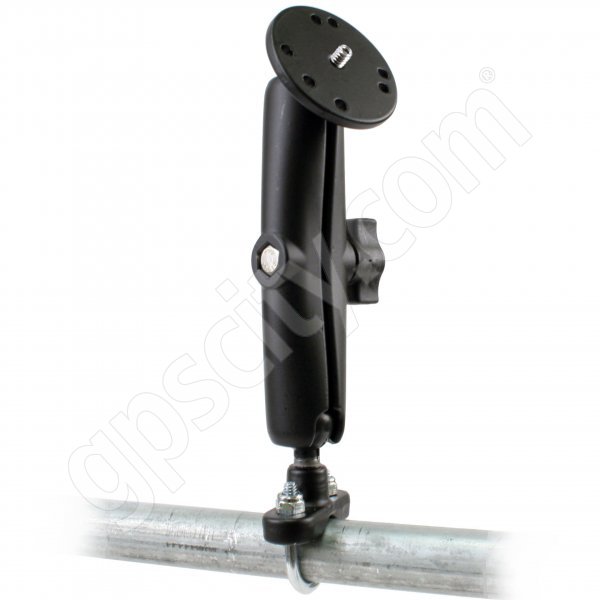

The RAM Marine Grade Aluminum Long Mount with Zinc Coated U-Bolt Rail Base consists of the 1 inch diameter ball and socket system with RAM Universal 1/4''-20 thread centered on a 2.5 inch diameter plate. This mount is designed to be a universal mounting solution for both still and moving cameras.
Camera Mount Cradle Design:
The RAM-B-202A RAM Mount Powder Coated Marine Grade Aluminum Universal Camera Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 2.5 inch diameter Plate with a centered 1/4''-20 thread. The plate adds support to thread, allowing a more stable connection with the camera.
Note: The male 1/4'' long, 1/4''-20 thread in the middle of the 2.5'' diameter plate will connect to the standard female thread found at the bottom of most still and video cameras. An alternative to this camera mounting system is the RAM-B-237 Male 1/4''-20 Threaded Ball.
Camera Mount Arm Design:
 The RAM-B-201-C RAM Mount Dual Socket Long Arm is a 1 inch B size Ball Dual Socket Arm made of Marine Grade Aluminum. The arm is 5.25 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201C arm, take a closer look with the RAM-B-201C Design Drawings (pdf file).
Camera Mount Base Design:
 The RAM-B-231Z RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Zinc Coated metal U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
Note: If you are looking to use this mount in the elements, we suggest the RAM-B-231 Stainless Steel U-Bolt Mount.
|
