| List Price: |
$27.08 |
| Our Price: |
$22.95 (and this item ships for $2.99) |
| You Save: |
$4.13 (15%) |
Availability: |
In Stock.
Ships tomorrow, May 29. |
|
| |
| Model: |
RAM Mount Camera Thread Zinc U-Bolt Short Mount RAM-B-101U-B-TE1 |
| Part No: |
RAM-B-101U-B-TE1 |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Camera Thread: Overview (RAM-B-237U)
(1,517 views) |
RAM Short Arm: Overview (RAM-B-201U-A)
(3,835 views) |
RAM Motorcycle U-Bolt Base: On Suzuki (RAM-B-231ZU)
(25,286 views) |
RAM Motorcycle U-Bolt Base: In the Box (RAM-B-231ZU)
(2,086 views) |
RAM Motorcycle U-Bolt Base: Overview (RAM-B-231ZU)
(3,072 views) |
|
What's Included In The Box? |
The RAM Mount Camera Thread Zinc U-Bolt Short Mount RAM-B-101U-B-TE1 ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Camera Mounts |
| Model: |
RAM-B-101U-B-TE1 |
SKU: |
RAMB101B-TE1 |
UPC: |
793442101014 |
| Announced: |
January 1, 2008 |
First Shipped: |
January 1, 2008 |
Weight: |
0.494 lbs. |
Manufacturer Description |

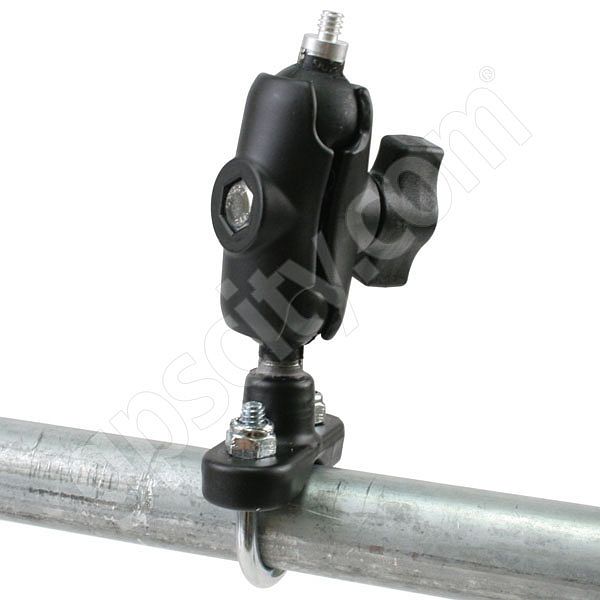

The RAM-B-101-B-TE1 Camera Short Motorcycle RAM Mount is a Marine Grade Aluminum Mount with a Zinc Coated U-Bolt Rail Base and RAM Camera Thread End. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the short camera mount to your optimum viewing position.
Camera Mount Cradle Plate:
The RAM-B-237 Marine Grade Aluminum Universal Camera and Camcorder Thread Holder has a 1.0 inch diameter rubber ball connected to a male 1/4-20 camera thread. This male thread matches most standard camera and camcorder female threads found on the bottom of the camera.
Camera Mount Arm Design:
 The RAM-B-201-A RAM Mount Dual Socket Short Arm is a 1 inch B size Ball Dual Socket Arm made of Marine Grade Aluminum. The arm is 1.75 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201A arm, take a closer look with the RAM-B-201A Design Drawings (pdf file).
Camera Mount Base Design:
 The RAM-B-231Z RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Zinc Coated metal U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
Note: If you are looking to use this mount in the elements, we suggest the RAM-B-231 Stainless Steel U-Bolt Mount.
|
Features & Tips |
Here is a listing we have put together of some of the common Camera Thread Zinc U-Bolt Short Mount RAM-B-101U-B-TE1 features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Camera 1/4-20 Thread End.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Short length of 1.75 inches between socket centers.
- Base Type: Motorcycle Handlebar Base or Universal Round Pipe Base with Zinc Coated U-Bolt. (0.75 to 1 inch wide)
- Common Applications:
- Motorcycle and ATV Mounts: Attaching to handlebars.
- Hiking Mounts: Attaching to hiking staffs.
- General Mounts: Attaching to available pipes or poles.
|
