See more RAM Mount items. |
| |
| List Price: |
$55.86 |
| Our Price: |
$47.95 |
| You Save: |
$7.91 (14%) |
Availability: |
In Stock.
Ships tomorrow, May 29. |
|
| |
| Model: |
RAM Mount Dual Locking Suction Camera Mount with Standard Arm |
| Part No: |
RAM-B-166-1-202A |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Camera Plate: Overview (RAM-B-202AU)
(2,684 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,942 views) |
RAM Rectangular Plate: Comparison Overview
(2,142 views) |
RAM Round Plate: Overview (RAM-B-202U)
(8,293 views) |
RAM AMPS Hole Pattern: Explained
(8,035 views) |
|
What's Included In The Box? |
The RAM Mount Dual Locking Suction Camera Mount with Standard Arm ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Camera Mounts |
| Model: |
RAM-B-166-1-202A |
SKU: |
RAMB166-1202A |
UPC: |
|
| Announced: |
January 1, 2007 |
First Shipped: |
January 1, 2007 |
Weight: |
1.212 lbs. |
Manufacturer Description |

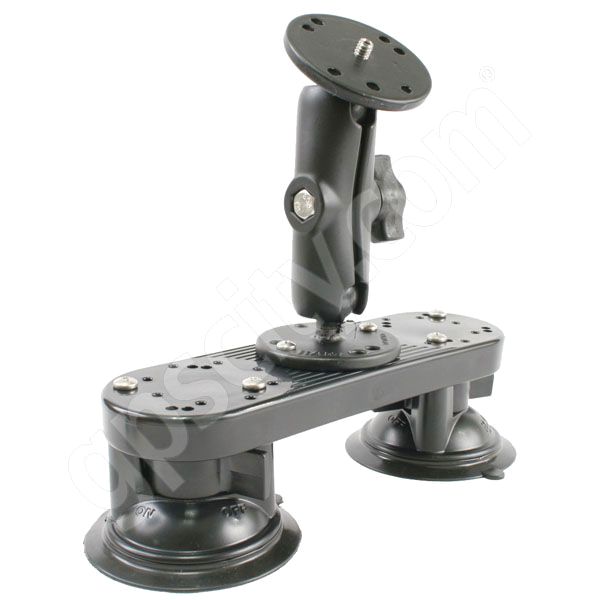

The RAM Mount Black Powder Coated Marine Grade Aluminum Camera Mount includes a 1 inch diameter ball and socket system with a DUAL 3.25 inch diameter Plastic Locking Suction Base and a RAM Universal Camera Thread Plate End.
This mount is designed to be a universal mounting solution for both still and moving cameras with a standard female camera thread.
Camera Mount Cradle Design:
The RAM-B-202A RAM Mount Powder Coated Marine Grade Aluminum Universal Camera Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 2.5 inch diameter Plate with a centered 1/4''-20 thread. The plate adds support to thread, allowing a more stable connection with the camera.
Note: The male 1/4'' long, 1/4''-20 thread in the middle of the 2.5'' diameter plate will connect to the standard female thread found at the bottom of most still and video cameras. An alternative to this camera mounting system is the RAM-B-237 Male 1/4''-20 Threaded Ball.
Camera Mount Arm Design:The RAM Mount Powder Coated Marine Grade Aluminum Dual Socket Arm (RAM-B-201) is 3.0'' long when measured between socket centers.
Camera Mount Base Design:
 The RAM-B-224-333 RAM Mount Dual Locking Suction Cup Base with 1.0 inch diameter ball consists of a High Strength Plastic Plate with a RAM Locking Suction Cup Base at each end. This base has a suction grip which allows you to mount this system to any non-porous surface, like a windshield, with confidence.
|
Features & Tips |
Here is a listing we have put together of some of the common Dual Locking Suction Camera Mount with Standard Arm features,
along with a few user tips that you may find of help for this particular item. | Material: Black Powder Coated Marine Grade Aluminum with High Strength Plastic and Rubber Suction Cups
Join Type: RAM Dual 1'' Rubber Ball and Socket System
Arm Type: RAM Arm with Dual 1'' Sockets
Arm Length: Standard length of 3'' between socket centers
Understanding the part number:
RAM = The main part of the mount is made out of a Black Powder Coated Marine Grade Aluminum
B = Dual 1'' Rubber Ball and Socket System
166-1 = The mount is made up of a Dual Locking Suction Cup Base joined with a plastic plate (RAP-333U).
202A = The end of the mount has a 2.5 inch diameter Round Plate End with Male Camera Thread. |
