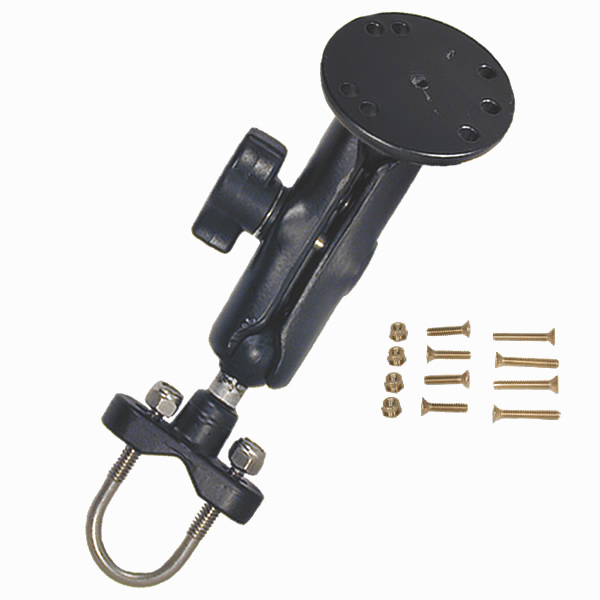

RAM Mount RAM-B-149Z-G1U Aluminum Four Hole AMPS Plate on Zinc Coated U-Bolt Mount


RAM Mount Four Hole AMPS Plate on Zinc U-Bolt Mount
Customer Images
Share your images and get a
free gpscity.com t-shirt!
Customer Rating: (based on 1 reviews).    Email:  Email the RAM Mount Four Hole AMPS Plate on Zinc U-Bolt Mount page     Print:  Print the RAM Mount Four Hole AMPS Plate on Zinc U-Bolt Mount page
100% of our reviewers recommend this item. See more RAM Mount items.

List Price: $34.41
Our Price: $28.95 (and this item ships for $3.49)
You Save: $5.46 (16%)

Availability:

In Stock.
Ships today, February 14.


Qty:

Model: RAM Mount Four Hole AMPS Plate on Zinc U-Bolt Mount
Part No: RAM-B-149Z-G1U (also RAM-B-149Z-G1)
Condition: Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses)
Price Match: Get an Instant Price Match in about 5 minutes (during business hours).

Learn More with our Instructional Videos   (More GPS City videos. Visit our Youtube channel.)
Universal Plate Connector: In the Box (RAM-B-202-G1) Video
Universal Plate Connector: In the Box (RAM-B-202-G1)
(332 views)
Universal Plate Connector: Garmin Cradle (RAM-B-202-G1) Video
Universal Plate Connector: Garmin Cradle (RAM-B-202-G1)
(571 views)
RAM Medium Arm: Overview (RAM-B-201U) Video
RAM Medium Arm: Overview (RAM-B-201U)
(20,627 views)
RAM Motorcycle U-Bolt Base: On Suzuki (RAM-B-231ZU) Video
RAM Motorcycle U-Bolt Base: On Suzuki (RAM-B-231ZU)
(22,649 views)
RAM Motorcycle U-Bolt Base: In the Box (RAM-B-231ZU) Video
RAM Motorcycle U-Bolt Base: In the Box (RAM-B-231ZU)
(1,949 views)

RAM Mount Sub-Component Breakdown
Here are the sub-component parts that make up this item:

Universal Hardware and Round Plate Cradle RAM-B-202-G1U
+
Medium Arm B-Socket RAM-B-201U
+
Zinc U-Bolt Motorcycle Mount Base RAM-B-231ZU


What's Included In The Box?

The RAM Mount Four Hole AMPS Plate on Zinc U-Bolt Mount ships with the following items included:


Product Information
Manufacturer: National Products, Inc Category: All Purpose Mounts Type: GPS Mounts
Model: RAM-B-149Z-G1U SKU: RAMB149ZG1 UPC: 793442149092
Announced: November 30, 1999 First Shipped: August 2, 2001 Weight: 0.713 lbs.

Alternative Models For This Item
RAM Mount Four Hole AMPS Plate on Zinc U-Bolt Mount
RAM Mount Four Hole AMPS Plate on Zinc U-Bolt Mount
RAM Mount Four Hole AMPS Plate Stainless Steel U-Bolt Mount
RAM Mount Four Hole AMPS Plate Stainless Steel U-Bolt Mount
RAM Mount RAP-B-149-G1
RAM Mount RAP-B-149-G1


RAM Mount Four Hole AMPS Plate on Zinc U-Bolt Mount Description
The RAM-B-149Z-G1 RAM Mount Marine Grade Aluminum Mount, with Zinc Coated U-Bolt Rail Base, consists of the 1 inch diameter ball and socket system with RAM Universal 2.5 inch diameter plate and connection hardware. This mount is designed to be a universal mounting solution for both RAM and non-RAM designed products. The hole pattern found on the connection 2.5 inch diameter plate will connect to a large variety of third party cradles and mounts.

Mount Cradle Design:


The RAM-B-202-G1 RAM Mount Aluminum 2.5 inch diameter round plate, with connection plate hardware, has an AMPS hole pattern which will connect to many different cradles. The plate ships with a set of short and long nuts and bolts to connect the plate to your required cradle, and many other devices. This RAM Mount plate will connect to many different cradles made by Garmin with an AMPS four hole pattern, including the following:
Note: The Garmin cradles listed are included with the purchase of each GPS unit, or can purchased separately.

* The Garmin cradle for the GPSMAP 176, GPSMAP 176C, GPSMAP 276C, GPSMAP 196 (only the cradle on the yoke mount) and GPSMAP 296 (only the cradle on the yoke mount) will connect to this RAM mount, by unscrewing the cradle from the mount. For an even stronger holding cradle, you can purchase the cradle manufactured by RAM (RAM-HOL-GA7).

Mount Arm Design:


The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).

Mount Base Design:


The RAM-B-231Z RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Zinc Coated metal U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.

To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.

Note: If you are looking to use this mount in the elements, we suggest the RAM-B-231 Stainless Steel U-Bolt Mount.
