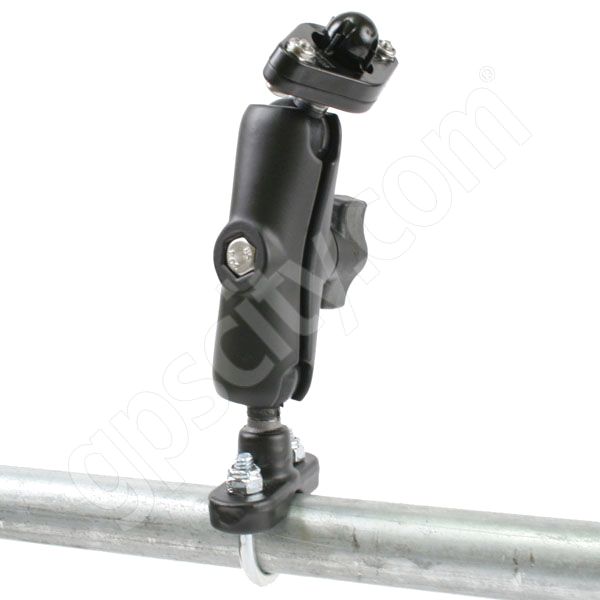

RAM Mount RAM-B-149Z-GA22U Aluminum Garmin Ball Series Zinc Coated U-Bolt Motorcycle Mount


RAM Mount Garmin Ball Zinc U-Bolt Rail Mount
Customer Images
Share your images and get a
free gpscity.com t-shirt!
Not yet rated.    Email:  Email the RAM Mount Garmin Ball Zinc U-Bolt Rail Mount page     Print:  Print the RAM Mount Garmin Ball Zinc U-Bolt Rail Mount page
See more RAM Mount items.


This item is not currently available. Please check back to see if it becomes available.

Accessories may still be available for this item. Click to view accessories.



Learn More with our Instructional Videos

 » See our list of GPS City videos. Visit our Youtube channel.
RAM Garmin G-Ball Plate: In Use (RAM-HOL-GA22U) Video
RAM Garmin G-Ball Plate: In Use (RAM-HOL-GA22U)
(2,168 views)
RAM Garmin G-Ball Plate: Overview (RAM-HOL-GA22U) Video
RAM Garmin G-Ball Plate: Overview (RAM-HOL-GA22U)
(825 views)
RAM Diamond Plate: Overview (RAM-B-238U) Video
RAM Diamond Plate: Overview (RAM-B-238U)
(21,627 views)
RAM AMPS Hole Pattern: Explained Video
RAM AMPS Hole Pattern: Explained
(8,035 views)
RAM Mount Plate: Overview (RAM-B-347) Video
RAM Mount Plate: Overview (RAM-B-347)
(4,910 views)

RAM Mount Sub-Component Breakdown

Here are the sub-component parts that make up this item:

Garmin G-Ball Cradle Connector RAM-HOL-GA22U
+
Diamond Plate with 1 inch Ball RAM-B-238U
+
Medium Arm B-Socket RAM-B-201U
+
Zinc U-Bolt Motorcycle Mount Base RAM-B-231ZU

What's Included In The Box?

The RAM Mount Garmin Ball Zinc U-Bolt Rail Mount ships with the following items included:


Product Information

Manufacturer: National Products, Inc Category: All Purpose Mounts Type: GPS Mounts
Model: RAM-B-149Z-GA22U SKU: RAMB149ZGA22 UPC: 793442912252
Announced: January 1, 2007 First Shipped: January 1, 2007 Weight: 0.681 lbs.

Manufacturer Description

The RAM-B-149Z-GA22 Garmin StreetPilot i-Series and Garmin Ball Motorcycle RAM Mount is a Marine Grade Aluminum Mount with a Zinc Coated U-Bolt Rail Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Garmin StreetPilot i2, i3 and i5 or Garmin Ball mount to your optimum viewing position.

Garmin GPS Mount Options:


To help ensure you have the Garmin StreetPilot i-Series, including the i2, i3 and i5, or Garmin Ball Mount you require, take a look at the list of available RAM Garmin GPS mounts on the RAM-HOL-GA22 Series of StreetPilot i-Series or Garmin Ball Holder and Mounts Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-GA22 StreetPilot i-Series or Garmin Ball Holder.

Garmin GPS Mount Cradle Design:


The RAM-HOL-GA22 RAM Mount high strength plastic cradle holder is designed to hold the Garmin StreetPilot i-series and Garmin Ball, including the following GPS units,
  • Garmin StreetPilot i-Series GPS, including the Garmin StreetPilot i2, Garmin StreetPilot i3 and Garmin StreetPilot i5
  • Garmin StreetPilot c5xx Series GPS, including the Garmin StreetPilot c530, Garmin StreetPilot c550, Garmin StreetPilot c580 and Garmin StreetPilot c510 (European Version)
  • Garmin units with the small round socket on the Garmin cradle
All cables and the Garmin cradle can stay connected to the unit while in the RAM cradle.

Garmin GPS Mount Cradle Plate:


The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).

Garmin GPS Mount Arm Design:


The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).

Garmin GPS Mount Base Design:


The RAM-B-231Z RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Zinc Coated metal U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.

To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.

Note: If you are looking to use this mount in the elements, we suggest the RAM-B-231 Stainless Steel U-Bolt Mount.


Features & Tips

Here is a listing we have put together of some of the common

Garmin Ball Zinc U-Bolt Rail Mount features

, along with a few user tips that you may find of help for this particular item.
  • Warranty: Manufacturer's Life Time Warranty.
  • Cradle Design: Connection Ball for Garmin StreetPilot i-Series and Garmin Ball.
  • Cradle Material: Black High Strength Composite Plastic.
  • Mount Material: Black Powder Coated Marine Grade Aluminum.
  • Mount Ball Size: RAM 1 inch Solid Rubber Ball.
  • Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
  • Arm Type: RAM Arm with Dual 1 inch Sockets.
  • Arm Length: Standard length of 3.0 inches between socket centers.
  • Base Type: Motorcycle Handlebar Base or Universal Round Pipe Base with Zinc Coated U-Bolt. (0.75 to 1 inch wide)
  • Common Applications:
    • Motorcycle and ATV Mounts: Attaching to handlebars.
    • Hiking Mounts: Attaching to hiking staffs.
    • General Mounts: Attaching to available pipes or poles.
