Sub-Component Breakdown |
| Here are the sub-component parts that make up the Garmin Ball Zinc U-Bolt Rail Short Mount: |
|
|
What's Included In The Box? |
| The RAM Mount Garmin Ball Zinc U-Bolt Rail Short Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-149Z-A-GA22U |
SKU: |
RAMB149ZAGA22 |
UPC: |
|
| Announced: |
March 1, 2008 |
First Shipped: |
March 1, 2008 |
Weight: |
0.630 lbs. |
Gallery of Customer Images |
| Customer submitted images of the RAM Mount Garmin Ball Zinc U-Bolt Rail Short Mount in action. You can also view our entire gallery or add your own gallery item. Special limited time offer - get a free t-shirt with every approved submission with pictures. |
There are currently no gallery items for the RAM Mount Garmin Ball Zinc U-Bolt Rail Short Mount. |
|
Customer Reviews |
| View all reviews. Or click here to Add Your Own Review. It's quick and easy. No login required. |
|
There are currently no reviews for the RAM Mount Garmin Ball Zinc U-Bolt Rail Short Mount.
|
Manufacturer Description |

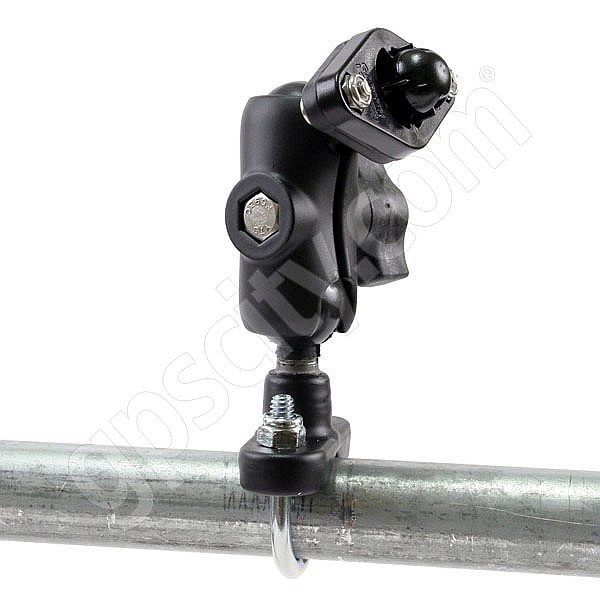

The RAM-B-149Z-GA22 Garmin StreetPilot i-Series and Garmin Ball Short Motorcycle RAM Mount is a Marine Grade Aluminum Mount with a Zinc Coated U-Bolt Rail Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Garmin StreetPilot i2, i3 and i5 and Garmin Ball mount to your optimum viewing position.
Garmin GPS Mount Options:
To help ensure you have the Garmin StreetPilot i-Series, including the i2, i3 and i5, or Garmin Ball Mount you require, take a look at the list of available RAM Garmin GPS mounts on the RAM-HOL-GA22 Series of StreetPilot i-Series or Garmin Ball Holder and Mounts Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-GA22 StreetPilot i-Series or Garmin Ball Holder.
Garmin GPS Mount Cradle Design:
The RAM-HOL-GA22 RAM Mount high strength plastic cradle holder is designed to hold the Garmin StreetPilot i-series and Garmin Ball, including the following GPS units,
- Garmin StreetPilot i-Series GPS, including the Garmin StreetPilot i2, Garmin StreetPilot i3 and Garmin StreetPilot i5
- Garmin StreetPilot c5xx Series GPS, including the Garmin StreetPilot c530, Garmin StreetPilot c550, Garmin StreetPilot c580 and Garmin StreetPilot c510 (European Version)
- Garmin units with the small round socket on the Garmin cradle
All cables and the Garmin cradle can stay connected to the unit while in the RAM cradle.
Garmin GPS Mount Cradle Plate:
 The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
Garmin GPS Mount Arm Design:
 The RAM-B-201-A RAM Mount Dual Socket Short Arm is a 1 inch B size Ball Dual Socket Arm made of Marine Grade Aluminum. The arm is 1.75 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201A arm, take a closer look with the RAM-B-201A Design Drawings (pdf file).
Garmin GPS Mount Base Design:
 The RAM-B-231Z RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Zinc Coated metal U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
Note: If you are looking to use this mount in the elements, we suggest the RAM-B-231 Stainless Steel U-Bolt Mount.
|
Features and Tips |
Here is a listing we have put together of some of the common Garmin Ball Zinc U-Bolt Rail Short Mount features,
along with a few user tips that you may find of help for this particular item. |
- Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Custom Cradle for Garmin StreetPilot i-Series and Garmin Ball.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Short length of 1.75 inches between socket centers.
- Base Type: Motorcycle Handlebar Base or Universal Round Pipe Base with Zinc Coated U-Bolt. (0.75 to 1 inch wide)
- Common Applications:
- Motorcycle and ATV Mounts: Attaching to handlebars.
- Hiking Mounts: Attaching to hiking staffs.
- General Mounts: Attaching to available pipes or poles.
|
Specifications |
There are no specifications currently available for this item. |
|
|
