| Model: |
RAM Mount Garmin eMap Series on Motorcycle Brake Mount |
| Part No: |
RAM-B-174-GA4U (also RAM-B-174-GA4) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
| Learn More with our Instructional Videos (More GPS City videos.
Visit our Youtube channel.) |
RAM Garmin eMap Cradle: In Use (RAM-HOL-GA4)
(602 views) |
RAM Diamond Plate: Overview (RAM-B-238U)
(20,286 views) |
RAM AMPS Hole Pattern: Explained
(6,610 views) |
RAM Mount Plate: Overview (RAM-B-347)
(3,929 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(20,635 views) |
|
| What's Included In The Box? |
The RAM Mount Garmin eMap Series on Motorcycle Brake Mount ships with the following items included: |
| Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-174-GA4U |
SKU: |
RAMB174GA4 |
UPC: |
|
| Announced: |
January 1, 2007 |
First Shipped: |
January 1, 2007 |
Weight: |
0.899 lbs. |
| RAM Mount Garmin eMap Series on Motorcycle Brake Mount Description |

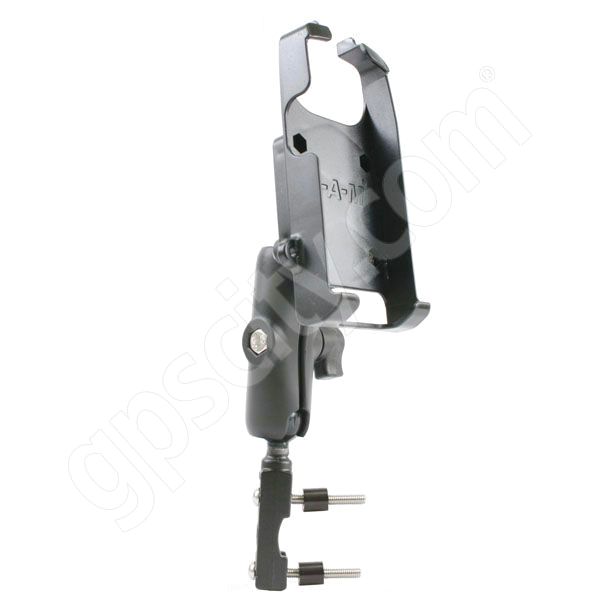

The RAM-B-174-GA4 Garmin eMap Motorcycle RAM Mount is a Marine Grade Aluminum Mount with a Motorcycle Brake/Clutch Reservoir Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Garmin eMap mount to your optimum viewing position.
Garmin GPS Mount Options:
 To help ensure you have the Garmin eMap Series Mount you require, take a look at the list of available RAM Garmin GPS mounts on the RAM-HOL-GA4 Series of Garmin eMap Cradles and Mounts Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-GA4 Garmin eMap Series Cradle.
Garmin GPS Mount Cradle Design:
The RAM-HOL-GA4 RAM Mount High Strength Plastic Cradle is designed to hold the Garmin eMap Series, including the following GPS units,
- Garmin eMap
- Garmin eMap Deluxe
All cables can stay connected to the unit while in the RAM cradle.
Garmin GPS Mount Cradle Plate:
 The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
Garmin GPS Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Garmin GPS Mount Base Design:
 The RAM-B-309-7 RAM Mount Motorcycle Kit Base can mount to either the clutch/ brake reservoir or directly to a round handle bar rail. The base is constructed of marine grade aluminum with an integrated 1 inch diameter rubber ball, hardware for rail mounting and both standard and metric mounting bolts for motorcycle reservoir mounting. The zinc coated metal u-bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 1/2 to 1.25 inches.
The base connects to the left or right side of your handlebar clutch/brake reservoir on the Honda Goldwing and other select motorcycles or you can connect directly to your handlebars with the u-bolt hardware. To see if this base will work with your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94 inches and a maximum of 1.58 inches.
|
