Customer Rating:  (based on 4 reviews). Email:
 Print:
100% of our reviewers recommend this item. See more RAM Mount items. |
| |
| List Price: |
$35.89 |
| Our Price: |
$30.95 (and this item ships for $3.49) |
| You Save: |
$4.94 (14%) |
Availability: |
In Stock.
Ships tomorrow, May 29. |
|
| |
| Model: |
RAM Mount Garmin GPSMAP 60 Series Zinc U-Bolt Rail Short Mount |
| Part No: |
RAM-B-149Z-A-GA12 |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Garmin GPSMAP 60C Cradle: In Use (RAM-HOL-GA12)
(15,964 views) |
RAM Garmin Astro 220 Cradle: In Use (RAM-HOL-GA12)
(16,535 views) |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,627 views) |
RAM AMPS Hole Pattern: Explained
(8,035 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,910 views) |
|
What's Included In The Box? |
The RAM Mount Garmin GPSMAP 60 Series Zinc U-Bolt Rail Short Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-149Z-A-GA12 |
SKU: |
RAMB149ZAGA12 |
UPC: |
793442905278 |
| Announced: |
March 1, 2008 |
First Shipped: |
March 1, 2008 |
Weight: |
0.620 lbs. |
Manufacturer Description |

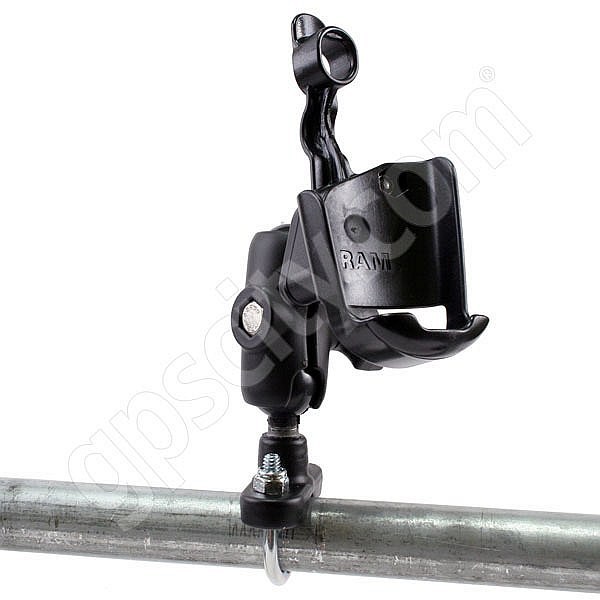

The RAM-B-149Z-GA12 Garmin GPSMAP 60 and 60C Color Series Short Motorcycle RAM Mount is a Marine Grade Aluminum Mount with a Zinc Coated U-Bolt Rail Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Garmin GPSMAP 60 and 60C Color Series mount to your optimum viewing position.
Garmin GPS Mount Options:
To help ensure you have the Garmin GPS 60, GPSMAP 60CS, GPSMAP 60CSx or Garmin Astro Series Mount you require, take a look at the list of available RAM Garmin GPS mounts on the Garmin GPSMAP 60CSx Mount Page or the Garmin Astro 220 Mount Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-GA12 Garmin GPS 60, GPSMAP 60CS, GPSMAP 60CSx or Garmin Astro Series Cradle.
Garmin GPS Mount Cradle Design:
The RAM-HOL-GA12 RAM Mount High Strength Plastic Cradle is designed to hold the Garmin GPS 60 and GPSMAP 60 Series, including the following GPS units,
- Garmin Astro 220 Series
- Garmin GPS 60
- Garmin GPSMAP 60
- Garmin GPSMAP 60C
- Garmin GPSMAP 60CS
- Garmin GPSMAP 60Cx
- Garmin GPSMAP 60CSx
All cables can stay connected to the unit while in the RAM cradle.
Garmin GPS Mount Cradle Plate:
 The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
Garmin GPS Mount Arm Design:
 The RAM-B-201-A RAM Mount Dual Socket Short Arm is a 1 inch B size Ball Dual Socket Arm made of Marine Grade Aluminum. The arm is 1.75 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201A arm, take a closer look with the RAM-B-201A Design Drawings (pdf file).
Garmin GPS Mount Base Design:
 The RAM-B-231Z RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Zinc Coated metal U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
Note: If you are looking to use this mount in the elements, we suggest the RAM-B-231 Stainless Steel U-Bolt Mount.
|
Features & Tips |
Here is a listing we have put together of some of the common Garmin GPSMAP 60 Series Zinc U-Bolt Rail Short Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Custom Cradle for Garmin GPSMAP 60 and 60C Color Series.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Short length of 1.75 inches between socket centers.
- Base Type: Motorcycle Handlebar Base or Universal Round Pipe Base with Zinc Coated U-Bolt. (0.75 to 1 inch wide)
- Common Applications:
- Motorcycle and ATV Mounts: Attaching to handlebars.
- Hiking Mounts: Attaching to hiking staffs.
- General Mounts: Attaching to available pipes or poles.
|
