Customer Images
Share your images and get a
free gpscity.com t-shirt!
|
Customer Rating:  (based on 2 reviews). Email:
 Print:
100% of our reviewers recommend this item. See more RAM Mount items. |
| |
| List Price: |
$44.03 |
| Our Price: |
$38.95 |
| You Save: |
$5.08 (12%) |
Availability: |
In Stock.
Ships tomorrow, May 29. |
|
| |
| Model: |
RAM Mount Garmin GPSMAP 62 62s 62st ATV UTV Strap Mount RAM-B-149Z-2-GA41U |
| Part No: |
RAM-B-149Z-2-GA41U (also RAM-B-149Z-2-GA41) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Garmin GPSMAP 62 Series Cradle Mount: Overview
(1,824 views) |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,627 views) |
RAM AMPS Hole Pattern: Explained
(8,035 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,910 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,942 views) |
|
What's Included In The Box? |
The RAM Mount Garmin GPSMAP 62 62s 62st ATV UTV Strap Mount RAM-B-149Z-2-GA41U ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-149Z-2-GA41U |
SKU: |
RAMB149Z-2GA41 |
UPC: |
793442930256 |
| Announced: |
September 9, 2010 |
First Shipped: |
November 22, 2010 |
Weight: |
1.010 lbs. |
Manufacturer Description |

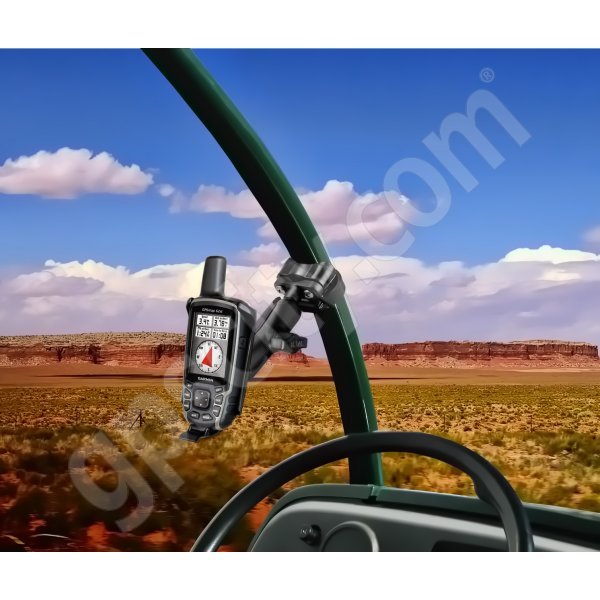

The RAM-B-149Z-2-GA41 Garmin GPSMAP 62 62s 62st ATV and UTV RAM Mount is a Marine Grade Aluminum Mount with a Steel Clamp Strap Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Garmin GPSMAP 62 62s 62st mount to your optimum viewing position.
Garmin GPS Mount Options:
Garmin GPS Mount Cradle Design:
Garmin GPS Mount Cradle Plate:
 The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
Garmin GPS Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Garmin GPS Mount Base Design:
 The RAM-B-231-2 Marine Grade Aluminum Utility Strap Clamp Base has a 1.0 inch diameter Rubber Ball connected at right angles. The Strap Base tightening screw is encased in a compact housing for a clean, safe finish. The strap is long enough to wrap around handle bar posts found on most ATV, UTV, Snowmobiles, Motorcycles and any other applications you can think of.
Strap Dimensions: 1.57'' (40mm) to a maximum of 3.15'' (80mm).
|
Features & Tips |
Here is a listing we have put together of some of the common Garmin GPSMAP 62 62s 62st ATV UTV Strap Mount RAM-B-149Z-2-GA41U features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Custom Cradle for Garmin GPSMAP 62 62s 62st.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: ATV/UTV base, Motorcycle Handlebar Base or Universal Round Pipe Base with Strap or Zinc Coated U-Bolt (0.75 to 1 inch wide)
- Common Applications:
- ATV/UTV Mounts: Attaching to handlebars.
- Motorcycle Mounts: Attaching to handlebars.
- Hiking Mounts: Attaching to hiking staffs.
- Marine Mounts: Attaching to available pipes or poles.
- General Mounts: Attaching to available pipes or poles.
|
