RAM Mount Garmin nuvi 2xx Stainless Steel U-Bolt Mount Product Detail
Call us at 1-866-GPS-CITY (1-866-477-2489) from 8AM - 5PM PST, Mon-Fri
What's Included With The RAM Mount Garmin nuvi 2xx Stainless Steel U-Bolt Mount? The RAM Mount Garmin nuvi 2xx Stainless Steel U-Bolt Mount ships with the following items included:

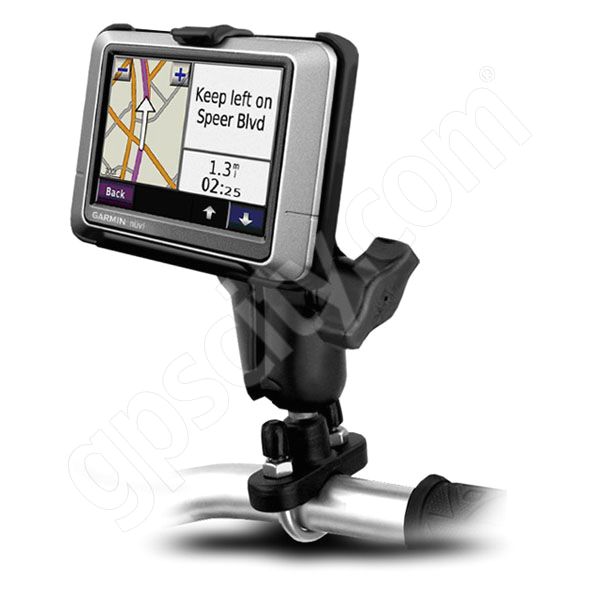

RAM Mount Garmin nuvi 2xx Stainless Steel U-Bolt Mount Description The RAM-B-149-GA24 RAM Mount Marine Grade Aluminum Stainless Steel U-Bolt Rail Base Mount consists of the 1 inch diameter ball and socket system with RAM Plastic Cradle for the Garmin nuvi 2xx Series.
Garmin GPS Mount Cradle Design:
The RAM-HOL-GA24 RAM Mount High Strength Plastic Cradle is designed to hold the Garmin nuvi 2xx Series, including the following GPS units,
Garmin nuvi 200
Garmin nuvi 205
Garmin nuvi 250
Garmin nuvi 255
Garmin nuvi 260
Garmin nuvi 265T
Garmin nuvi 270
Garmin nuvi 275
Garmin nuvi 275T
All cables can stay connected to the unit while in the RAM cradle.
The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
Garmin GPS Mount Arm Design:
The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Garmin GPS Mount Base Design:
The RAM-B-231 RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Stainless Steel U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
To help ensure you have the Garmin nuvi 200, nuvi 205 and nuvi 205T Series Mount you require, take a look at the list of available RAM Garmin GPS mounts on the RAM-HOL-GA24 Series of Garmin nuvi 2xx, nuvi 2x5 and nuvi 2x5T Cradles and Mounts Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-GA24 Garmin nuvi 2xx, nuvi 2x5 and nuvi 2x5T Series Cradle.
