Customer Images
Share your images and get a
free gpscity.com t-shirt!
|
Customer Rating:  (based on 1 reviews). Email:
 Print:
100% of our reviewers recommend this item. See more RAM Mount items. |
| |
| List Price: |
$61.25 |
| Our Price: |
$52.95 |
| You Save: |
$8.30 (14%) |
Availability: |
In Stock.
Ships tomorrow, May 29. |
|
| |
| Model: |
RAM Mount Garmin nuvi 2xx Vehicle Floor Mount |
| Part No: |
RAM-B-316-1-GA24U |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Garmin nuvi 200 Cradle: In Use (RAM-HOL-GA24)
(3,633 views) |
RAM Garmin nuvi 200 Cradle: USB Cable (RAM-HOL-GA24)
(1,981 views) |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,627 views) |
RAM AMPS Hole Pattern: Explained
(8,035 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,910 views) |
|
What's Included In The Box? |
The RAM Mount Garmin nuvi 2xx Vehicle Floor Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-316-1-GA24U |
SKU: |
RAMB316-1GA24 |
UPC: |
|
| Announced: |
January 17, 2008 |
First Shipped: |
January 17, 2008 |
Weight: |
1.200 lbs. |
Manufacturer Description |

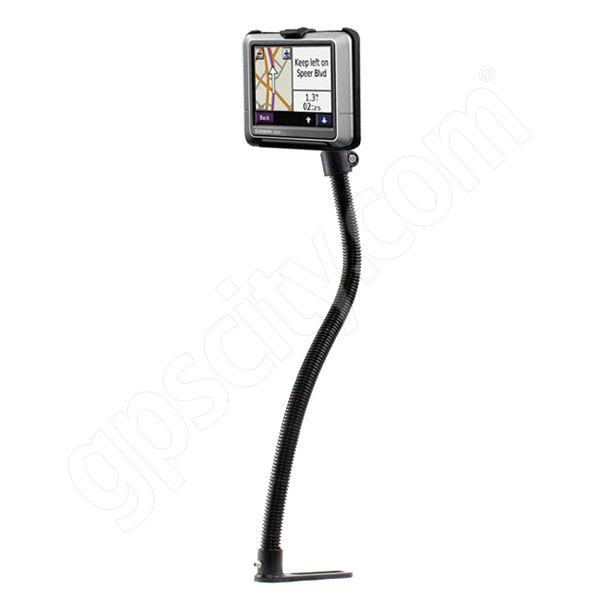

The RAM-B-316-1-GA24 RAM-POD-I Flex Rod Vehicle Floor Mount consists of a RAM 1 inch diameter RAM ball and socket system on a 18 inch long Aluminum Flexible Rod with a RAM Plastic Cradle for the Garmin nuvi 2xx Series.
Garmin GPS Mount Cradle Design:
The RAM-HOL-GA24 RAM Mount High Strength Plastic Cradle is designed to hold the Garmin nuvi 2xx Series, including the following GPS units,
- Garmin nuvi 200
- Garmin nuvi 205
- Garmin nuvi 250
- Garmin nuvi 255
- Garmin nuvi 260
- Garmin nuvi 265T
- Garmin nuvi 270
- Garmin nuvi 275
- Garmin nuvi 275T
All cables can stay connected to the unit while in the RAM cradle.
The Garmin nuvi 2xxW and nuvi 2x5W Series, including the nuvi 205W, nuvi 255W, 200W, nuvi 250W and nuvi 260W WILL NOT fit this cradle. These units require the RAM-HOL-GA25 RAM Mount Cradle for the Garmin nuvi 2xxW and nuvi 2x5W Series.
Garmin GPS Mount Cradle Plate:
 The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
Garmin GPS Mount Arm Design: The RAP-B-200-1 RAM Mount High Strength Plastic Single Socket Short Arm has a B Size 1 inch Ball Socket at one end, and a Female Octagon button connection at the other. The Octagon Button end will mount on the end of the Aluminum Flex Rod, allowing the 1 inch socket to hold your device cradle or plate. The side of the arm includes a tightening knob which allows you to open and close the socket end.
Garmin GPS Mount Base Design: The RAM-316-1A RAM Mount Rigid Arm Base consists of a RAM octagon at the end of a 18 inch rigid flex arm with seat rail base. The RAM-POD-I mounting foot plate base is designed to connect to a vehicle seat rail bolt in your Car, Truck, SUV, RV, Big Rig or bolted location. Connected at right angles to the mounting foot is an 18 inch long Aluminum Flexible Rod. This rod can hold light to medium weight items in your vehicle safely and securely. At the top of the rigid flex rod is a male RAM High Strength Plastic Octagon Button that will connect directly to a RAM Female Octagon Button Arm.
Movement of the Rigid 18 inch Flex Arm:It is important to note that the rigid 18 inch flex arm found on this mount is designed to hold an approximate weight of up to 4 lbs. With this in mind, the aluminum rod is more rigid than flexible. It is designed to be bent into position when being installed and then hold it's position. This means you cannot move the mount around once installed with just one hand.
Garmin GPS Mount Options:
To help ensure you have the Garmin nuvi 200, nuvi 205 and nuvi 205T Series Mount you require, take a look at the list of available RAM Garmin GPS mounts on the RAM-HOL-GA24 Series of Garmin nuvi 2xx, nuvi 2x5 and nuvi 2x5T Cradles and Mounts Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-GA24 Garmin nuvi 2xx, nuvi 2x5 and nuvi 2x5T Series Cradle.
|
Features & Tips |
Here is a listing we have put together of some of the common Garmin nuvi 2xx Vehicle Floor Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty
- Cradle Design: Custom Cradle for Garmin nuvi 2xx Series listed
- Cradle Material: High Strength Plastic
- Mount Material: Black Powder Coated Marine Grade Aluminum / Aluminum Rod / High Strength Plastic
- Mount Ball Size: RAM 1 inch Solid Rubber Ball
- Pivot Point Design: RAM Patented RAM 1 inch Rubber Ball and Socket Joint
- Arm Type: RAM Arm with Dual 1 inch Sockets
- Base Type: Vehicle Floor Mount
|
