| List Price: |
$36.25 |
| Our Price: |
$30.95 (and this item ships for $4.99) |
| You Save: |
$5.30 (15%) |
Availability: |
In Stock.
Ships tomorrow, May 29. |
|
| |
|
|
| Model: |
RAM Mount Garmin nuvi 2xxW and nuvi 465T Zinc Coated U-Bolt Mount |
| Part No: |
RAM-B-149Z-GA25U (also RAM-B-149Z-GA25) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Garmin nuvi 200W Cradle: In Use (RAM-HOL-GA25)
(9,801 views) |
RAM Garmin nuvi 465T Cradle: In Use (RAM-HOL-GA25)
(6,033 views) |
RAM Garmin nuvi Cradle: with USB Cable(RAM-HOL-GA25)
(2,371 views) |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,627 views) |
RAM AMPS Hole Pattern: Explained
(8,035 views) |
|
What's Included In The Box? |
The RAM Mount Garmin nuvi 2xxW and nuvi 465T Zinc Coated U-Bolt Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-149Z-GA25U |
SKU: |
RAMB149ZGA25 |
UPC: |
793442912290 |
| Announced: |
January 17, 2008 |
First Shipped: |
January 17, 2008 |
Weight: |
0.750 lbs. |
Manufacturer Description |

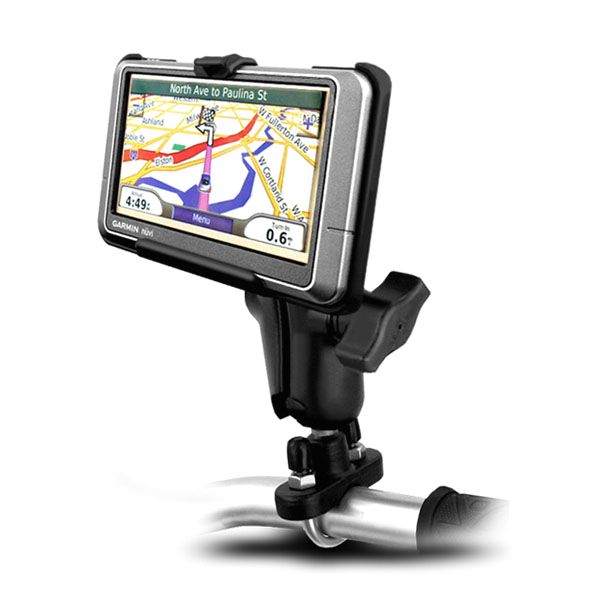

The RAM-B-149Z-GA25 RAM Mount Marine Grade Aluminum Stainless Steel U-Bolt Rail Base Mount consists of the 1 inch diameter ball and socket system with RAM Aluminum Cradle Holder for the Garmin nuvi 200W, nuvi 205W and nuvi 465TSeries.
Garmin GPS Mount Cradle Design:
The RAM-HOL-GA25 RAM Mount High Strength Plastic Cradle is designed to hold the Garmin nuvi 2xxW (wide), nuvi 2x5W (wide) and nuvi 2x5WT (wide) Series, including the following GPS units,
- Garmin nuvi 200W
- Garmin nuvi 205W
- Garmin nuvi 250W
- Garmin nuvi 255W
- Garmin nuvi 260W
- Garmin nuvi 265WT
- Garmin nuvi 465T
The cradle will fit around the Garmin cradle that is included with the purchase of the Garmin nuvi 2xxW and nuvi 465T series unit. All cables can stay connected to the unit while in the RAM cradle.
The Garmin nuvi 2xx and nuvi 2x5 Series, including the nuvi 205, nuvi 255, nuvi 200, nuvi 250, nuvi 260 and nuvi 270 WILL NOT fit this cradle. These units require the RAM-HOL-GA24 RAM Mount Cradle for the Garmin nuvi 2xx and nuvi 2x5 Series.
Garmin GPS Mount Cradle Plate:
 The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
Garmin GPS Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Garmin GPS Mount Base Design:
 The RAM-B-231Z RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Zinc Coated metal U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
Note: If you are looking to use this mount in the elements, we suggest the RAM-B-231 Stainless Steel U-Bolt Mount.
Garmin GPS Mount Options:
To help ensure you have the Garmin nuvi 205W, nuvi 255W, nuvi 200W, nuvi 250W, nuvi 260W and nuvi 465T Mount you require, take a look at the list of available RAM Garmin GPS mounts on the RAM-HOL-GA25 Series of Garmin nuvi 2xxW, nuvi 2x5W and nuvi 465T Cradles and Mounts Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-GA25 Garmin nuvi 2xxW, nuvi 2x5W and nuvi 465T Series Cradle.
|
Features & Tips |
Here is a listing we have put together of some of the common Garmin nuvi 2xxW and nuvi 465T Zinc Coated U-Bolt Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty
- Cradle Design: Custom Cradle for Garmin nuvi 200W, nuvi 205W and nuvi 465T Series listed
- Cradle Material: High Strength Plastic
- Mount Material: Black Powder Coated Marine Grade Aluminum
- Mount Ball Size: RAM 1 inch Solid Rubber Ball
- Pivot Point Design: RAM Patented RAM 1 inch Rubber Ball and Socket Joint
- Arm Type: RAM Arm with Dual 1 inch Sockets
- Arm Length: Standard length of 3 inches between socket centers
- Base Type: Motorcycle Handlebar Base or Universal Round Pipe Base with Zinc Coated U-Bolt
|
