What's Included In The Box? |
The RAM Mount Garmin nuvi 500 Series Cone Suction Cup Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-166-2-GA32 |
SKU: |
RAMB166-2GA32 |
UPC: |
|
| Announced: |
September 16, 2008 |
First Shipped: |
October 9, 2008 |
Weight: |
0.732 lbs. |
Manufacturer Description |

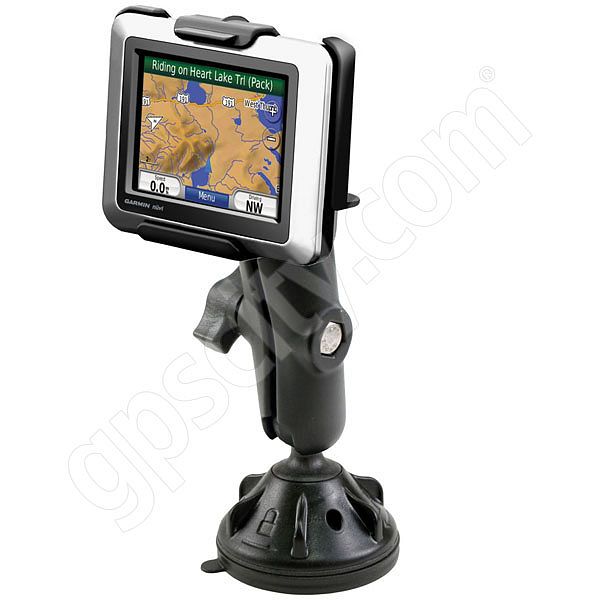

The RAM-B-166-2-GA32 Garmin nuvi 500 and 550 Series Windshield Suction RAM Mount is a Marine Grade Aluminum Mount with a Cone Locking Suction Cup Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Garmin nuvi 500 and 550 Series mount to your optimum viewing position.
Note: This mount does not require any drilling for installation.
Garmin GPS Mount Options:
To help ensure you have the Garmin nuvi 500 and nuvi 550 Mount you require, take a look at the list of available RAM Garmin GPS mounts on the RAM-HOL-GA32 Series of Garmin nuvi 500 and nuvi 550 Cradles and Mounts Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-GA32 Garmin nuvi 500 and nuvi 550 Series Cradle.
Garmin GPS Mount Cradle Design:
 The RAM-HOL-GA32 RAM Mount High Strength Plastic Cradle is designed to hold the Garmin nuvi 500 Series, including the following GPS units,
- Garmin nuvi 500
- Garmin nuvi 550
All cables can stay connected to the unit while in the RAM cradle.
Garmin GPS Mount Cradle Plate:
 The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
Garmin GPS Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Garmin GPS Mount Base Design: The RAP-B-224-2 RAM Mount High Strength Plastic Twist Lock Suction Cup Base is designed to have an extra strong hold on any smooth non-porous surface. With a twist of the outside cone edge, the suction cup base adheres to any glass¹ or non-porous plastic surface, as found on our Plastic Non Skid Base, Cup Holder Plate and Plastic Adhesive Disk. Built into the top of the suction cup is a 1 inch diameter rubber ball. This ball allows the suction cup to join to an open socket found on any of the RAM 1 inch diameter socket arms.
¹ Important legal note to California and Minnesota Drivers
Suction Cup Vehicle Mounting Alternatives:We currently offer three alternative solutions for mounting your suction cup mount in a location other than a windshield:
- The Super Grip Non Skid Base with round plastic plate, is a weighted base that can be placed on your dash without an adhesive or drilling. Simply place the base on your dash, or any flat surface and then attach the suction cup to the round plastic plate. This is perfect when you want a temporary mounting solution but the windshield mount just isn't the answer.
- The Suction Cup Adhesive Disk with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply stick the the plate to any flat surface and then attach the suction cup to the plate. This is perfect when you need to attach your suction cup mount to your car dash vertically or horizontally, rather than to your windshield.
- The Suction Cup Drink Cup Holder with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply place the base into any cup holder in your vehicle and then attach the suction cup to the plate found on top. This is perfect when you need to attach your suction cup mount away from the windshield or when you just want the mount off the dash.
|
Features & Tips |
Here is a listing we have put together of some of the common Garmin nuvi 500 Series Cone Suction Cup Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Custom Cradle for Garmin nuvi 500 and 550 Series.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum and Plastic and Rubber Locking Suction Cup.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: Round 2.7 inch diameter Locking Suction Cup for non-porous surfaces.
- Common Applications:
|
