 Customer Images
 Share your images and get a free gpscity.com t-shirt!
|
Customer Rating:     (based on 20 reviews). Email:
Print:
95% of our reviewers recommend this item. See more RAM Mount items. |
| |
| List Price: |
$36.86 |
| Our Price: |
$30.95 (and this item ships for $4.99) |
| You Save: |
$5.91 (16%) |
Availability: |
In Stock. Ships today, February 14. |
|
| |
|
|
| Model: |
RAM Mount Garmin nuvi 7xx Zinc Coated U-Bolt Mount |
| Part No: |
RAM-B-149Z-GA26U (also RAM-B-149Z-GA26) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
| Learn More with our Instructional Videos (More GPS City videos.
Visit our Youtube channel.) |
 RAM Garmin nuvi 700 Cradle: In Use (RAM-HOL-GA26) (12,229 views) |  RAM Diamond Plate: Overview (RAM-B-238U) (20,286 views) |  RAM AMPS Hole Pattern: Explained (6,610 views) |  RAM Mount Plate: Overview (RAM-B-347) (3,929 views) |  RAM Medium Arm: Overview (RAM-B-201U) (20,635 views) |
|
| What's Included In The Box? |
The RAM Mount Garmin nuvi 7xx Zinc Coated U-Bolt Mount ships with the following items included: |
| Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-149Z-GA26U |
SKU: |
RAMB149ZGA26 |
UPC: |
793442912313 |
| Announced: |
January 17, 2008 |
First Shipped: |
January 17, 2008 |
Weight: |
0.762 lbs. |

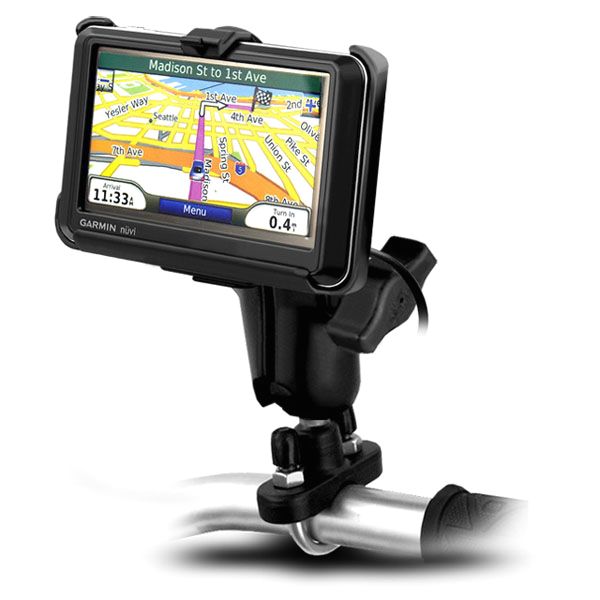

| RAM Mount Garmin nuvi 7xx Zinc Coated U-Bolt Mount Description |
The RAM-B-149Z-GA26 RAM Mount Marine Grade Aluminum Stainless Steel U-Bolt Rail Base Mount consists of the 1 inch diameter ball and socket system with RAM Aluminum Cradle Holder for the Garmin nuvi 7xx Series.
Garmin GPS Mount Cradle Design: The RAM-HOL-GA26 RAM Mount High Strength Plastic Cradle is designed to hold the Garmin nuvi 7xx Series, including the following GPS units,
- Garmin nuvi 700
- Garmin nuvi 750
- Garmin nuvi 755T
- Garmin nuvi 760
- Garmin nuvi 765T
- Garmin nuvi 770
- Garmin nuvi 775T
- Garmin nuvi 780
- Garmin nuvi 785T
The cradle will fit around the Garmin cradle that is included with the purchase of the Garmin nuvi 7xx series unit. All cables can stay connected to the unit while in the RAM cradle.
Garmin GPS Mount Cradle Plate:
The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
Garmin GPS Mount Arm Design:
The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Garmin GPS Mount Base Design:
The RAM-B-231Z RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Zinc Coated metal U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
Note: If you are looking to use this mount in the elements, we suggest the RAM-B-231 Stainless Steel U-Bolt Mount.
Garmin GPS Mount Options: To help ensure you have the Garmin nuvi 7xx or nuvi 7xxT Series Mount you require, take a look at the list of available RAM Garmin GPS mounts on the RAM-HOL-GA26 Series of Garmin nuvi 7xx Cradles and Mounts Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-GA26 Garmin nuvi 7xx and 7xxT Series Cradle.
|
| RAM Mount Garmin nuvi 7xx Zinc Coated U-Bolt Mount Features & Tips |
Here is a listing we have put together of some of the common Garmin nuvi 7xx Zinc Coated U-Bolt Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty
- Cradle Design: Custom Cradle for Garmin nuvi 7xx Series listed
- Cradle Material: High Strength Plastic
- Mount Material: Black Powder Coated Marine Grade Aluminum
- Mount Ball Size: RAM 1 inch Solid Rubber Ball
- Pivot Point Design: RAM Patented RAM 1 inch Rubber Ball and Socket Joint
- Arm Type: RAM Arm with Dual 1 inch Sockets
- Arm Length: Standard length of 3 inches between socket centers
- Base Type: Motorcycle Handlebar Base or Universal Round Pipe Base with Zinc Coated U-Bolt
|
