Customer Rating:  (based on 1 reviews). Email:
 Print:
100% of our reviewers recommend this item. See more RAM Mount items. |
| |
| List Price: |
$47.97 |
| Our Price: |
$40.95 |
| You Save: |
$7.02 (15%) |
Availability: |
In Stock.
Ships tomorrow, May 29. |
|
| |
| Model: |
RAM Mount Garmin nuvi 8xx Series Motorcycle Brake Mount |
| Part No: |
RAM-B-174-GA30U (also RAM-B-174-GA30) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Garmin nuvi 800 Cradle: In Use (RAM-HOL-GA30)
(1,805 views) |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,627 views) |
RAM AMPS Hole Pattern: Explained
(8,035 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,910 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,942 views) |
|
Most Popular Garmin nuvi 8xx Series Motorcycle Brake Mount Accessories
» View the complete accessory list for the RAM Mount Garmin nuvi 8xx Series Motorcycle Brake Mount. |
Gilsson Bare Wire Power Cable
$21.95
|
|
|
|
|
|
What's Included In The Box? |
The RAM Mount Garmin nuvi 8xx Series Motorcycle Brake Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-174-GA30U |
SKU: |
RAMB174GA30 |
UPC: |
|
| Announced: |
March 1, 2008 |
First Shipped: |
April 1, 2008 |
Weight: |
0.908 lbs. |
Manufacturer Description |

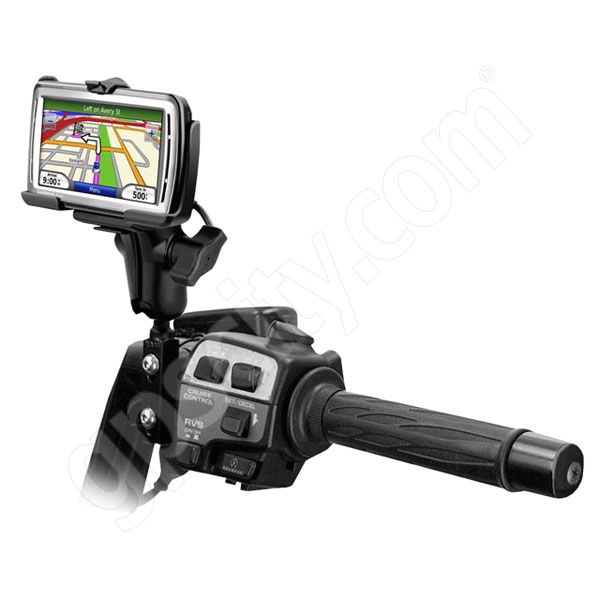

The RAM-B-174-GA30 Garmin nuvi 8xx Series Motorcycle RAM Mount is a Marine Grade Aluminum Mount with a Motorcycle Brake/Clutch Reservoir Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Garmin nuvi 850 and 880 Series mount to your optimum viewing position.
Garmin GPS Mount Options:
 To help ensure you have the Garmin nuvi 8xx or 8xxT Mount you require, take a look at the list of available RAM Garmin GPS mounts on the RAM-HOL-GA30 Series of Garmin nuvi 850 and 880 Cradles and Mounts Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-GA30 Garmin nuvi 800 and 800T Series Cradle.
Garmin GPS Mount Cradle Design:
The RAM-HOL-GA30 Garmin nuvi 8xx Series RAM Mount Cradle is a High Strength Plastic Composite Cradle designed specifically to hold the Garmin nuvi Series, including the following GPS units,
- Garmin nuvi 850
- Garmin nuvi 855
- Garmin nuvi 860
- Garmin nuvi 880
- Garmin nuvi 885T
All cables can stay connected to the unit while in the RAM cradle.
Garmin GPS Mount Cradle Plate:
 The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
Garmin GPS Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Garmin GPS Mount Base Design:
 The RAM-B-309-7 RAM Mount Motorcycle Kit Base can mount to either the clutch/ brake reservoir or directly to a round handle bar rail. The base is constructed of marine grade aluminum with an integrated 1 inch diameter rubber ball, hardware for rail mounting and both standard and metric mounting bolts for motorcycle reservoir mounting. The zinc coated metal u-bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 1/2 to 1.25 inches.
The base connects to the left or right side of your handlebar clutch/brake reservoir on the Honda Goldwing and other select motorcycles or you can connect directly to your handlebars with the u-bolt hardware. To see if this base will work with your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94 inches and a maximum of 1.58 inches.
|
Features & Tips |
Here is a listing we have put together of some of the common Garmin nuvi 8xx Series Motorcycle Brake Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Custom Cradle for Garmin nuvi 850 and 880 Series.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: Motorcycle Motorcycle Brake/Clutch Reservoir Base
- Common Applications:
- Motorcycle Mounts: Used mostly with Goldwing and Harley Davidson Motorcycles.
|
