| Model: |
RAM Mount Garmin nuvi 8xx Series Pivot Suction Cup Mount |
| Part No: |
RAP-B-104-224-GA30 |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Garmin nuvi 800 Cradle: In Use (RAM-HOL-GA30)
(1,805 views) |
RAM Suction Mount: Overview (RAP-B-104-224)
(1,818 views) |
Check out our
channel. | | |
|
Most Popular Garmin nuvi 8xx Series Pivot Suction Cup Mount Accessories
» View the complete accessory list for the RAM Mount Garmin nuvi 8xx Series Pivot Suction Cup Mount. |
GPS City Super Grip Dashboard Friction Mount Base
$14.95
|
RAM Mount Black Rose Adhesive Plate for Suction Cups
$6.95
|
RAM Mount Black Large Adhesive Plate for Suction Cups
$6.95
|
RAM Mount Clear Large Adhesive Plate for Suction Cups
$5.95
|
RAM Mount RAM-A-CAN II Vehicle Cup Flat Surface Base
$27.95
|
|
What's Included In The Box? |
The RAM Mount Garmin nuvi 8xx Series Pivot Suction Cup Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAP-B-104-224-GA30 |
SKU: |
RAPB104-224GA30 |
UPC: |
|
| Announced: |
March 1, 2008 |
First Shipped: |
April 1, 2008 |
Weight: |
0.638 lbs. |
Manufacturer Description |

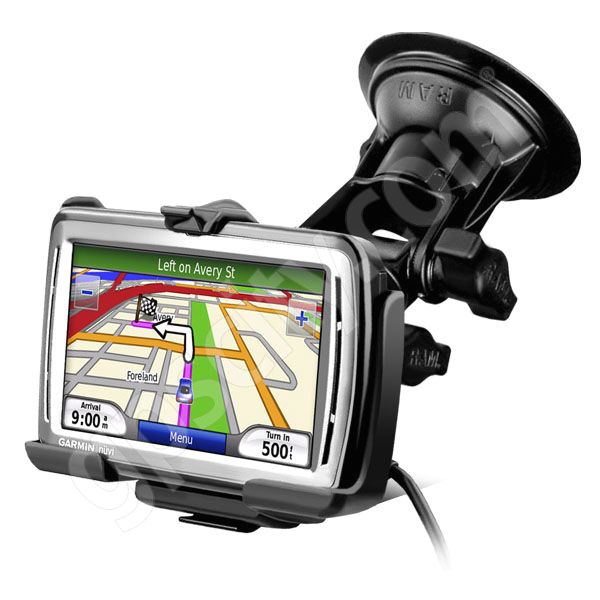

The RAP-B-104-224-GA30 Garmin nuvi 8xx Series Windshield Suction RAM Mount is a High Strength Plastic Composite Mount with a Locking Suction Cup Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system and a rotating pivot joint. With a twist of a knob, you can move the Garmin nuvi 850 and 880 Series mount to your optimum viewing position.
Note: This mount does not require any drilling for installation.
Garmin GPS Mount Options:
 To help ensure you have the Garmin nuvi 8xx or 8xxT Mount you require, take a look at the list of available RAM Garmin GPS mounts on the RAM-HOL-GA30 Series of Garmin nuvi 850 and 880 Cradles and Mounts Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-GA30 Garmin nuvi 800 and 800T Series Cradle.
Garmin GPS Mount Cradle Design:
The RAM-HOL-GA30 Garmin nuvi 8xx Series RAM Mount Cradle is a High Strength Plastic Composite Cradle designed specifically to hold the Garmin nuvi Series, including the following GPS units,
- Garmin nuvi 850
- Garmin nuvi 855
- Garmin nuvi 860
- Garmin nuvi 880
- Garmin nuvi 885T
All cables can stay connected to the unit while in the RAM cradle.
Garmin GPS Mount Cradle Plate:The RAP-B-238 RAM Mount High Strength Plastic Composite Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file) (Note: the Plastic RAP-B-238 Plate is thicker than the RAM-B-238 Design Drawings shown).
Garmin GPS Mount Arm Design:
 The RAP-B-200-1 RAM Mount Socket and Octagon Button Arm includes a 1 inch B size Ball Socket and is made of High Strength Plastic. The arm is 1.75 inches long when measured from socket center to button socket end. The side of the arm includes a tightening knob which allows you to open and close the socket ends.
Garmin GPS Mount Base Design: The RAP-224-2 RAM Mount High Strength Plastic Locking 3.25 inch diameter Rubber Suction Cup Base is designed to have an extra strong hold on any smooth non-porous surface. With a twist on the locking knob, the suction cup base adheres to any glass¹ or non-porous plastic surface, as found on our Super Grip Plastic Non Skid Base and Plastic Adhesive Disk.
Connected to the top of the RAM suction cup is a male RAM plastic octagon button with pivot connection. The pivot design allows the mount to tip from 0 to 90 degrees to the suction cup, while the octagon button connections allows the arm to rotate 360 degrees. The button end connects directly to a RAP-B-200-1 Plastic Arm with Socket and Female Button ends.
¹ Important legal note to California and Minnesota Drivers
Suction Cup Base Mounting Options:We currently offer three alternative solutions for mounting your suction cup mount in a location other than a windshield:
- The Super Grip Non Skid Base with round plastic plate, is a weighted base that can be placed on your dash without an adhesive or drilling. Simply place the base on your dash, or any flat surface and then attach the suction cup to the round plastic plate. This is perfect when you want a temporary mounting solution but the windshield mount just isn't the answer.
- The Suction Cup Adhesive Disk with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply stick the the plate to any flat surface and then attach the suction cup to the plate. This is perfect when you need to attach your suction cup mount to your car dash vertically or horizontally, rather than to your windshield.
- The Suction Cup Drink Cup Holder with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply place the base into any cup holder in your vehicle and then attach the suction cup to the plate found on top. This is perfect when you need to attach your suction cup mount away from the windshield or when you just want the mount off the dash.
|
Features & Tips |
Here is a listing we have put together of some of the common Garmin nuvi 8xx Series Pivot Suction Cup Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Custom Cradle for Garmin nuvi 850 and 880 Series.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black High Strength Plastic Composite and Rubber Suction Cup.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint and Rotating Pivot Octagon Button.
- Arm Type: RAM Arm with 1 inch diameter Ball Socket and Octagon Button Socket.
- Arm Length: Standard length of 1.75 inches between 1 inch socket center and button socket edge.
- Base Type: Round 3.25 inch diameter Locking Suction Cup for non-porous surfaces.
- Common Applications:
|
