Not yet rated. Email:
 Print:
See more RAM Mount items. |
| |
| List Price: |
$39.42 |
| Our Price: |
$32.95 (and this item ships for $4.99) |
| You Save: |
$6.47 (16%) |
Availability: |
In Stock.
Ships tomorrow, May 29. |
|
| |
| Model: |
RAM Mount Garmin Quest Series Locking Suction Cup Mount |
| Part No: |
RAM-B-166-GA15U (also RAM-B-166-GA15) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Garmin Quest 2 Cradle: In Use (RAM-HOL-GA15)
(1,983 views) |
RAM Diamond Plate: Overview (RAM-B-238U)
(21,627 views) |
RAM AMPS Hole Pattern: Explained
(8,035 views) |
RAM Mount Plate: Overview (RAM-B-347)
(4,910 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(21,942 views) |
|
Most Popular Garmin Quest Series Locking Suction Cup Mount Accessories
» View the complete accessory list for the RAM Mount Garmin Quest Series Locking Suction Cup Mount. |
GPS City Super Grip Dashboard Friction Mount Base
$14.95
|
RAM Mount Black Rose Adhesive Plate for Suction Cups
$6.95
|
RAM Mount Black Large Adhesive Plate for Suction Cups
$6.95
|
RAM Mount Clear Large Adhesive Plate for Suction Cups
$5.95
|
RAM Mount RAM-A-CAN II Vehicle Cup Flat Surface Base
$27.95
|
|
What's Included In The Box? |
The RAM Mount Garmin Quest Series Locking Suction Cup Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-166-GA15U |
SKU: |
RAMB166GA15 |
UPC: |
793442908149 |
| Announced: |
November 25, 2004 |
First Shipped: |
November 13, 2003 |
Weight: |
0.757 lbs. |
Manufacturer Description |

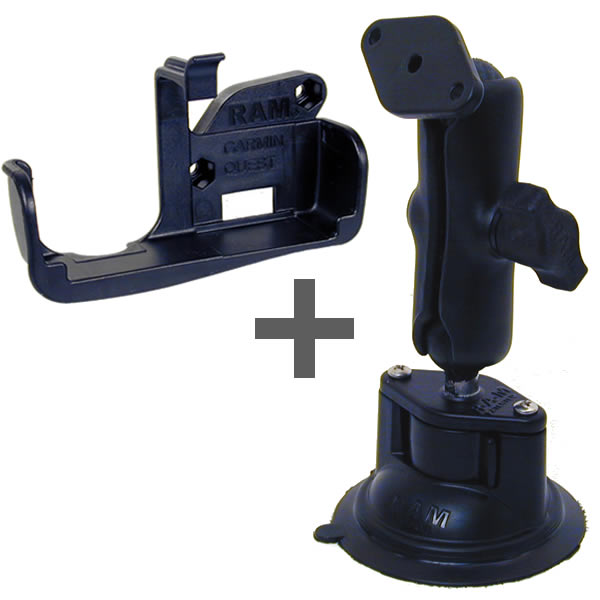

The RAM-B-166-GA15 Garmin Quest Series Windshield Suction RAM Mount is a Marine Grade Aluminum Mount with a Locking Suction Cup Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Garmin Quest Series mount to your optimum viewing position.
Note: This mount does not require any drilling for installation.
Garmin GPS Mount Options:
To help ensure you have the Garmin Quest Series Mount you require, take a look at the list of available RAM Garmin GPS mounts on the RAM-HOL-GA15 Series of Garmin Quest series Cradles and Mounts Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-GA15 Garmin Quest Series Cradle.
Garmin GPS Mount Cradle Design:
The RAM-HOL-GA15 RAM Mount High Strength Plastic Cradle is designed to hold the Garmin Quest Series, including the following GPS units,
- Garmin Quest
- Garmin Quest 2
- Harley Davidson Road Tech Conquest
- Harley Davidson Road Tech Quest
- Garmin Jeep Trail Guide
All cables can stay connected to the unit while in the RAM cradle.
Connecting the Garmin Power/Speaker Cable to the RAM Cradle:The RAM-HOL-GA15 Quest RAM Cradle Cradle will allow you to connect the Garmin Cigarette Lighter/Power Cable in a similar fashion to the Garmin Quest Cradle. The RAM Cradle DOES NOT include the TORX-T5 key for removing the cable from the Garmin cradle. (You can remove the screw from the Garmin cable with a small flat head screw driver) Once removed, you can connect the cable to the RAM Cradle and be able to charge the Quest with you cigarette lighter power and hear the autorouting voice prompting commands.
Garmin GPS Mount Cradle Plate:
 The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
Garmin GPS Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Garmin GPS Mount Base Design:
 The RAM-B-224-1 RAM Mount Plastic Locking 3.25 inch diameter Rubber Suction Cup Base, with Marine Grade Aluminum Diamond Plate, is designed to have an extra strong hold on any smooth non-porous surface. With a twist on the locking knob, the suction cup base adheres to any glass¹ or non-porous plastic surface, as found on our Non Skid Base with Plastic Disk and Plastic Adhesive Disk.
Connected to the top of the Suction Cup is a RAM-B-238 RAM Mount Marine Grade Aluminum Diamond Plate with 1 inch diameter Rubber Ball. This plate allows the suction cup to join to an open socket found on the RAM 1 inch diameter socket arms.
¹ Important legal note to California and Minnesota Drivers
Suction Cup Base Mounting Options:We currently offer three alternative solutions for mounting your suction cup mount in a location other than a windshield:
- The Super Grip Non Skid Base with round plastic plate, is a weighted base that can be placed on your dash without an adhesive or drilling. Simply place the base on your dash, or any flat surface and then attach the suction cup to the round plastic plate. This is perfect when you want a temporary mounting solution but the windshield mount just isn't the answer.
- The Suction Cup Adhesive Disk with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply stick the the plate to any flat surface and then attach the suction cup to the plate. This is perfect when you need to attach your suction cup mount to your car dash vertically or horizontally, rather than to your windshield.
- The Suction Cup Drink Cup Holder with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply place the base into any cup holder in your vehicle and then attach the suction cup to the plate found on top. This is perfect when you need to attach your suction cup mount away from the windshield or when you just want the mount off the dash.
|
Features & Tips |
Here is a listing we have put together of some of the common Garmin Quest Series Locking Suction Cup Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Custom Cradle for Garmin Quest Series.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum and Plastic and Rubber Locking Suction Cup.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: Round 3.25 inch diameter Locking Suction Cup for non-porous surfaces
- Common Applications:
|
