Customer Rating:  (based on 3 reviews). Email:
 Print:
100% of our reviewers recommend this item. See more RAM Mount items. |
| |
| List Price: |
$26.42 |
| Our Price: |
$22.95 (and this item ships for $2.99) |
| You Save: |
$3.47 (13%) |
Availability: |
In Stock.
Ships tomorrow, May 29. |
|
| |
| Model: |

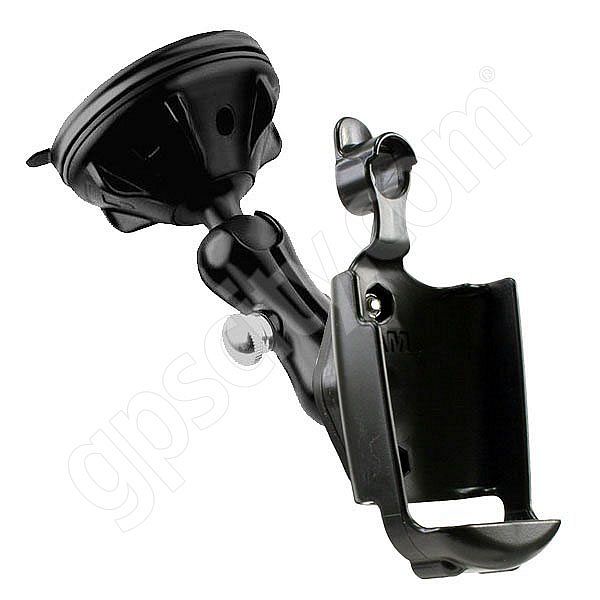

RAM Mount Garmin Rino 500 Series Grip-Lock Suction Cup Mount |
| Part No: |
RAP-B-166-2-GA20 |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
Learn More with our Instructional Videos |
| » See our list of GPS City videos. Visit our Youtube channel. |
RAM Garmin Rino 500 Cradle: In Use (RAM-HOL-GA20)
(1,747 views) |
Check out our
channel. | | | |
|
What's Included In The Box? |
The RAM Mount Garmin Rino 500 Series Grip-Lock Suction Cup Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAP-B-166-2-GA20 |
SKU: |
RAPB166-2GA20 |
UPC: |
|
| Announced: |
March 1, 2008 |
First Shipped: |
March 1, 2008 |
Weight: |
0.444 lbs. |
Manufacturer Description |
The RAP-B-166-2-GA20 Garmin Rino 500 Series Windshield Suction RAM Mount is a High Strength Plastic Composite Mount with a Locking Suction Cup Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system, with Grip-Lock knob, that has adjustment point at the cradle and base. With a twist of the Grip-Lock arm knob, you can move the Garmin Rino 500 Series mount to your optimum viewing position.
Note: This mount does not require any drilling for installation.
Garmin GPS Mount Options:
To help ensure you have the Garmin Rino 500 Series Mount you require, take a look at the list of available RAM Garmin GPS mounts on the RAM-HOL-GA20 Series of Garmin Rino 500 series Cradles and Mounts Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-GA20 Garmin Rino 500 Series Cradle.
Garmin GPS Mount Cradle Design:
The RAM-HOL-GA20 RAM Mount High Strength Plastic Cradle is designed to hold the Garmin Rino 5xx Series, including the following units,
- Garmin Rino 520 Series
- Garmin Rino 530 Series
- Garmin Rino 520 HCx Series
- Garmin Rino 530 HCx Series
The Garmin Rino 1xx Series, including the Rino 110, Rino 120 and Rino 130, WILL NOT fit this cradle. These units require the RAM-HOL-GA8 RAM Mount Cradle for the Garmin Rino 1xx Series.
NOTE: You cannot connect any power cables to the Garmin Rino 5xx series while the unit is in the RAM Mount cradle. The Rino 5xx external power connector plug, required to connect a power plug, will not attach to the back of the Rino unit when in the RAM Mount cradle.
Garmin GPS Mount Cradle Plate:The RAP-B-238 RAM Mount High Strength Plastic Composite Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file) (Note: the Plastic RAP-B-238 Plate is thicker than the RAM-B-238 Design Drawings shown).
Garmin GPS Mount Arm Design: The RAP-B-201-1 Twist Grip RAM Mount Dual Socket Arm is a 1 inch B size Ball Socket Arm made of High Strength Plastic. The arm is 2.0 inches long between socket centers. The side of the arm includes a round grooved tightening nut which allows you to open and close the socket ends.
Garmin GPS Mount Base Design: The RAP-B-224-2 RAM Mount High Strength Plastic Twist Lock Suction Cup Base is designed to have an extra strong hold on any smooth non-porous surface. With a twist of the outside cone edge, the suction cup base adheres to any glass¹ or non-porous plastic surface, as found on our Plastic Non Skid Base, Cup Holder Plate and Plastic Adhesive Disk. Built into the top of the suction cup is a 1 inch diameter rubber ball. This ball allows the suction cup to join to an open socket found on any of the RAM 1 inch diameter socket arms.
¹ Important legal note to California and Minnesota Drivers
Suction Cup Vehicle Mounting Alternatives:We currently offer three alternative solutions for mounting your suction cup mount in a location other than a windshield:
 The Super Grip Non Skid Base with round plastic plate, is a weighted base that can be placed on your dash without an adhesive or drilling. Simply place the base on your dash, or any flat surface and then attach the suction cup to the round plastic plate. This is perfect when you want a temporary mounting solution but the windshield mount just isn't the answer.
 The Suction Cup Adhesive Disk with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply stick the the plate to any flat surface and then attach the suction cup to the plate. This is perfect when you need to attach your suction cup mount to your car dash vertically or horizontally, rather than to your windshield.
 The Suction Cup Drink Cup Holder with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply place the base into any cup holder in your vehicle and then attach the suction cup to the plate found on top. This is perfect when you need to attach your suction cup mount away from the windshield or when you just want the mount off the dash.
|
Features & Tips |
Here is a listing we have put together of some of the common Garmin Rino 500 Series Grip-Lock Suction Cup Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Custom Cradle for Garmin Rino 500 Series.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black High Strength Plastic Composite and Rubber Locking Suction Cup.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets and Grip-Lock Knob.
- Arm Length: Short length of 2 inches between socket centers
- Base Type: Round 2.7 inch diameter Locking Suction Cup for non-porous surfaces
- Common Applications:
|
