Customer Images
Share your images and get a
free gpscity.com t-shirt!
|
 (5 customer reviews). Email:
 Print:
100% of our reviewers recommend this item. See more RAM Mount items. |
| |
| List Price: |
$37.53 |
| Our Price: |
$33.72 (and this item ships for $4.99) |
| You Save: |
$3.81 (10%) |
Availability: |
In Stock.
Ships on Monday, May 20. |
| | |
| Model: |
RAM Mount Garmin Rino 5xx Zinc U-Bolt Rail Mount |
| Part No: |
RAM-B-149Z-GA20U (also RAM-B-149Z-GA20) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get a Quick Price Match for this item (during business hours). |
|
Tutorial Videos |
| We have 9 videos for this item. We handcraft videos daily to help you learn more about the functionality of the items we sell. View a list of the GPS City videos. Visit our Youtube channel. Suggest a video via our feedback form. |
|
Questions and Answers (Q&As) |
Got a question about the RAM Mount Garmin Rino 5xx Zinc U-Bolt Rail Mount? Click this link to enter your question. No login required. Our tech staff moderates this Q&A and will typically respond within 24 hours (72 hours if a weekend). Visitors are also welcome to chime in at your convenience.
|
There are currently no Q&A's posted for this item. Feel free to post a question you have about this item. |
|
Sub-Component Breakdown |
| Here are the sub-component parts that make up the Garmin Rino 5xx Zinc U-Bolt Rail Mount: |
|
|
What's Included In The Box? |
| The RAM Mount Garmin Rino 5xx Zinc U-Bolt Rail Mount ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-149Z-GA20U |
SKU: |
RAMB149ZGA20 |
UPC: |
793442904530 |
| Announced: |
August 10, 2006 |
First Shipped: |
July 27, 2006 |
Weight: |
0.750 lbs. |
Gallery of Customer Images |
| Customer submitted images of the RAM Mount Garmin Rino 5xx Zinc U-Bolt Rail Mount in action. You can also view our entire gallery or add your own gallery item. Special limited time offer - get a free t-shirt with every approved submission with pictures. |
There are currently no gallery items for the RAM Mount Garmin Rino 5xx Zinc U-Bolt Rail Mount. |
|
Customer Reviews |
| View all reviews. Or click here to Add Your Own Review. It's quick and easy. No login required. |
100% of our reviewers recommend this item.
|
| |
| | Most recent customer reviews. (View all 5 reviews for this item.) |
|
Written by Snowdog Alaska March 15, 2013
|
GREAT GPS MOUNT FOR SNOWMACHINES Awesome, as advertised. Holds up nicely to serious trail and mountain snowmachining. … More
•Cons: none •Recommend? YES 9 viewers found this helpful. |
|
Written by Gampy Corvallis OR October 12, 2012
|
ROCK SOLID! I mounted this on my quad and drove in the roughest terrain that the Northwest can offer and it held ROCK SOLID … More
•Pros: stays put once in •Cons: little hard to get out •Recommend? YES 12 viewers found this helpful. |
|
Written by Eric BC. November 23, 2010
|
GREAT BUT. Great Mount, but to bad the charging bracket will not work with it. … More
•Recommend? YES 41 viewers found this helpful. |
|
Written by rob ohio April 30, 2009
|
GREAT MOUNT works great and holds the rino very secure … More
•Pros: great hold easy to adjust •Cons: can not use carger while in mount •Recommend? YES 93 viewers found this helpful. |
|
Written by Dave Kamas, UT March 10, 2009
|
GREAT MOUNT I used this mount on my snowmobile I was concerned at first due to the naturaly rough ride ,but it exceeded my expect … More
•Pros: swings out of the way when not in use •Recommend? YES 97 viewers found this helpful. |
Manufacturer Description |

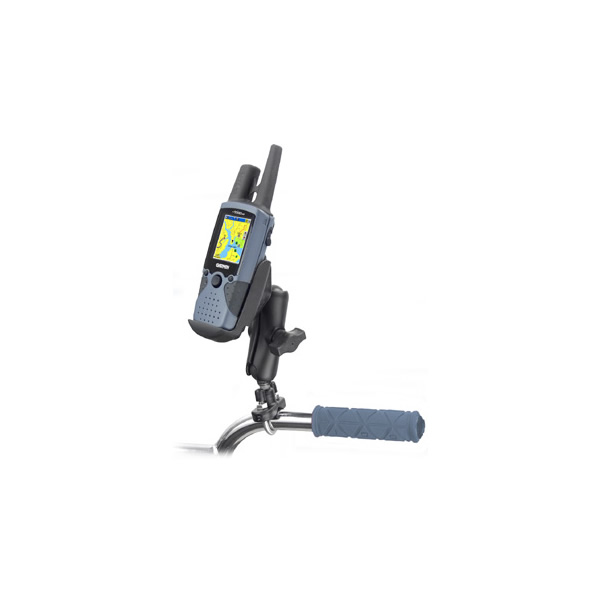

The RAM-B-149Z-GA20 Garmin Rino 500 Series Motorcycle RAM Mount is a Marine Grade Aluminum Mount with a Zinc Coated U-Bolt Rail Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Garmin Rino 500 Series mount to your optimum viewing position.
Garmin GPS Mount Options:
To help ensure you have the Garmin Rino 500 Series Mount you require, take a look at the list of available RAM Garmin GPS mounts on the RAM-HOL-GA20 Series of Garmin Rino 500 series Cradles and Mounts Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-GA20 Garmin Rino 500 Series Cradle.
Garmin GPS Mount Cradle Design:
The RAM-HOL-GA20 RAM Mount High Strength Plastic Cradle is designed to hold the Garmin Rino 5xx Series, including the following units,
- Garmin Rino 520 Series
- Garmin Rino 530 Series
- Garmin Rino 520 HCx Series
- Garmin Rino 530 HCx Series
The Garmin Rino 1xx Series, including the Rino 110, Rino 120 and Rino 130, WILL NOT fit this cradle. These units require the RAM-HOL-GA8 RAM Mount Cradle for the Garmin Rino 1xx Series.
NOTE: You cannot connect any power cables to the Garmin Rino 5xx series while the unit is in the RAM Mount cradle. The Rino 5xx external power connector plug, required to connect a power plug, will not attach to the back of the Rino unit when in the RAM Mount cradle.
Garmin GPS Mount Cradle Plate:
 The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
Garmin GPS Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Garmin GPS Mount Base Design:
 The RAM-B-231Z RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Zinc Coated metal U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
Note: If you are looking to use this mount in the elements, we suggest the RAM-B-231 Stainless Steel U-Bolt Mount.
|
Features and Tips |
Here is a listing we have put together of some of the common Garmin Rino 5xx Zinc U-Bolt Rail Mount features,
along with a few user tips that you may find of help for this particular item. |
- Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Custom Cradle for Garmin Rino 500 Series.
- Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3.0 inches between socket centers.
- Base Type: Motorcycle Handlebar Base or Universal Round Pipe Base with Zinc Coated U-Bolt. (0.75 to 1 inch wide)
- Common Applications:
- Motorcycle and ATV Mounts: Attaching to handlebars.
- Hiking Mounts: Attaching to hiking staffs.
- General Mounts: Attaching to available pipes or poles.
|
Specifications |
There are no specifications currently available for this item. |
|
|
