Customer Images
Share your images and get a
free gpscity.com t-shirt!
|
Not yet rated. Email:
 Print:
See more RAM Mount items. |
| |
| List Price: |
$56.78 |
| Our Price: |
$46.95 |
| You Save: |
$9.83 (17%) |
Availability: |
Ships by Thursday, June 20, 2013. |
| | |
| Model: |
RAM Mount Garmin Swivel Flip Yoke Mount RAM-B-125-G2U |
| Part No: |
RAM-B-125-G2U |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get a Quick Price Match for this item (during business hours). |
|
Tutorial Videos |
| We have 4 videos for this item. We handcraft videos daily to help you learn more about the functionality of the items we sell. View a list of the GPS City videos. Visit our Youtube channel. Suggest a video via our feedback form. |
|
Questions and Answers (Q&As) |
Got a question about the RAM Mount Garmin Swivel Flip Yoke Mount RAM-B-125-G2U? Click this link to enter your question. No login required. Our tech staff moderates this Q&A and will typically respond within 24 hours (72 hours if a weekend). Visitors are also welcome to chime in at your convenience.
|
There are currently no Q&A's posted for this item. Feel free to post a question you have about this item. |
|
Sub-Component Breakdown |
| Here are the sub-component parts that make up the Garmin Swivel Flip Yoke Mount RAM-B-125-G2U: |
|
|
What's Included In The Box? |
| The RAM Mount Garmin Swivel Flip Yoke Mount RAM-B-125-G2U ships with the following items included: |
Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-125-G2U |
SKU: |
RAMB125G2 |
UPC: |
|
| Announced: |
November 25, 2004 |
First Shipped: |
April 29, 2005 |
Weight: |
0.900 lbs. |
Gallery of Customer Images |
| Customer submitted images of the RAM Mount Garmin Swivel Flip Yoke Mount RAM-B-125-G2U in action. You can also view our entire gallery or add your own gallery item. Special limited time offer - get a free t-shirt with every approved submission with pictures. |
There are currently no gallery items for the RAM Mount Garmin Swivel Flip Yoke Mount RAM-B-125-G2U. |
|
Customer Reviews |
| View all reviews. Or click here to Add Your Own Review. It's quick and easy. No login required. |
|
There are currently no reviews for the RAM Mount Garmin Swivel Flip Yoke Mount RAM-B-125-G2U.
|
Manufacturer Description |

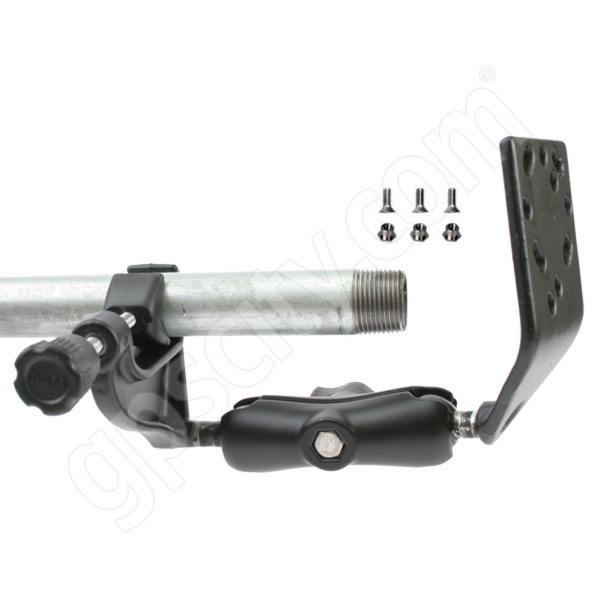

The RAM Marine Grade Aluminum Yoke Mount, with Extension Plate, consists of the 1" dia. ball and socket system with RAM Universal 2.5" diameter Plate and connection hardware. This mount is designed to be a universal mounting solution for Garmin Marine Units.
BASE DESIGN:
The Powder Coated Marine Grade Aluminum Yoke Clamp Mount Base fits a rail diameter from 5/8 inches to a maximum of 1 1/4 inches. The 1 inches rubber ball is at a right angle to the plane of the mount so when connected to a rail, the ball sits parallel to the rail.
To mount the base, simply place the yoke clamps around the rail and then screw the large knob at the end of the threaded rod. The hand tightened clamp makes this the perfect mounting system for rental planes and unusual shaped motorbike rails.
Note: The rail does not need to be perfectly round to mount this base.
Extension plate DesignThe RAM Powder Coated Marine Grade Aluminum Extension Plate with 1 inch Rubber Ball allows you to maneuver your GPS unit, or any connected device, in more positions than the standard mounting plate. Originally designed to position your GPS in front of the yoke on your plane, the extension plate can also be used in many other applications.
The connection section of the plate is 2.5 inch square with predrilled holes for many different screw hole patterns, including the universal AMPS hole pattern and all RAM made cradles. The connection section extends approximately 2.25 inches forward, at a 45 degree angle, from the center of the 1" ball and approximately 1.5 inch above the 1 inch ball (to the bottom of the connection section of the plate).
ARM DESIGN:
The Powder Coated Marine Grade Aluminum Standard Length Double Socket Arm is 3.0" long when measured between socket centers.
CRADLE DESIGN:
The RAM Aluminum 2.5 inch diameter Round Plate has an three hole pattern which will connect to the base of the Garmin Marine GPS unit swivel mounts. In most cases the Garmin Marine Swivel Mount is included with the purhcase of the GPS unit. Some of the Garmin Marine GPS that will connect to this mounting plate include:
Marine Season 2007
- Garmin GPSMAP 420 Marine GPS
- Garmin GPSMAP 430 Marine GPS
- Garmin GPSMAP 440 Marine GPS
- Garmin GPSMAP 450 Marine GPS
- Garmin GPSMAP 520 Marine GPS
- Garmin GPSMAP 525 Marine GPS
- Garmin GPSMAP 530 Marine GPS
- Garmin GPSMAP 535 Marine GPS
- Garmin GPSMAP 540 Marine GPS
- Garmin GPSMAP 545 Marine GPS
- Garmin GPSMAP 550 Marine GPS
- Garmin GPSMAP 555 Marine GPS
Marine Season 2006
- Garmin GPSMAP 292 Marine GPS
- Garmin GPSMAP 298 Marine GPS
- Garmin GPSMAP 392 Marine GPS
- Garmin GPSMAP 398 Marine GPS
- Garmin GPSMAP 492 Marine GPS
- Garmin GPSMAP 498 Marine GPS
- Garmin Fishfinder 340C
- Garmin Fishfinder 160C
- Garmin Fishfinder 140
- Garmin Fishfinder 90
NOTE: The Garmin cradles listed are included with the purchase of each GPS unit, or can purchased separately.
Connection Hardware Included: The plate includes a set of three sets of nuts and bolts (RAM-S-G1) to connect the plate to your required cradle.
|
Specifications |
There are no specifications currently available for this item. |
|
|
