RAM Mount Garmin Swivel Motorcycle Mount Kit RAM-B-174-G2U
Available Videos
Watch the Round Plate: Overview (RAM-B-202U) Video Watch the Medium Arm: Overview (RAM-B-201U) Video Watch the Motorcycle Kit Reservoir: On Suzuki (RAM-B-309-7) Video
Watch the Motorcycle Kit U-Bolt: On Suzuki (RAM-B-309-7) Video Watch the Motorcycle Base Kit: Overview (RAM-B-309-7) Video Watch the Motorcycle Kit Mount: Overview (RAM-B-174U) Video


Not yet rated. Be the first to review this item.
See more RAM Mount products.

List Price: $39.81 USD
Our Price: $30.95 USD
You Save:  $8.86 USD (22%)

In Stock! Ships by 3PM PST on Monday, 2009-11-23.

This item is Brand New with a Lifetime Warranty (excluding electronic or lense components).

Found a lower price? Please let us know!

 Canadian Customers! Save on shipping fees, customs, duty, and PST! Buy this item from Canada's original on-line GPS store, gpscity.ca, located in Calgary, Alberta.

RAM Mount Garmin Swivel Motorcycle Mount Kit RAM-B-174-G2U Product Detail
  • Category: RAM Mount RAM Mounts
  • Manufacturer: RAM Mount
  • Model No: RAM-B-174-G2U
  • SKU: RAMB174G2
  • Weight: 0.813 lbs
Share and Save
  Email   Print    Twitter  Digg  Facebook  MySpace  Google Bookmarks  del.icio.us  Fark  Technorati  reddit  StumbleUpon  Mixx  Furl  Yahoo! Bookmarks  Windows Live Favorites  Ask MyStuff  Slashdot  Propeller  Newsvine  myAOL Favorites


Need Assistance? Contact us on

from 8AM - 5PM PST, Mon-Fri
or Call us at 1-866-GPS-CITY
(1-866-477-2489)
from 8AM - 5PM PST, Mon-Fri


What's Included With The RAM Mount Garmin Swivel Motorcycle Mount Kit RAM-B-174-G2U?
The RAM Mount Garmin Swivel Motorcycle Mount Kit RAM-B-174-G2U ships with the following items included:


RAM Mount Garmin Swivel Motorcycle Mount Kit RAM-B-174-G2U Description

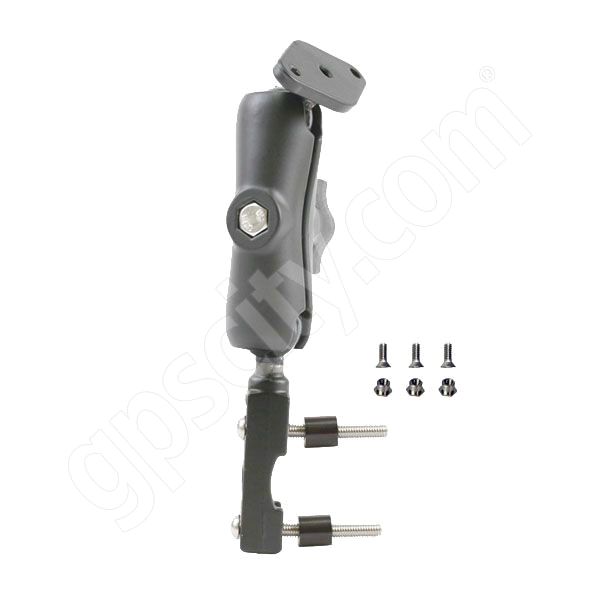

The RAM-B-174-G2 RAM Mount Marine Grade Aluminum Motorcycle Brake/Clutch Base Mount consists of the 1 inch diameter ball and socket system with a RAM Round 2.5 inch diameter Plate End and Garmin Marine Cradle Three Hole hardware.

This mount is designed to be connected to the three hole pattern on the bottom of the cradles included with the purchase of the Garmin Marine GPS units with a swivel mount.

Mount Cradle Design:

The RAM Aluminum 2.5 inch diameter Round Plate has an three hole pattern which will connect to the base of the Garmin Marine GPS unit swivel mounts. In most cases the Garmin Marine Swivel Mount is included with the purhcase of the GPS unit. Some of the Garmin Marine GPS that will connect to this mounting plate include:
Marine Season 2007
  • Garmin GPSMAP 420 Marine GPS
  • Garmin GPSMAP 430 Marine GPS
  • Garmin GPSMAP 440 Marine GPS
  • Garmin GPSMAP 450 Marine GPS
  • Garmin GPSMAP 520 Marine GPS
  • Garmin GPSMAP 525 Marine GPS
  • Garmin GPSMAP 530 Marine GPS
  • Garmin GPSMAP 535 Marine GPS
  • Garmin GPSMAP 540 Marine GPS
  • Garmin GPSMAP 545 Marine GPS
  • Garmin GPSMAP 550 Marine GPS
  • Garmin GPSMAP 555 Marine GPS

Marine Season 2006
  • Garmin GPSMAP 292 Marine GPS
  • Garmin GPSMAP 298 Marine GPS
  • Garmin GPSMAP 392 Marine GPS
  • Garmin GPSMAP 398 Marine GPS
  • Garmin GPSMAP 492 Marine GPS
  • Garmin GPSMAP 498 Marine GPS
  • Garmin Fishfinder 340C
  • Garmin Fishfinder 160C
  • Garmin Fishfinder 140
  • Garmin Fishfinder 90
NOTE: The Garmin cradles listed are included with the purchase of each GPS unit, or can purchased separately.

Connection Hardware Included: The plate includes a set of three sets of nuts and bolts (RAM-S-G1) to connect the plate to your required cradle.

Mount Arm Design:
The RAM Mount Dual Socket Arm (RAM-B-201) is a B Size 1 inch Ball Dual Socket Arm, made of Marine Grade Aluminum. The arm is 3 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends.

Mount Base Design:

The RAM-B-309-1 RAM Mount Powder Coated Marine Grade Aluminum Clutch/Brake Motorcycle Mount Base includes a 1 inch diameter Rubber Ball and a hexagonal opening for the connection of an optional secondary RAM-B-309-3 Rubber 1 inch diameter ball. Included with this base is both standard and metric mounting bolts.

The base connects to the left or right side of your handlebar clutch/brake reservoir on the Honda Goldwing and other select Motorcycles. To see if this base will work with your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94 inches and a maximum of 1.58 inches and can be viewed in the design drawing below.

RAM E-Drawings and In Use Pictures:

To understand more about the RAM-B-309-1 Motorcycle Mount Base hole spacing and ball layout and location, check out the design drawing below. The second image shows the RAM-B-309-1 in use and how the base mounts to the clutch/brake reservoir.
RAM-B-309-1 e-drawing
RAM-B-309 Base e-drawing
RAM-B-309-1 in use connection
RAM-B-309 Base In Use
