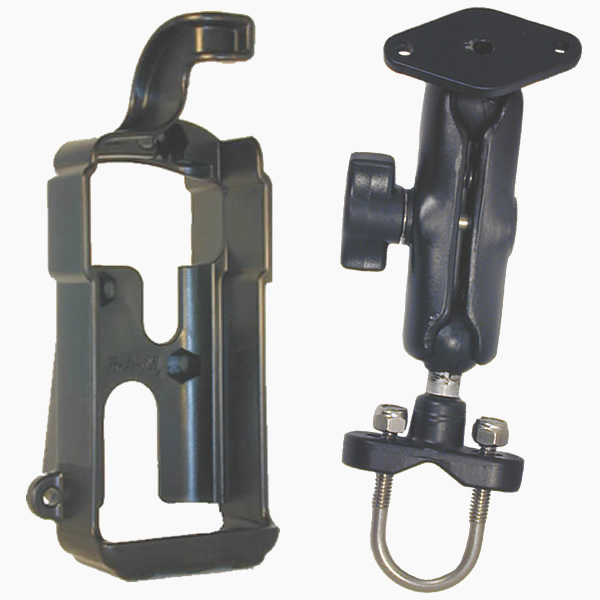

The RAM-B-149Z-MA1 RAM Mount Marine Grade Aluminum Motorcycle Handlebar Mount with Zinc Coated U-Bolt Base consists of the 1 inch diameter RAM ball and socket system with RAM Plastic Cradle for the Magellan Blazer 12, GPS 310, 315, 320, GPSMAP 330 and 330M.
Mount Base Design:
 The RAM-B-231Z RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Zinc Coated metal U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
Note: If you are looking to use this mount in the elements, we suggest the RAM-B-231 Stainless Steel U-Bolt Mount.
Mount Arm Design:
 The RAM Mount Dual Socket Arm (RAM-B-201) is a B Size 1 inch Ball Dual Socket Arm, made of Marine Grade Aluminum. The arm is 3 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends.
Mount Cradle Design:
 The RAM-HOL-MA1 RAM Mount High Strength Plastic Cradle is designed to hold the Magellan GPS 300 Series, including the following GPS units,
- Magellan GPS 12 Blazer
- Magellan GPS 310
- Magellan GPS 315
- Magellan GPS 320
- Magellan GPSMAP 330
- Magellan GPSMAP 330M
All cables can stay connected to the unit while in the RAM cradle.
|
