RAM Mount GPS V Series Stainless Steel U-Bolt Mount Product Detail
Call us at 1-866-GPS-CITY (1-866-477-2489) from 8AM - 5PM PST, Mon-Fri
What's Included With The RAM Mount GPS V Series Stainless Steel U-Bolt Mount? The RAM Mount GPS V Series Stainless Steel U-Bolt Mount ships with the following items included:
RAM Mount GPS V Series Stainless Steel U-Bolt Mount Description The RAM Marine Grade Aluminum Mount with Stainless Steel U-Bolt Rail Base consists of the 1'' dia. ball and socket system with RAM Plastic Cradle for the Garmin GPS II, II Plus, III, III Plus, III Pilot and V.
BASE DESIGN:

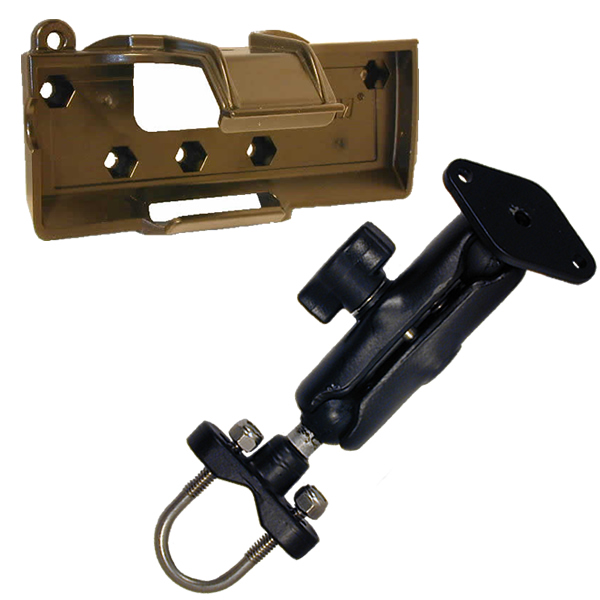

The RAM-B-231 RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Stainless Steel U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
ARM DESIGN: The Powder Coated Marine Grade Aluminum Standard Length Double Socket Arm is 3.0'' long when measured between socket centers.
CRADLE DESIGN:
The RAM-HOL-GA2 RAM Mount High Strength Plastic Cradle is designed to hold the Garmin GPS II, III and V Series, including the following GPS units,
Garmin GPS II
Garmin GPS II+
Garmin GPS III
Garmin GPS III+
Garmin GPS V
Garmin GPS V Deluxe
The RAM-HOL-GA2 cradle can rotate to allow viewing the GPS unit with the vertical or horizontal screen and all cables can stay connected to the unit while in the RAM cradle.
