| Model: |
RAM Mount GPSMAP 96 96C Series Glare Shield Mount |
| Part No: |
RAM-B-177-GA14U (also RAM-B-177-GA14) |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
| Learn More with our Instructional Videos (More GPS City videos.
Visit our Youtube channel.) |
RAM Garmin GPSMAP 76C Cradle: In Use (RAM-HOL-GA14)
(3,137 views) |
RAM Diamond Plate: Overview (RAM-B-238U)
(20,301 views) |
RAM AMPS Hole Pattern: Explained
(6,618 views) |
RAM Mount Plate: Overview (RAM-B-347)
(3,933 views) |
RAM Short Arm: Overview (RAM-B-201U-A)
(3,448 views) |
|
| What's Included In The Box? |
The RAM Mount GPSMAP 96 96C Series Glare Shield Mount ships with the following items included: |
| Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-177-GA14U |
SKU: |
RAMB177GA14 |
UPC: |
793442907043 |
| Announced: |
May 25, 2004 |
First Shipped: |
September 17, 2004 |
Weight: |
0.840 lbs. |
| RAM Mount GPSMAP 96 96C Series Glare Shield Mount Description |

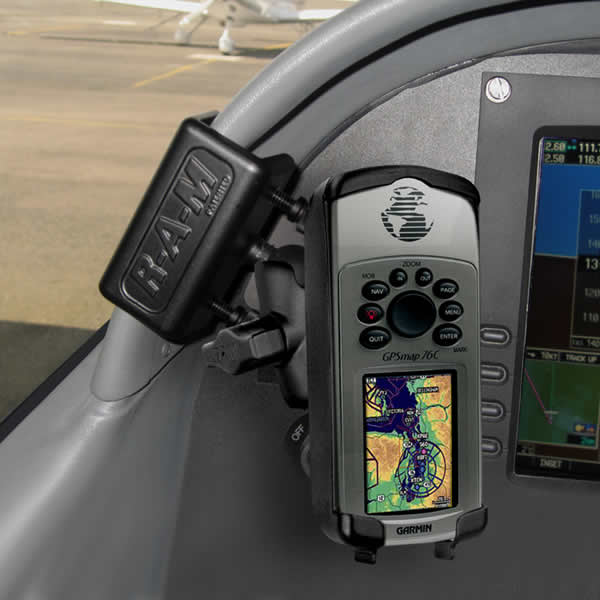

The RAM-B-177-GA14 Garmin GPSMAP 76Cx, 76CSx and 96 Series RAM Mount is a Marine Grade Aluminum Mount with a Glare Shield Clamp Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has an adjustment point at the cradle, base and dual arm junction point. With a twist of the arm knob, you can move the Garmin GPSMAP 76C, 76Cx and 96 Series, including the Garmin GPSMAP 76C, 76CS, 76Cx, 76CSx, 96 and 96C, mount to your optimum viewing position.
Garmin GPS Mount Cradle Design:
The RAM-HOL-GA14 Garmin GPSMAP 76C and GPSMAP 96 Series RAM Mount Cradle is a High Strength Plastic Composite Cradle designed specifically to hold the Garmin GPSMAP 76C and GPSMAP 96 Series, including the following GPS units,
- Garmin GPSMAP 76Cx
- Garmin GPSMAP 76CSx
- Garmin GPSMAP 76C
- Garmin GPSMAP 76CS
- Garmin GPSMAP 96
- Garmin GPSMAP 96C
All cables can stay connected to the unit while in the RAM cradle.
The Garmin GPS 72, GPS 76, GPSMAP 76 and GPSMAP 76S WILL NOT fit this cradle. These units require the RAM-HOL-GA6 cradle.
Garmin GPS Mount Cradle Plate:
 The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
Garmin GPS Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Garmin GPS Mount Base Design:
The RAM-B-259U Powder Coated Marine Grade Aluminum U-Channel Clamp Base is designed to mount to the lip edge of a flat surface up to 1'' thick. Popular mounting edges include a car side window edge lip, table edge or glare shield on an airplance.
The base has two plastic bolts that, when tightened, clamp the base to the lip surface. A RAM 1'' diameter rubber ball is connected to the base allowing you to connect a RAM 1'' diamter arm socket and connection plates to create the perfect mount for your application.
Garmin GPS Mount Options:
 To help ensure you have the Garmin GPSMAP 76C, GPSMAP 76Cx, GPSMAP 76CSx and GPSMAP 96 Series Mount you require, take a look at the list of available RAM Garmin GPS mounts on the RAM-HOL-GA14 Series of Garmin GPSMAP 76C, GPSMAP 76Cx, GPSMAP 76CSx and GPSMAP 96 Cradles and Mounts Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-GA14 Garmin GPSMAP 76C, GPSMAP 76Cx, GPSMAP 76CSx and GPSMAP 96 Series Cradle.
|
| RAM Mount GPSMAP 96 96C Series Glare Shield Mount Features & Tips |
Here is a listing we have put together of some of the common GPSMAP 96 96C Series Glare Shield Mount features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Mount Cradle Design: Custom Cradle for Garmin GPSMAP 76C, 76Cx and 96 Series.
- Mount Cradle Material: Black High Strength Composite Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3.0 inches between socket centers.
- Base Type: U-Channel clamp base design to be attached to a aviation glare lip.
- Common Applications:
- Aviation Mounts: Temporary attaching to glare shield.
|
