RAM Mount RAM-B-107-1U Aluminum Humminbird Piranha Screw Down Marine Mount


RAM Mount Humminbird Piranha Screw Down Marine Mount
Additional Images

Customer Images
Share your images and get a
free gpscity.com t-shirt!
Customer Rating: (based on 7 reviews).    Email:  Email the RAM Mount Humminbird Piranha Screw Down Marine Mount page     Print:  Print the RAM Mount Humminbird Piranha Screw Down Marine Mount page
100% of our reviewers recommend this item. See more RAM Mount items.

List Price: $32.56
Our Price: $27.95 (and this item ships for $3.49)
You Save: $4.61 (14%)

Availability:

In Stock.
Ships today, May 29.


Qty:

Model: RAM Mount Humminbird Piranha Screw Down Marine Mount
Part No: RAM-B-107-1U (also RAM-B-107-1)
Condition: Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses)
Price Match: Get an Instant Price Match in about 5 minutes (during business hours).

Learn More with our Instructional Videos

 » See our list of GPS City videos. Visit our Youtube channel.
RAM Medium Arm: Overview (RAM-B-201U) Video
RAM Medium Arm: Overview (RAM-B-201U)
(21,942 views)
RAM Rectangular Plate: Comparison Overview Video
RAM Rectangular Plate: Comparison Overview
(2,142 views)
RAM Round Plate: Overview (RAM-B-202U) Video
RAM Round Plate: Overview (RAM-B-202U)
(8,293 views)
RAM AMPS Hole Pattern: Explained Video
RAM AMPS Hole Pattern: Explained
(8,035 views)
RAM Mount Plate: Overview (RAM-B-347) Video
RAM Mount Plate: Overview (RAM-B-347)
(4,910 views)

RAM Mount Sub-Component Breakdown

Here are the sub-component parts that make up this item:

Humminbird Piranha Plate with 1 inch Ball RAM-B-107-1BU
+
Medium Arm B-Socket RAM-B-201U
+
Round Plate with 1 inch Ball RAM-B-202U


What's Included In The Box?

The RAM Mount Humminbird Piranha Screw Down Marine Mount ships with the following items included:


Product Information

Manufacturer: National Products, Inc Category: All Purpose Mounts Type: GPS Mounts
Model: RAM-B-107-1U SKU: RAMB107-1 UPC: 793442110726
Announced: November 30, 1999 First Shipped: August 27, 2003 Weight: 0.600 lbs.

Manufacturer Description

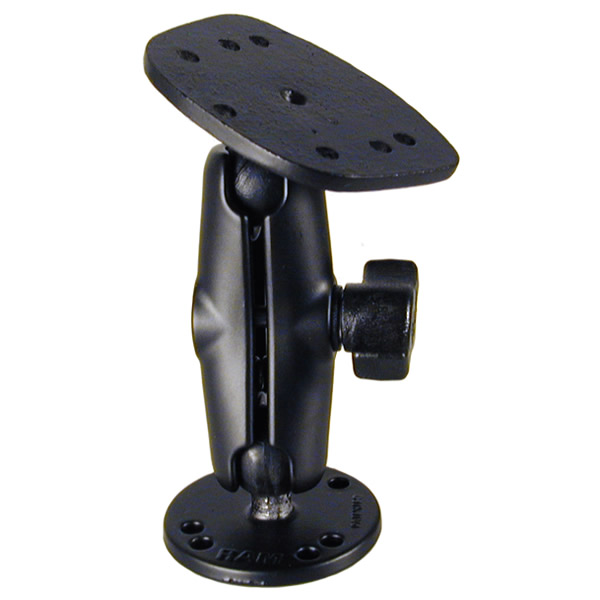

The RAM-B-107-1 Humminbird and Eagle Series RAM Mount is a Marine Grade Aluminum Mount with a Flat Surface Screw Down Base and RAM Connection Plate. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle plate and base. With a twist of the arm knob, you can move the Humminbird and Eagle marine mount to your optimum viewing position.

Humminbird and Eagle Mount Options:

To help ensure you have the Humminbird and Eagle GPS Mount you require, take a look at the list of available RAM Mounts on the RAM-B-107-1B Series of Humminbird/Eagle Cradles and Mounts Page. Here you can select from flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-B-107-1B Himmingbird and Eagle Cradle Plate.

Humminbird and Eagle Mount Cradle Plate:

The RAM-B-107-1B Humminbird and Eagle Cradle is a Marine Grade Aluminum Plate with 1.0 inch B Size Ball. The plate connects to the underside of select Humminbird Piranah MAX and Eagle Cuda unit mounts.

The RAM-B-107-1B plate end connects to, and is not limited to, the following models:
  • Humminbird Piranha MAX 20
  • Humminbird Piranha MAX 15
  • Humminbird Piranha MAX 10
  • Eagle Cuda 240i
  • Eagle Cuda 240
  • Eagle Cude 168
  • Eagle Cuda 128
  • Eagle FishEasy 320C
  • Eagle FishEasy 240


Humminbird and Eagle Mount Arm Design:


The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).

Humminbird and Eagle Mount Base Design:


The RAM-B-202 RAM Mount Marine Grade Aluminum Screw Down Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 2.5 inch diameter Plate. The plate has pre-drilled holes in the base plate, including the universal AMPS hole pattern. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-202 Design Drawings (pdf file).

Mount Base Mounting Solutions:

Mounting hardware is NOT included with the purchase of the RAM-B-202. A semi-permanent solution for mounting this base is by using the RAM double sided adhesive disk (RAM-202PSA). The disk will hold the RAM-B-202 base in many different locations without screws.


Features & Tips

Here is a listing we have put together of some of the common

Humminbird Piranha Screw Down Marine Mount features

, along with a few user tips that you may find of help for this particular item.
  • Warranty: Manufacturer's Life Time Warranty.
  • Cradle Plate Design: Plate that connects to the bottom of the device mount.
  • Cradle Material: Black Powder Coated Marine Grade Aluminum.
  • Mount Material: Black Powder Coated Marine Grade Aluminum.
  • Mount Ball Size: RAM 1 inch Solid Rubber Ball.
  • Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
  • Arm Type: RAM Arm with Dual 1 inch Sockets.
  • Arm Length: Standard length of 3 inches between socket centers.
  • Base Type: Round 2.5 inch diameter plate design to be bolted to a flat surface.
  • Common Applications:
    • Marine Mounts: Attaching to boat dash or flat surface with hardware.
