RAM Mount RAM-B-107U Aluminum Humminbird Screw Down Medium Marine Mount 1 inch Ball


RAM Mount Humminbird Screw Down Medium Marine Mount
Customer Images
Ram Mount and Hummingbird on Nitro 882 DC by Tony AveryRAM Kayak Mount for Eagle Fish Finder by Chuck
Share your images and get a
free gpscity.com t-shirt!
Customer Rating: (based on 10 reviews).    Email:  Email the RAM Mount Humminbird Screw Down Medium Marine Mount page     Print:  Print the RAM Mount Humminbird Screw Down Medium Marine Mount page
100% of our reviewers recommend this item. See more RAM Mount items.

List Price: $34.41
Our Price: $28.95 (and this item ships for $4.99)
You Save: $5.46 (16%)

Availability:

In Stock.
Ships today, May 29.


Qty:

Model: RAM Mount Humminbird Screw Down Medium Marine Mount
Part No: RAM-B-107U (also RAM-B-107)
Condition: Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses)
Price Match: Get an Instant Price Match in about 5 minutes (during business hours).

Learn More with our Instructional Videos

 » See our list of GPS City videos. Visit our Youtube channel.
RAM Medium Arm: Overview (RAM-B-201U) Video
RAM Medium Arm: Overview (RAM-B-201U)
(21,942 views)
RAM Rectangular Plate: Comparison Overview Video
RAM Rectangular Plate: Comparison Overview
(2,142 views)
RAM Round Plate: Overview (RAM-B-202U) Video
RAM Round Plate: Overview (RAM-B-202U)
(8,293 views)
RAM AMPS Hole Pattern: Explained Video
RAM AMPS Hole Pattern: Explained
(8,035 views)
RAM Mount Plate: Overview (RAM-B-347) Video
RAM Mount Plate: Overview (RAM-B-347)
(4,910 views)

RAM Mount Sub-Component Breakdown

Here are the sub-component parts that make up this item:

Humminbird Plate with 1 inch Ball RAM-B-107BU
+
Medium Arm B-Socket RAM-B-201U
+
Round Plate with 1 inch Ball RAM-B-202U


What's Included In The Box?

The RAM Mount Humminbird Screw Down Medium Marine Mount ships with the following items included:


Product Information

Manufacturer: National Products, Inc Category: All Purpose Mounts Type: GPS Mounts
Model: RAM-B-107U SKU: RAMB107 UPC: 793442101076
Announced: November 30, 1999 First Shipped: January 20, 2003 Weight: 0.800 lbs.

Manufacturer Description

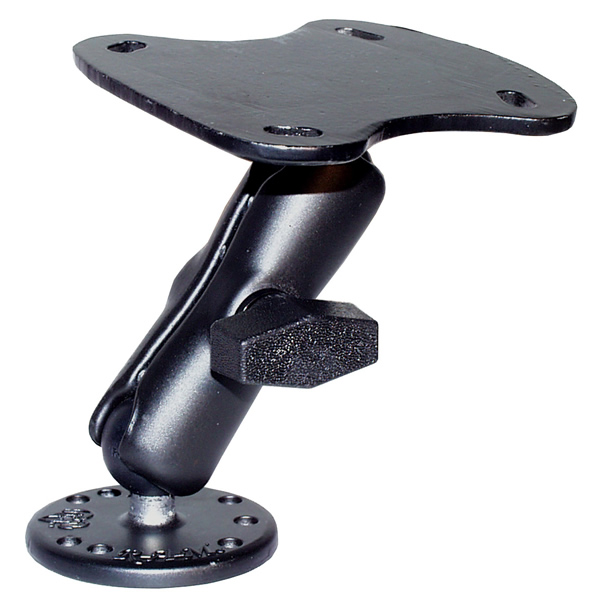

The RAM-B-107 Humminbird and Apelco Series RAM Mount is a Medium Marine Grade Aluminum Mount with a Flat Surface Screw Down Base and RAM Connection Plate. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle plate and base. With a twist of the arm knob, you can move the Humminbird and Apelco marine mount to your optimum viewing position.

Humminbird Mount Options:

To help ensure you have the Humminbird GPS Mount you require, take a look at the list of available RAM Mounts on the RAM-B-107B Series of Humminbird Cradles and Mounts Page. Here you can select from flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-B-107B Himmingbird Cradle Plate.

Humminbird Mount Cradle Plate:

The RAM-B-107B Humminbird Cradle is a Marine Grade Aluminum Plate with 1.0 inch B Size Ball. The plate connects to the underside of select Humminbird Marine GPS mounts. For a layout of the plate hole spacing, take a closer look with the RAM-107B Design Drawings in PDF. (Please note that the ball size shown 1.5 inch in diameter, not 1.0 inch as per the RAM-B-107B)

The RAM-107B plate connects to, and is not limited to, the following models:
  • Humminbird 500 Series
  • Humminbird 300 Series
  • Humminbird 100 Series
  • Humminbird Matrix Series (excluding Matrix 97)
  • Raymarine Apelco Fishfinder with matching hole pattern
Note: This plate is also available with a 1.5 inch C Size Ball (RAM-107B) if you are looking for a larger sized mount for the heavier weight devices.

Humminbird Mount Arm Design:


The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).

Humminbird Mount Base Design:


The RAM-B-202 RAM Mount Marine Grade Aluminum Screw Down Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 2.5 inch diameter Plate. The plate has pre-drilled holes in the base plate, including the universal AMPS hole pattern. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-202 Design Drawings (pdf file).

Mount Base Mounting Solutions:

Mounting hardware is NOT included with the purchase of the RAM-B-202. A semi-permanent solution for mounting this base is by using the RAM double sided adhesive disk (RAM-202PSA). The disk will hold the RAM-B-202 base in many different locations without screws.


Features & Tips

Here is a listing we have put together of some of the common

Humminbird Screw Down Medium Marine Mount features

, along with a few user tips that you may find of help for this particular item.
  • Warranty: Manufacturer's Life Time Warranty.
  • Cradle Plate Design: Plate that connects to the bottom of the device mount.
  • Cradle Material: Black Powder Coated Marine Grade Aluminum.
  • Mount Material: Black Powder Coated Marine Grade Aluminum.
  • Mount Ball Size: RAM 1 inch Solid Rubber Ball.
  • Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
  • Arm Type: RAM Arm with Dual 1 inch Sockets.
  • Arm Length: Standard length of 3 inches between socket centers.
  • Base Type: Round 2.5 inch diameter plate design to be bolted to a flat surface.
  • Common Applications:
    • Marine Mounts: Attaching to boat dash or flat surface with hardware.
