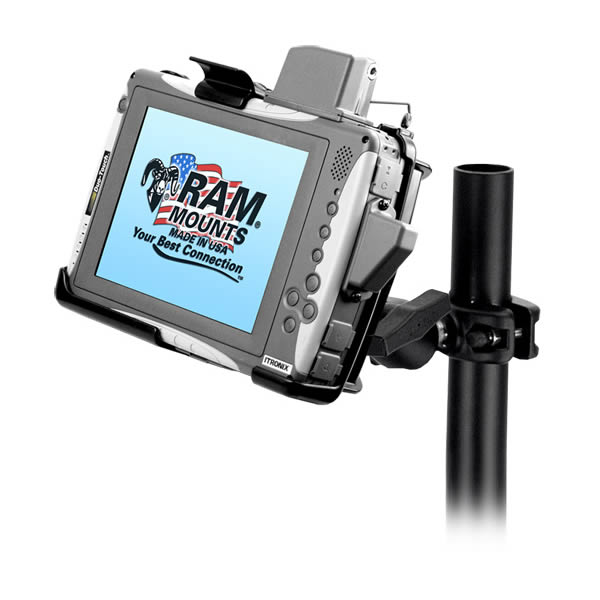

The RAM-271-ITR1 RAM Mount Marine Grade Aluminum Round Pole Clamp Mount consists of the 1.5 inch diameter ball and socket system with RAM Plastic Cradle for the Itronix Duo Touch Tablet PC.
Mount Base Design:
 The RAM-271-12 RAM Mount Marine Grade Aluminum Round Pipe Clamp Base, with 1.5 inch diameter Rubber Ball, connects to a pipe tubing diameter in the range of 1 1/4 to 1 7/8 inches. To connect the base, simply place the two halves around the pipe to be mounted and thread the bolts through the base holes. Now tighten the two screws equally at the sides of the round clamp base, careful not to over tighten.
Mount Arm Design:
 The RAM Mount Dual Socket Arm (RAM-201) is a C Size 1.5 inch diameter Ball Dual Socket Arm, made of Marine Grade Aluminum. The arm is 4.63 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends for moving around a connected 1.5 inch diameter Ball end.
Mount Cradle Design:
The RAM-HOL-ITR1 High Strength Plastic Cradle is designed to hold the Itronix Duo Touch ix325 Mobile Tablet Computer. This custom cradle has a four (4) hole AMPS patten on the back for connecting to the RAM-202 Mounting Plate with 1.5" Ball, found on the top of this mount.
|
