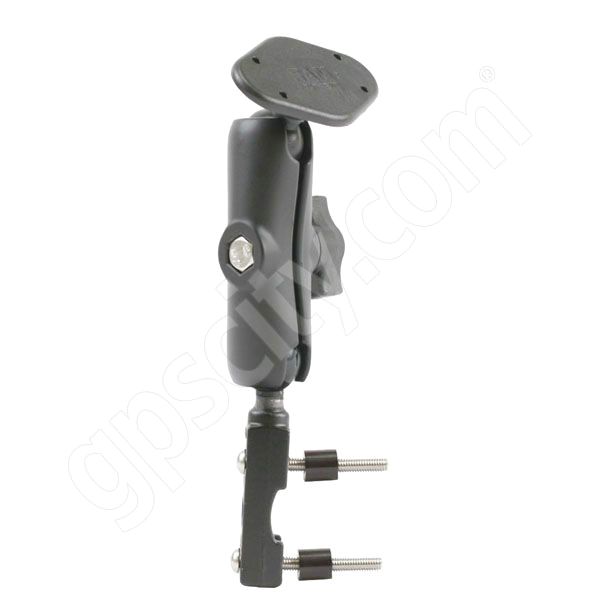

The RAM-B-174-LO4B RAM Mount Marine Grade Aluminum Motorcycle Brake/Clutch Base Mount consists of the 1 inch diameter RAM ball and socket system with RAM Plastic CPlate Connector for the Lowrance iWay 500C.
Mount Cradle Design:
The RAM-HOL-LO4B RAM Mount Plastic Male Ezy-Mount Plate Connector is designed to snap into the Female Ezy-Mount Connector found on the back on the following Lowrance GPS units: All cables can stay connected to the unit while in the RAM cradle.
Mount Arm Design:
 The RAM Mount Dual Socket Arm (RAM-B-201) is a B Size 1 inch Ball Dual Socket Arm, made of Marine Grade Aluminum. The arm is 3 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends.
Mount Base Design:
 The RAM-B-309-7 RAM Mount Motorcycle Kit Base can mount to either the clutch/ brake reservoir or directly to a round handle bar rail. The base is constructed of marine grade aluminum with an integrated 1 inch diameter rubber ball, hardware for rail mounting and both standard and metric mounting bolts for motorcycle reservoir mounting. The zinc coated metal u-bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 1/2 to 1.25 inches.
The base connects to the left or right side of your handlebar clutch/brake reservoir on the Honda Goldwing and other select motorcycles or you can connect directly to your handlebars with the u-bolt hardware. To see if this base will work with your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94 inches and a maximum of 1.58 inches.
|
