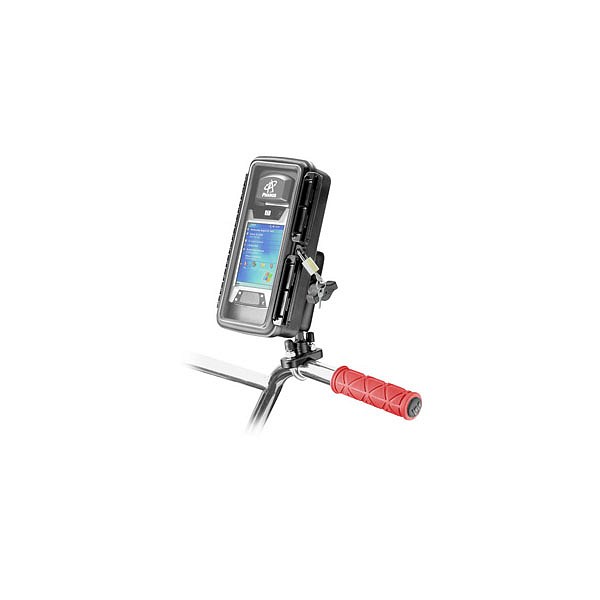

The RAM-B-149Z-AQ1 RAM Mount Marine Grade Aluminum Motorcycle Handlebar Mount with Zinc Coated U-Bolt Base consists of the 1 inch diameter RAM ball and socket system with RAM Aqua Box 1 Large WaterProof Box.
Mount Base Design:
The RAM-B-231Z RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Zinc Coated metal U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.
To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black rubber covers over the exposed ends of the u-bolt.
Note: If you are looking to use this mount in the elements, we suggest the RAM-B-231 Stainless Steel U-Bolt Mount.
Mount Arm Design:
The RAM Mount Dual Socket Arm (RAM-B-201) is a B Size 1 inch Ball Dual Socket Arm, made of Marine Grade Aluminum. The arm is 3 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends.
Mount Cradle Design:
The RAM Mount RAM-HOL-AQ1 High Strength Plastic Aqua Box 1 Large Cradle is designed to hold a large number of different kinds of electronic devices. The Aqua Box 1 cradle is a waterproof box with a clear Flex-Lens allowing you to press and operate the buttons of your device, when in the Aqua Box.
Using the Cradle:
The face of the Aqua Box 1 is a door, allowing you to place your electronic device in the cradle. If required, you can lock the box, with a small padlock, once closed. Inside the RAM Aqua Box are padded sheets enabling you to place your electronic device in the box firmly and securely. You can punch out the back of the Aqua Box to allow cables you be connected to you device, while maintaining a waterproof environment.
Aqua Box 1 Internal Dimensions: 3.25 W x 8.25 H x 2.81 D inches
