||RAM Mount Locking Suction with Long Arm Diamond Assembly
||RAM-B-166U-C (also RAM-B-166-C)
||Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses)
||Get a Quick Price Match for this item (during business hours).
|We have 4 videos for this item. We handcraft videos daily to help you learn more about the functionality of the items we sell. View a list of the GPS City videos. Visit our Youtube channel. Suggest a video via our feedback form.|
Questions and Answers (Q&As)
|Got a question about the |
RAM Mount Locking Suction with Long Arm Diamond Assembly? Click this link to enter your question. No login required. Our tech staff moderates this Q&A and will typically respond within 24 hours (72 hours if a weekend). Visitors are also welcome to chime in at your convenience.
There are currently no Q&A's posted for this item. Feel free to post a question you have about this item.
|Here are the sub-component parts that make up the Locking Suction with Long Arm Diamond Assembly:|
Here are the top accessories for this item. View the complete accessory list for this item.
GPS City Super Grip Dashboard Friction Mount Base
RAM Mount Black Rose Adhesive Plate for Suction Cups
RAM Mount Black Large Adhesive Plate for Suction Cups
RAM Mount Clear Large Adhesive Plate for Suction Cups
RAM Mount RAM-A-CAN II Vehicle Cup Flat Surface Base
What's Included In The Box?
|The RAM Mount Locking Suction with Long Arm Diamond Assembly ships with the following items included:|
||National Products, Inc
||All Purpose Mounts
||November 30, 1999
||February 18, 2003
Gallery of Customer Images
|Customer submitted images of the RAM Mount Locking Suction with Long Arm Diamond Assembly in action. You can also view our entire gallery or add your own gallery item. Special limited time offer - get a free t-shirt with every approved submission with pictures.|
|» Arm Size Differences|
|by Jordan on March 19, 2008 6,614 views
Ever wondered what the actual size difference between the 1" ball size arm's really looks like? Well wonder no more! In the following four pictures you will see the difference between the three sizes in an Infiniti G35, right next to the main gauge … (view more)
|View all reviews. Or click here to Add Your Own Review. It's quick and easy. No login required.|
|Most recent customer reviews. (View all 8 reviews for this item.)|
Written by Justin
December 7, 2012
RECOMMENDEDOrdered two RAM Mount Universal Tablet Mount Tab-Tite Cradle iPad RAM-HOL-TAB3U to hold full sized iPads (3rd and 4t … More
•Pros: good suction, high build quality
•Cons: would like to have set screw for each ball joint
9 viewers found this helpful.
Written by Carol
June 27, 2011
BEST CRADLE MOUNTThis mount is the strongest I have ever used. … More
•Pros: very sturdy
24 viewers found this helpful.
Written by Dan
Cherry Hill, NJ
June 14, 2011
DOES WHAT I NEEDI needed the long arm to position my tall -- most GPS units for automotive use are wide -- GPS well. It works. … More
29 viewers found this helpful.
Written by Jim
September 14, 2010
RAM LOCKING MOUNTThe assambly works very good. … More
42 viewers found this helpful.
Written by Dick
August 17, 2010
EXPANDING CAPABILITYJust adding parts to give me more flexibility with my toys.. … More
45 viewers found this helpful.
RAM Mount Locking Suction Cup with 1.0 inch Ball Metal Plate
RAM Mount Locking Suction Base with Plastic 1 inch Ball Plate
| || || || |
RAM Mount 4 inch dia Suction with Standard Arm Diamond Assembly
RAM Mount Plastic Cradle Plate Dual Lite Suction Mount
RAM Mount Cradle Plate Suction Mount RAM-B-166U
RAM Mount Diamond Plate Suction Mount RAP-B-166U
| || |

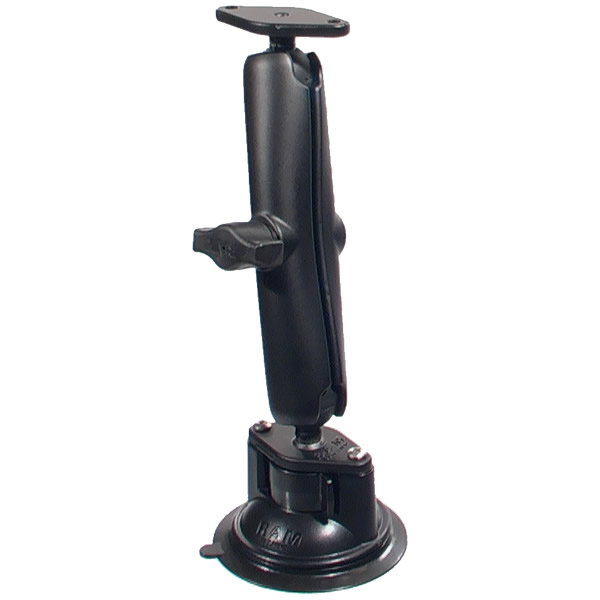

The RAM-B-166-C Universal Long Windshield Suction Cup RAM Mount is a Marine Grade Aluminum Mount with a 3.25 inch Locking Suction Base and Diamond Plate End. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle plate and base. With a twist of the arm knob, you can move the universal locking suction base mount to your optimum viewing position. This system is a universal mounting solution for both RAM and non-RAM designed products. The hole pattern found on the diamond plate will connect to a large variety of third party cradles and mounts.
Note: This mount does not require any drilling for installation.
Universal Mount End Plate Design:
The RAM-B-238 Powder Coated Marine Grade Aluminum Universal Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 1 1/4 x 2 1/2 inch Diamond Plate. The plate has two pre-drilled holes positioned at either tip of the diamond plate. The hole pattern found on the Diamond Plate will connect to a large variety of RAM Mount and third party cradles and mounts, including those with the industry standard AMPS hole pattern. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).
Universal Mount Arm Design:
The RAM-B-201-C RAM Mount Dual Socket Long Arm is a 1 inch B size Ball Dual Socket Arm made of Marine Grade Aluminum. The arm is 5.25 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201C arm, take a closer look with the RAM-B-201C Design Drawings (pdf file).
Universal Mount Base Design:
The RAM-B-224-1 RAM Mount Plastic Locking 3.25 inch diameter Rubber Suction Cup Base, with Marine Grade Aluminum Diamond Plate, is designed to have an extra strong hold on any smooth non-porous surface. With a twist on the locking knob, the suction cup base adheres to any glass╣ or non-porous plastic surface, as found on our Non Skid Base with Plastic Disk and Plastic Adhesive Disk.
Connected to the top of the Suction Cup is a RAM-B-238 RAM Mount Marine Grade Aluminum Diamond Plate with 1 inch diameter Rubber Ball. This plate allows the suction cup to join to an open socket found on the RAM 1 inch diameter socket arms.
╣ Important legal note to California and Minnesota Drivers
Suction Cup Base Mounting Options:We currently offer three alternative solutions for mounting your suction cup mount in a location other than a windshield:
- The Super Grip Non Skid Base with round plastic plate, is a weighted base that can be placed on your dash without an adhesive or drilling. Simply place the base on your dash, or any flat surface and then attach the suction cup to the round plastic plate. This is perfect when you want a temporary mounting solution but the windshield mount just isn't the answer.
- The Suction Cup Adhesive Disk with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply stick the the plate to any flat surface and then attach the suction cup to the plate. This is perfect when you need to attach your suction cup mount to your car dash vertically or horizontally, rather than to your windshield.
- The Suction Cup Drink Cup Holder with round plastic plate, is a great mounting surface to attach the RAM Twist Lock Suction Cup. Simply place the base into any cup holder in your vehicle and then attach the suction cup to the plate found on top. This is perfect when you need to attach your suction cup mount away from the windshield or when you just want the mount off the dash.
Features and Tips
|Here is a listing we have put together of some of the common |
Locking Suction with Long Arm Diamond Assembly features,
along with a few user tips that you may find of help for this particular item.
- Warranty: Manufacturer's Life Time Warranty.
- End Plate Design: Diamond Shape Plate with a hole at either tip.
- End Plate Material: Black Powder Coated Marine Grade Aluminum.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Long length of 5.25 inches between socket centers.
- Base Type: Round 3.25 inch diameter Locking Suction Cup for non-porous surfaces
- Common Applications:
