Additional Images
Customer Images
Share your images and get a
free gpscity.com t-shirt!
|
Not yet rated. Email:
 Print:
See more RAM Mount items. |
| |
| List Price: |
$52.33 |
| Our Price: |
$42.95 (and this item ships for $4.99) |
| You Save: |
$9.38 (18%) |
Availability: |
In Stock.
Ships today, February 15. |
|
| |
| Model: |
RAM Mount Lowrance iFinder H2O Yoke Mount RAM-B-121-LO3U |
| Part No: |
RAM-B-121-LO3U |
| Condition: |
Brand New, Lifetime Manufacturer Warranty (max 3 years on electronics & lenses) |
|
| Price Match: |
Get an Instant Price Match in about 5 minutes (during business hours). |
|
| Learn More with our Instructional Videos (More GPS City videos.
Visit our Youtube channel.) |
RAM Lowrance iFinder Cradle: In Use (RAM-HOL-LO3)
(1,594 views) |
RAM Diamond Plate: Overview (RAM-B-238U)
(20,301 views) |
RAM AMPS Hole Pattern: Explained
(6,618 views) |
RAM Mount Plate: Overview (RAM-B-347)
(3,933 views) |
RAM Medium Arm: Overview (RAM-B-201U)
(20,647 views) |
|
| What's Included In The Box? |
The RAM Mount Lowrance iFinder H2O Yoke Mount RAM-B-121-LO3U ships with the following items included: |
| Product Information |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
GPS Mounts |
| Model: |
RAM-B-121-LO3U |
SKU: |
RAMB121LO3 |
UPC: |
793442903731 |
| Announced: |
November 30, 1999 |
First Shipped: |
August 4, 2004 |
Weight: |
0.894 lbs. |
| Alternative Models For This Item |
RAM Mount Lowrance iFinder H2O Yoke Mount RAM-B-121-LO3U |
RAM Mount Lowrance iFinder H2O Flip Yoke Mount RAM-B-125-LO3U | | | | |
|
| RAM Mount Lowrance iFinder H2O Yoke Mount RAM-B-121-LO3U Description |

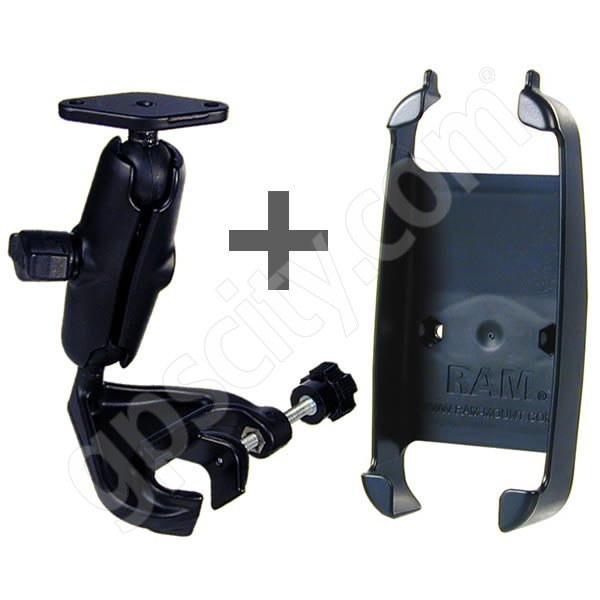

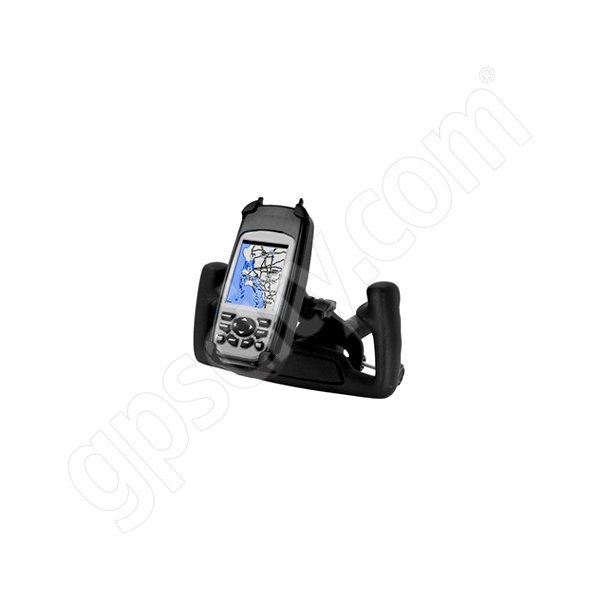

The RAM-B-121-LO3 Lowrance Airmap 600 and iFinder H2O Series Yoke Clamping Aviation RAM Mount is a Marine Grade Aluminum Mount with a Temporary Clamp Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Lowrance Airmap 600 and iFinder H2O Series mount to your optimum viewing position.
Note: This mount does not require any drilling for installation.
Lowrance GPS Mount Options:
 To help ensure you have the Lowrance H20, Hunt and AirMap Mount you require, take a look at the list of available RAM Lowrance GPS mounts on the RAM-HOL-LO3 Series of Lowrance H20/Hunt Cradles and Mounts Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-LO3 Lowrance H20 and Hunt Series Cradle.
Lowrance GPS Mount Cradle Design:
 The RAM-HOL-LO3 Lowrance H2O and Hunt Series RAM Mount Cradle is a High Strength Plastic Composite Cradle designed specifically to hold the Lowrance H2O/Hunt Series, including the following GPS units,
- Lowrance iFinder H2O Series
- Lowrance iFinder H2O C Series
- Lowrance iFinder Hunt Series
- Lowrance iFinder Hunt C Series
- Lowrance iFinder Expedition C Series
- Lowrance iFinder Explorer Series
- Lowrance iFinder PhD Series
- Lowrance iFinder Map and Music Series
- Lowrance iWay 100C Automotive GPS
- Lowrance Airmap 600C Aviation GPS
All cables can stay connected to the unit while in the RAM cradle.
Lowrance GPS Mount Cradle Plate Design:
 The RAM-B-202 RAM Mount Marine Grade Aluminum Round Plate is designed to connected to the back of cradles with an AMPS hole pattern. The round plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-202 Design Drawings (pdf file).
Lowrance GPS Mount Arm Design:
 The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).
Lowrance GPS Mount Base Design:
 The RAM-B-121B RAM Mount Powder Coated Marine Grade Aluminum Yoke Clamp Mount Base fits a rail diameter from 5/8 inch to a maximum of 1 1/4 inches. The 1 inch rubber ball is at a right angle to the plane of the mount so when connected to a rail, the ball sits parallel to the rail. To mount the base, simply place the yoke clamps around the rail and then screw the large knob at the end of the threaded rod. The hand tightened clamp makes this the perfect mounting system for rental planes and unusual shaped motorbike rails.
NOTE: The rail does not need to be perfectly round to mount this base.
|
| RAM Mount Lowrance iFinder H2O Yoke Mount RAM-B-121-LO3U Features & Tips |
Here is a listing we have put together of some of the common Lowrance iFinder H2O Yoke Mount RAM-B-121-LO3U features,
along with a few user tips that you may find of help for this particular item. | - Warranty: Manufacturer's Life Time Warranty.
- Cradle Design: Custom Cradle for Lowrance Airmap 600 and iFinder H2O.
- Cradle Material: High Strength Plastic.
- Mount Material: Black Powder Coated Marine Grade Aluminum.
- Mount Ball Size: RAM 1 inch Solid Rubber Ball.
- Pivot Point Design: RAM Patented RAM 1 inch Rubber Ball and Socket Joint.
- Arm Type: RAM Arm with Dual 1 inch Sockets.
- Arm Length: Standard length of 3 inches between socket centers.
- Base Type: Yoke Clamp Base fits rails with diameter from 5/8 inch to a maximum of 1 1/4 inch.
- Common Use: Yoke Aviation Mounting, Temporary rail mounting.
|
