Home > RAM Mounts > GPS Mounts

RAM Mount RAP-B-166NS-2-LO8 Plastic Lowrance XOG Series Grip-Lock Suction Cup Non Skid Mount


RAM Mount Lowrance XOG Grip-Lock Suction Cup Non Skid Mount
Customer Images
Share your images and get a
free gpscity.com t-shirt!
Not yet rated.    Email:  Email the RAM Mount Lowrance XOG Grip-Lock Suction Cup Non Skid Mount page     Print:  Print the RAM Mount Lowrance XOG Grip-Lock Suction Cup Non Skid Mount page
See more RAM Mount items.


This item has been discontinued by the manufacturer.

Accessories may still be available for this item. Click to view accessories.

GPS City recommended alternative:


Vendor: RAM Mount
Name: Lowrance XOG Dashboard Mount RAP-B-279-2-LO8
Part No: RAP-B-279-2-LO8
SKU: RAPB279-2LO8

View the RAM Mount Lowrance XOG Dashboard Mount RAP-B-279-2-LO8.


RAM Mount Sub-Component Breakdown
Here are the sub-component parts that make up this item:

Lowrance XOG Cradle RAM-HOL-LO8U
+
Cradle Plate Suction Mount Lite RAP-B-166-2U
+
Non Skid Nav-Mat for Suction Cup Mount UFM-100-BL


What's Included In The Box?

The RAM Mount Lowrance XOG Grip-Lock Suction Cup Non Skid Mount ships with the following items included:


Product Information
Manufacturer: National Products, Inc Category: All Purpose Mounts Type: GPS Mounts
Model: RAP-B-166NS-2-LO8 SKU: RAPB166NS-2LO8 UPC:
Announced: January 24, 2008 First Shipped: February 29, 2008 Weight: 3.525 lbs.

RAM Mount Lowrance XOG Grip-Lock Suction Cup Non Skid Mount Description

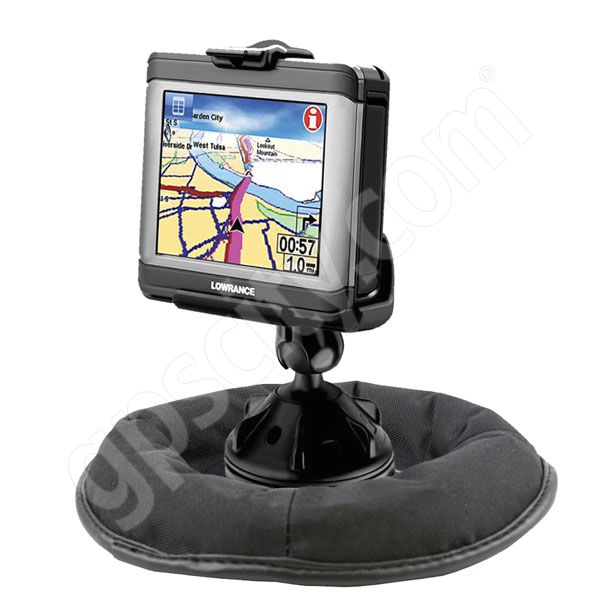

The RAP-B-166NS-2-LO8 Lowrance XOG Series Automotive RAM Mount is a High Strength Plastic Composite Mount with Locking Suction Base AND Weighted Non-Skid Sub-Base. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system, with Grip-Lock knob, that has adjustment point at the cradle and base. With a twist of the Grip-Lock arm knob, you can move the Lowrance XOG Series mount to your optimum viewing position.

Note: This mount does not require any drilling for installation.

Lowrance GPS Mount Cradle Design:


The RAM-HOL-LO8 RAM Mount High Strength Plastic Cradle is designed to hold Lowrance Automotive GPS, including the following,
  • Lowrance XOG
All cables can stay connected to the unit while in the RAM cradle.

Lowrance GPS Mount Cradle Plate:

The RAP-B-238 RAM Mount High Strength Plastic Composite Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file) (Note: the Plastic RAP-B-238 Plate is thicker than the RAM-B-238 Design Drawings shown).

Lowrance GPS Mount Arm Design:

The RAP-B-201-1 Twist Grip RAM Mount Dual Socket Arm is a 1 inch B size Ball Socket Arm made of High Strength Plastic. The arm is 2.0 inches long between socket centers. The side of the arm includes a round grooved tightening nut which allows you to open and close the socket ends.

Lowrance GPS Mount Base Design:

This unique mount design has two different mounting base solutions. You can either mount your device directly on your car dashboard using the Non-Skid Base, or attach the mount to you windshield, or any other non-porous surface.
  • Non Skid Base: The Weighted Non Skid Friction Sub-Base Solution includes a plastic round plate giving you a non porous surface for attaching the included RAM Mount Suction Cup Base. The Non Skid base consists of a weighted core with a anti-skid underside. The Non Skid base contours to the top of your dashboard allowing it to work on uneven and textured sufaces. This base DOES NOT require any fastening to the mounting surface.
  • Suction Cup Base: The RAM Mount Suction Cup Base Solution is designed to have an extra strong hold on any smooth non-porous surface. With a twist of the outside edge, the suction cup base adheres to any glass¹ or non-porous plastic surface. Built into the top of the Suction Cup is a 1 inch diameter Rubber Ball. This ball allows the suction cup to join to an open socket found on any of the RAM 1 inch diameter socket arms.
¹ Important legal note to California and Minnesota Drivers

Lowrance GPS Mount Options:


To help ensure you have the Lowrance XOG GPS Mount you require, take a look at the list of available RAM Lowrance GPS mounts on the Lowrance XOG Mount Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-LO8 Lowrance XOG GPS Cradle.


RAM Mount Lowrance XOG Grip-Lock Suction Cup Non Skid Mount Features & Tips
Here is a listing we have put together of some of the common

Lowrance XOG Grip-Lock Suction Cup Non Skid Mount features

, along with a few user tips that you may find of help for this particular item.
  • Warranty: Manufacturer's Life Time Warranty on all pieces other than the Non Skid Base.
  • Cradle Design: Custom Cradle for Lowrance XOG Series.
  • Cradle Material: Black High Strength Composite Plastic.
  • Mount Material: Black High Strength Plastic Composite and Rubber Locking Suction Cup.
  • Mount Ball Size: RAM 1 inch Solid Rubber Ball.
  • Pivot Point Design: RAM Patented 1 inch Rubber Ball and Socket Joint.
  • Arm Type: RAM Arm with Dual 1 inch Sockets and Grip-Lock Knob.
  • Arm Length: Standard length of 3 inches between socket centers.
  • Base Type: Weighted Non-Skid Friction Base for non-destructive mounting AND Locking Suction Cup for non-porous surfaces
  • Common Applications:
    • Vehicle Mounts: Attaching to vehicle windshield
